Description

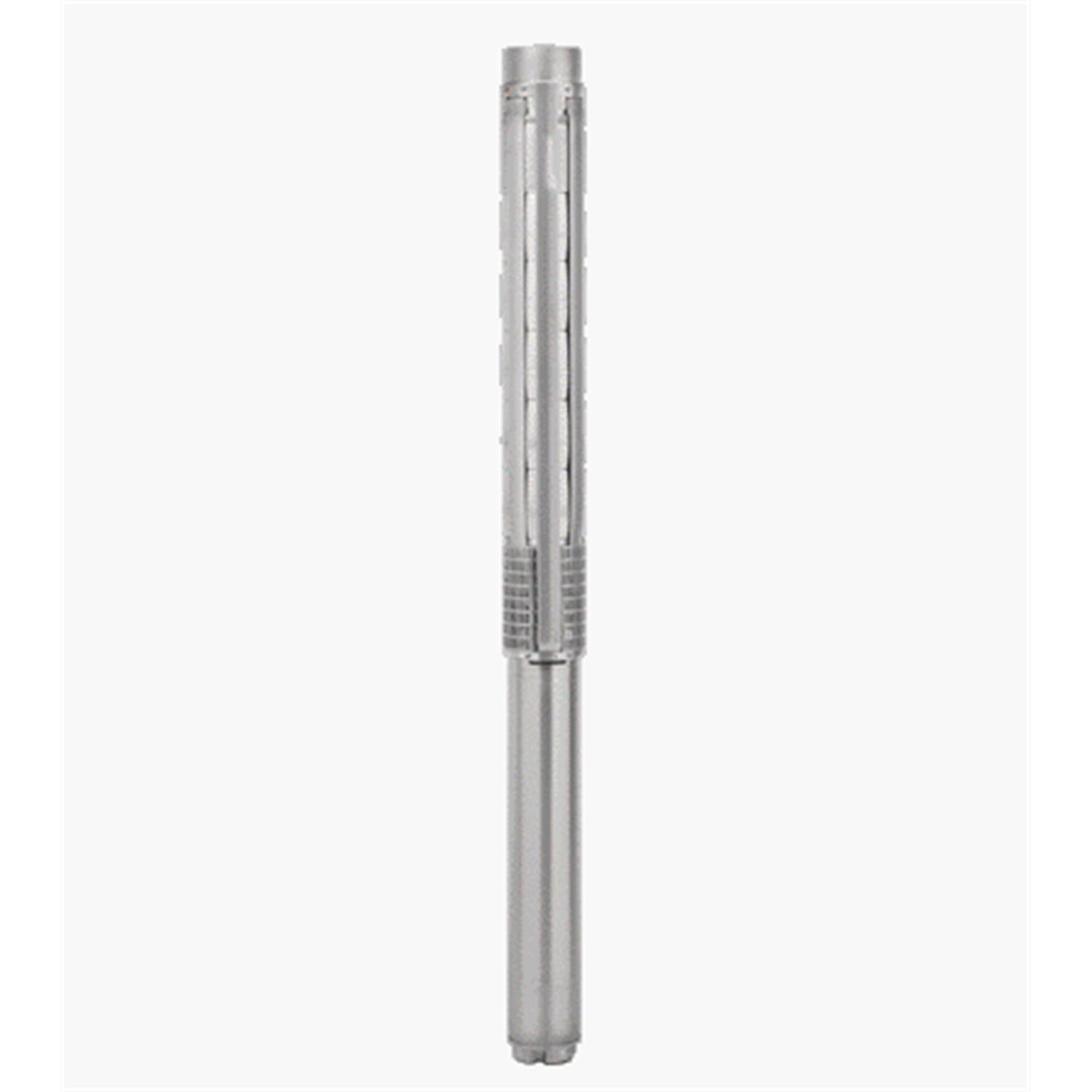

The Grundfos 92673224 (SPE385S100-1) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 405US gpm at 65.62ft. Rated 410-480V, 3.0-Phase, 60 Hz. Applications include Municipal wells, Rotor & spray irrigation, Ground water transfer and more.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 92673224 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Power | 10HP |
| Voltage | 410-480V |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 1650-3600rpm |
| Pump Speed | 3600rpm |
| Full Load Current | 14.4A |
| Motor Type | PM |
| Motor Efficiency | 89.9% |
| Insulation Class | F |
| Protection Class (IP) | IP68 |
| Nominal Flow | 405US gpm |
| Nominal Head | 65.62ft |
| Max Fluid Temperature | 140°F |
| Nominal Pipe Bore | 4inch |
| Pipe Standard | NPT(F) |
| Impeller Material | Stainless steel |
| Approvals / Certifications | CULDWUS, CCSAUS |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 410-480V, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 140°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- Approvals
- CULDWUS,CCSAUS
- Approvals for drinking water
- PROP65
- Built-in motor protection
- NONE
- Connection
- 4 inch
- Curve tolerance
- ISO9906:2012 3B
- Diameter
- 6 inch
- Enclosure class (IEC 34-5)
- IP68
- Frequency
- 3600 rpm at 120 Hz
- Frequency converter
- VFD IPM type required
- Gross weight
- 213.0 lb
- Impeller
- Stainless steel
- Impellers
- NONE
- Insulation
- F
- Insulation class (IEC 85)
- F
- IP Class
- IP68
- Liquid max temp
- 140°F
- Liquid temperature range
- 5 .. 140 °F
- Maximum operating pressure
- 870.23 psi
- Maximum outlet pressure
- 46.41 psi
- Model
- C
- Motor
- Stainless steel
- Motor diameter
- 6 inch
- Motor efficiency at full load 1
- 0.899
- Motor flange design
- Grundfos
- Motor frequency
- 120 Hz
- Motor type
- PM
- Motor version
- T60
- n rpm
- F
- Net weight
- 138.0 lb
- Number of cables
- 1
- Number of poles
- 4
- Number of reduced-diameter impellers
- NONE
- P2 kW
- 10 HP
- Phase
- 3
- Pump
- Stainless steel
- Pump speed on which pump data are based
- 3600 rpm
- Rated current
- 14.4 A
- Rated flow
- 405 US gpm
- Rated head
- 65.62 ft
- Rated power - P2
- 10 HP
- Rated speed
- 1650-3600 rpm
- Rated voltage
- 3 x 410-480 V
- Return valve
- YES
- Sales region
- Namreg
- Service factor
- 1.15
- Shaft
- Product name:SPE385S100-1
- Shaft seal for motor
- SiC/SiC NBR
- Size of connection
- 4 inch
- Stages
- 1
- Start. 1 method
- Direct-on-line (DOL)
- Thermal protec
- external
- Type
- PM
- Type of connection
- NPT(F)
- Valve
- YES
- Version
- T60
- Windings
- Enamelled
