Description

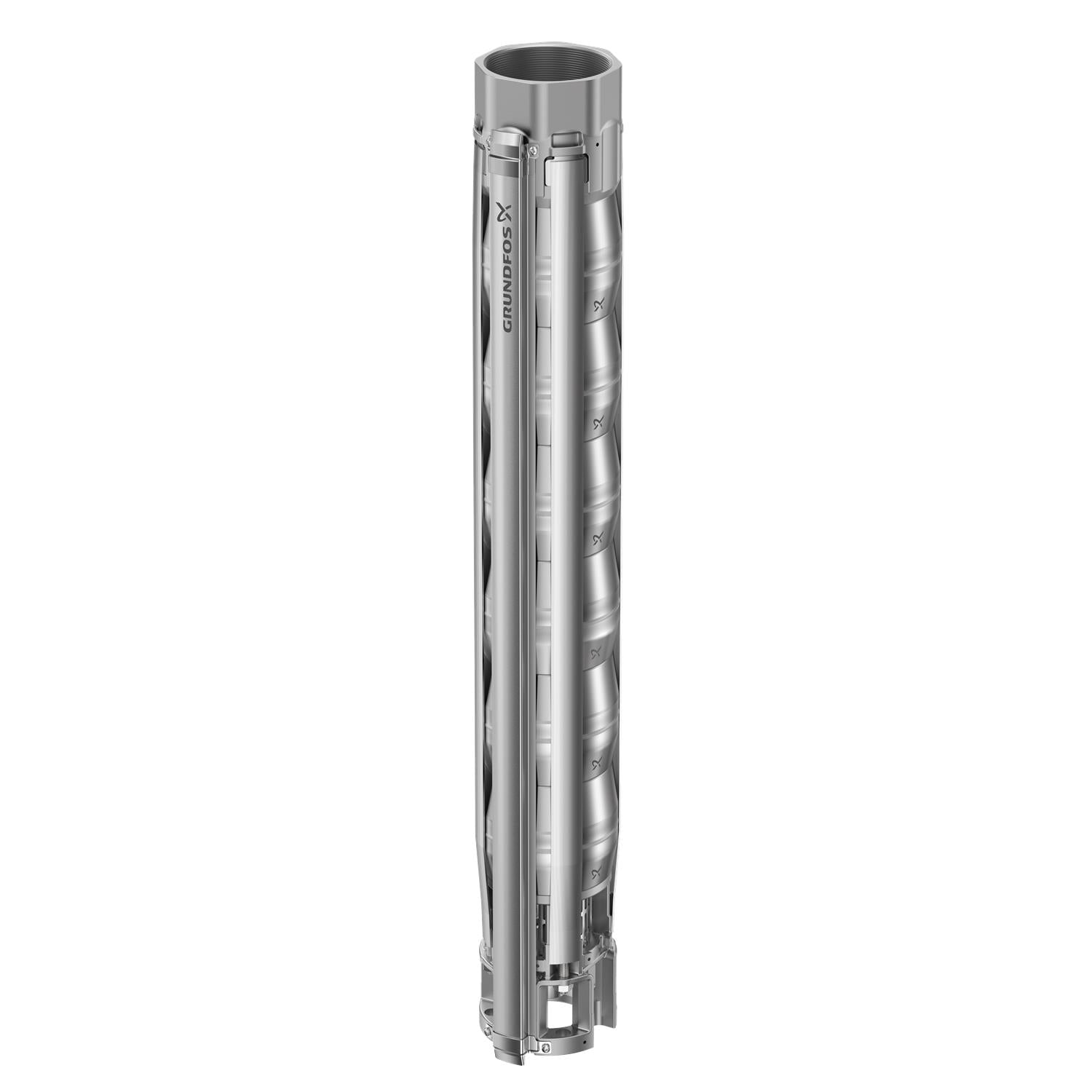

The Grundfos 92720049 (SPE230S250-7) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 242US gpm at 318.3ft. Applications include Municipal wells, Rotor & spray irrigation, Ground water transfer and more.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 92720049 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Frequency | 60 Hz |
| Pump Speed | 3600rpm |
| Nominal Flow | 242US gpm |
| Nominal Head | 318.3ft |
| Max Fluid Temperature | 140°F |
| Nominal Pipe Bore | 4inch |
| Pipe Standard | NPT(F) |
| Impeller Material | Stainless steel |
| Approvals / Certifications | CULDWUS, CCSAUS |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation. |
| Temperature limits | Do not exceed max fluid temperature 140°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- Approvals
- CULDWUS,CCSAUS
- Approvals for drinking water
- PROP65
- Connection
- 4 inch
- Curve tolerance
- ISO9906:2012 3B
- Diameter
- 6.1 in
- DOE Pump Energy Index CL
- 0.92
- Gross weight
- 62.2 lb
- Impeller
- Stainless steel
- Impellers
- NONE
- Liquid max temp
- 140°F
- Liquid temperature range
- 5 .. 140 °F
- Maximum operating pressure
- 870.23 psi
- Minimum borehole diameter
- 6.1 in
- Model
- B
- Motor diameter
- 6 inch
- Motor flange design
- Grundfos
- n rpm
- 3600rpm
- Net weight
- 48.5 lb
- Number of poles
- 4
- Number of reduced-diameter impellers
- NONE
- Pump
- Stainless steel
- Pump speed on which pump data are based
- 3600 rpm
- Rated flow
- 242 US gpm
- Rated head
- 318.3 ft
- Return valve
- YES
- Sales region
- Namreg
- Size of connection
- 4 inch
- Stages
- 7
- Type of connection
- NPT(F)
- Valve
- YES
