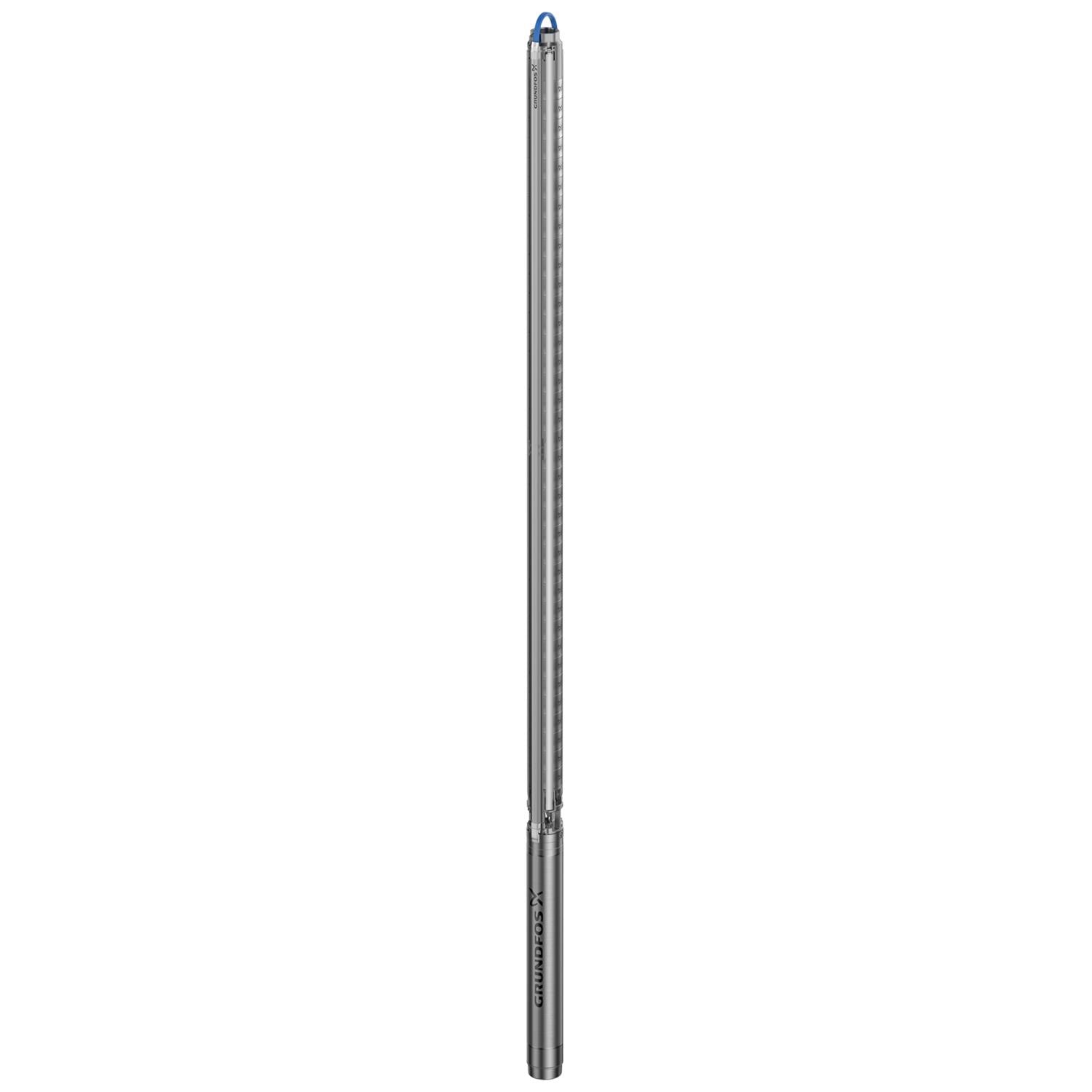

Grundfos 98924273 - SP 7-11
Grundfos 98924273 - SP 7-11
Grundfos 98924273 - SP 7-11
Grundfos 98924273 - SP 7-11
Grundfos 98924273 - SP 7-11
Grundfos 98924273 - SP 7-11

Grundfos 98924273 - SP 7-11

GRUNDFOSSKU: 98924273
Price:
$4,023.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

SP 7-11 | Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. Thepump is suitable for pumping clean, thin, non-agressiveliquids without solid particles or fibers. horizontal and vertical installation. The pump is fitted with a built-in non-return valve. The motor is a 1-phase motor of the cannedtype with a sand shield, liquid-lubricated bearingsand pressure-equalizing diaphragm.

Maximum operating pressure 870.23 psi
Power factor 1 0.93
Type of connection NPT(F)
Rated voltage 1 x 230 V
KVA code F
Starting current 6.1
Liquid temperature range 5 .. 104 °F
Insulation class (IEC 85) F
Built-in motor protection NONE
Net weight 69.9 lb
Rated speed 3450 rpm
Gross weight 73.6 lb
Rated power - P2 3 HP
Size of connection 1 1/2 inch
Maximum outlet pressure 145.04 psi
Enclosure class (IEC 34-5) IP68
Power (P2) required by pump 3 HP
Shaft Product name:SP 7-11
Rated current 17 A
Service factor 1.15
Windings Enamelled
Minimum efficiency index, MEI ≥ 0.7
Motor type MS4000
Motor diameter 4 inch
Environmental approvals WEEE
Minimum borehole diameter 4.13 in
Motor flange design NEMA
DOE Pump Energy Index CL 0.87
Pump speed on which pump data are based 3450 rpm
Stages 11
Approvals WEEE
Rated flow 36.5 US gpm
Approvals for motor CE,EAC,CSACE,EAC,CSA
Model A
Version T40
Diameter 4.13 in
Motor Stainless steel
Approvals for drinking water ACS,DM174
Return valve YES
Rated head 233 ft
Type MS4000
Curve tolerance ISO9906:2012 3B
Motor version T40
Impellers NONE
Valve YES
Connection 1 1/2 inch
Impeller Stainless steel
Number of reduced-diameter impellers NONE
Pump 3 HP
