Description

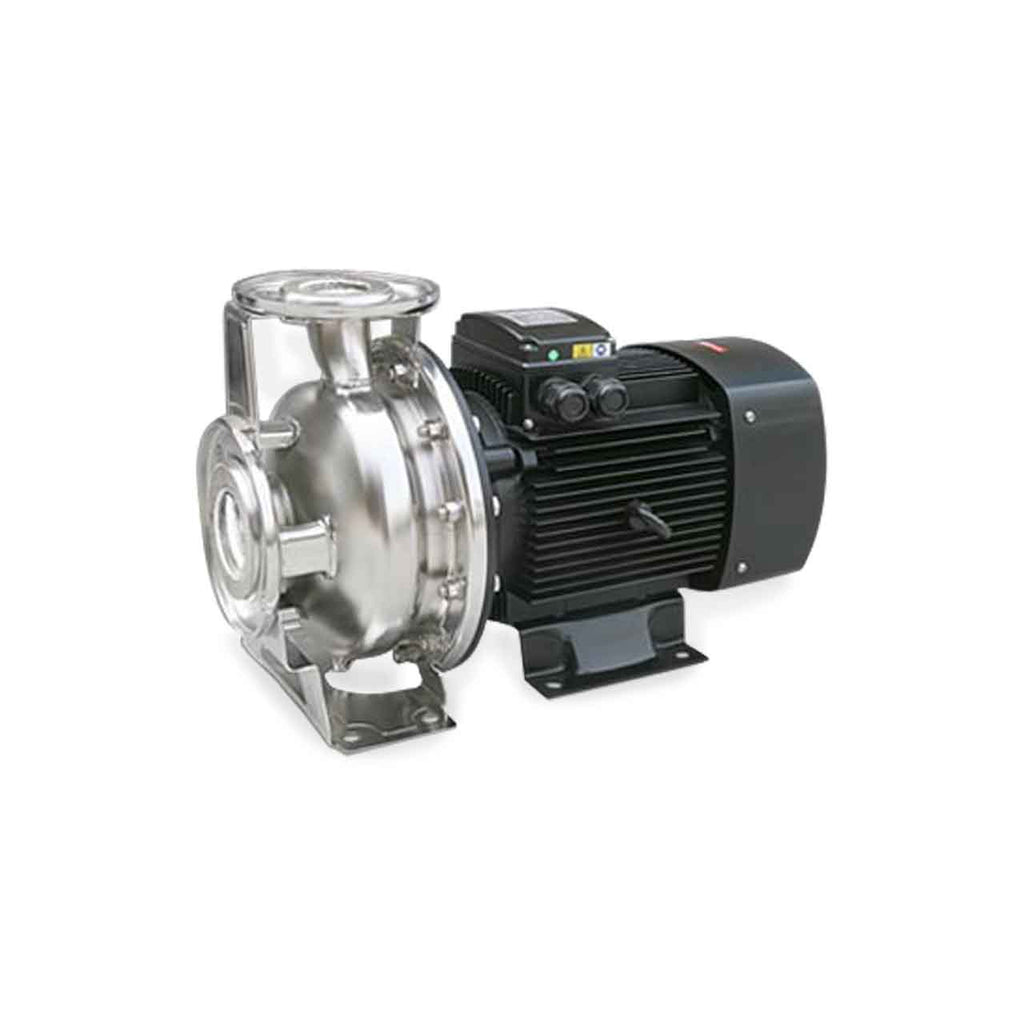

The Barmesa SOX3-50-2 is a 50 HP, 3-Phase, 230V end-suction centrifugal stainless steel pump. These pumps efficiently handle fluid transfer tasks in various industrial, commercial, and municipal environments. Constructed from stainless steel, they are ideal for applications requiring corrosion resistance and hygiene , such as water supply, chemical processing, food and be 1¼", 1½", 2", 2½" and 3" vertical flange 150 lb DIN MAX. LIQUID TEMPERATURE 248 °F (120 °C) MAX. WORKING PRESSURE 145 PSI (10.2 kg/cm²) BODY 304 stainless steel.
End-Suction Centrifugal Design — Industrial Standard
End-suction close-coupled design suits HVAC circulation, water supply, light industrial process, and pressure boosting applications. NEMA-standard motor frame for direct field motor replacement.
Back Pull-Out — Service Without Breaking Piping
Back pull-out design allows impeller, seal, and wear ring service without disconnecting suction or discharge piping — significantly reducing labor time and cost on permanently installed pumps.
Bronze and Cast Iron Construction Options
Available in bronze fitted, all-bronze, and all-iron construction to match your fluid chemistry and service requirements. Multiple seal material options cover water, HVAC, and light chemical applications.
Dynamically Balanced Impeller
Factory-balanced impeller to ISO G6.3 specification minimizes vibration — reducing bearing loads and extending service life on continuous HVAC and water supply duty applications.
Multiple HP Configurations
Available across a wide HP range within each series. All models share casing dimensions and spare parts — changing HP requires only a motor replacement, not repiping or a new pump body.
Barmesa Pumps — Miami, Florida
Barmesa Pumps serves commercial HVAC, industrial process, and water supply markets throughout North America from manufacturing and distribution facilities in Miami, Florida.
| Model Number | SOX3-50-2 |
| Series | SOX series |
| Category | End-Suction Centrifugal Stainless Steel Pumps |
| Horsepower | 50 HP |
| Phase | 3-Phase |
| Voltage | 230V |
| Speed | 3450 RPM |
| Discharge | 1¼", 1½", 2", 2½" and 3" vertical flange 150 lb DIN MAX. LIQUID TEMPERATURE 248 |
| Motor | IE3 premium efficiency, totally enclosed with external ventilation; 60 Hz, 3450 RPM, single phase 230 V and three phase 230/460 V, class F insulation. Built-in thermal protection i |
| Impeller | Design: close type Material: 304 stainless steel |
| Mechanical Seal | Design: mechanical, lubricated by water. Material: silicon carbide stationary part, carbon ring seal and exclusion in the rotating part. elastomer and |
| Seal Plate | 304 stainless steel |
| O-Rings | Buna-N SHAFT SLEEVE 316 stainless steel |
| Hardware | 304 stainless steel |
- DIN type NPT threaded counterflanges in stainless EPDM steel 304. Includes hardware and gaskets. L2 L5 n2-Ø18 4-Ød 4-Ø15 L1 L4 L3 DN2 A2 D2 D4 L a L6 n1-Ø18 H2 DN1 H A1 D1 D3 H1 a1 DIMENSIONS (in) MODEL HP DN1 DN2 A1 A2 D1 D2 D3 D4 n1 n2 a a1 SOX1¼-1.5-2-1 2" 1¼" 1.5 3.9 3 4.9 3.9 6.3 5.5 4 4 3.1 - SOX1¼-1.5-2 2" 1¼" SOX1¼-2-2-1 2" 1¼" 2 3.9 3 4.9 3.9 6.3 5.5 4 4 3.1 - SOX1¼-2-2 2" 1¼" SOX1¼-3-2 3 2" 1¼" 3.9 3 4.9 3.9 6.3 5.5 4 4 3.1 - SOX1¼-4-2 4 2" 1¼" 3.9 3 4.9 3.9 6.3 5.5 4 4 3.3 - SOX1¼-5.5-2 5.5 2" 1¼" 3.9 3 4.9 3.9 6.3 5.5 4 4 3.3 - SOX1¼-7.5-2 7.5 2" 1¼" 3.9 3 4.9 3.9 6.3 5.5 4 4 3.3 1.4 SOX1½-2-2-1 2½" 1½" 2 4.6 3.3 5.7 4.3 7.3 5.7 4 4 3.1 - SOX1½-2-2 2½" 1½" SOX1½-3-2-1 2½" 1½" 3 4.6 3.3 5.7 4.3 7.3 5.7 4 4 3.1 - SOX1½-3-2 2½" 1½" SOX1½-4-2 4 2½" 1½" 4.6 3.3 5.7 4.3 7.3 5.7 4 4 3.1 - SOX1½-5.5-2 5.5 2½" 1½" 4.6 3.3 5.7 4.3 7.3 5.7 4 4 3.1 - SOX1½-7.5-2 7.5 2½" 1½" 4.6 3.3 5.7 4.3 7.3 5.7 4 4 3.9 1.4 SOX1½-10-2 10 2½" 1½" 4.6 3.3 5.7 4.3 7.3 5.7 4 4 3.9 1.4 SOX1½-15-2 15 2½" 1½" 4.6 3.3 5.7 4.3 7.3 5.7 4 4 3.9 1.4 SOX2-4-2 4 2½" 2" 4.65 3.86 5.71 4.92 7.28 6.3 4 4 3.4 - SOX2-5.5-2 5.5 2½" 2" 4.65 3.86 5.71 4.92 7.28 6.3 4 4 3.4 - SOX2-7.5-2 7.5 2½" 2" 4.65 3.86 5.71 4.92 7.28 6.3 4 4 3.9 1.4 SOX2-10-2 10 2½" 2" 4.65 3.86 5.71 4.92 7.28 6.3 4 4 3.9 1.4 SOX2-12.5-2 12.5 2½" 2" 4.65 3.86 5.71 4.92 7.28 6.3 4 4 3.9 1.4 SOX2-15-2 15 2½" 2" 4.65 3.86 5.71 4.92 7.28 6.3 4 4 3.9 1.4 SOX2-20-2 20 2½" 2" 4.65 3.86 5.71 4.92 7.28 6.3 4 4 3.9 1.4 SOX2-25-2 25 2½" 2" 4.65 3.86 5.71 4.92 7.28 6.3 4 4 3.9 1.4 SOX2½-5.5-2 5.5 3" 2½" 5.12 4.65 6.3 5.71 7.87 7.28 8 4 3.9 1.9 SOX2½-7.5-2 7.5 3" 2½" 5.12 4.65 6.3 5.71 7.87 7.28 8 4 3.9 1.9 SOX2½-10-2 10 3" 2½" 5.12 4.65 6.3 5.71 7.87 7.28 8 4 3.9 1.9 SOX2½-12.5-2 12.5 3" 2½" 5.12 4.65 6.3 5.71 7.87 7.28 8 4 3.9 1.9 SOX2½-15-2 15 3" 2½" 5.12 4.65 6.3 5.71 7.87 7.28 8 4 3.9 1.9 SOX2½-20-2 20 3" 2½" 5.12 4.65 6.3 5.71 7.87 7.28 8 4 3.9 1.9 SOX2½-25-2 25 3" 2½" 5.12 4.65 6.3 5.71 7.87 7.28 8 4 3.9 1.9 SOX2½-30-2 30 3" 2½" 5.12 4.65 6.3 5.71 7.87 7.28 8 4 3.9 1.9 SOX2½-40-2 40 3" 2½" 5.12 4.65 6.3 5.71 7.87 7.28 8 4 3.9 1.9 SOX3-15-2 15 4" 3" 5.91 5.12 7.09 6.3 8.66 7.87 8 8 4.9 1.9 SOX3-20-2 20 4" 3" 5.91 5.12 7.09 6.3 8.66 7.87 8 8 4.9 1.9 SOX3-25-2 25 4" 3" 5.91 5.12 7.09 6.3 8.66 7.87 8 8 4.9 1.9 SOX3-30-2 30 4" 3" 5.91 5.12 7.09 6.3 8.66 7.87 8 8 4.9 2.2 SOX3-40-2 40 4" 3" 5.91 5.12 7.09 6.3 8.66 7.87 8 8 4.9 2.2 SOX3-50-2 50 4" 3" 5.91 5.12 7.09 6.3 8.66 7.87 8 8 4.9 2.2
- Never use this pump to handle explosive liquids.
- This pump is not approved to be used in swimming pools, recreational installations or any application where
- Never use this pump to handle explosive liquids.
- This pump is not approved to be used in swimming pools, recreational installations or any application where
- Testing is performed with water specific gravity of 1.0 @ 68 °F (20 °C); other fluids may vary performance.
| Fluid compatibility | For use with clean water and non-explosive liquids compatible with pump materials. Never use with explosive, flammable, or corrosive fluids unless specifically rated. |
| Swimming pools | Not approved for use in swimming pools, recreational installations, or any application where human contact is common. |
| Temperature | Do not exceed maximum liquid temperature rating (see spec sheet). Exceeding limits causes seal and motor damage. |
| Electrical | Requires properly sized, grounded branch circuit with correctly rated motor starter and thermal overload protection. |
