Description

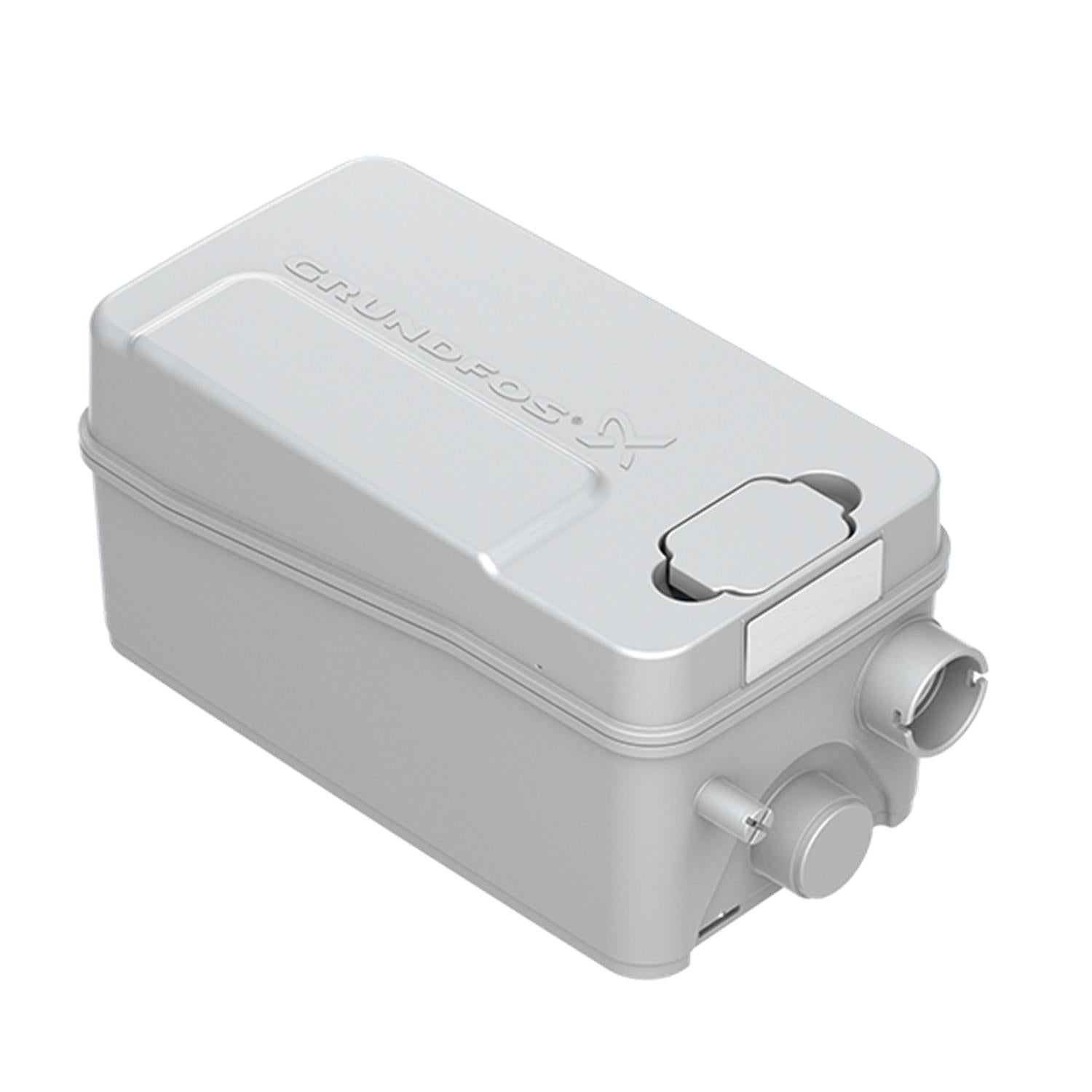

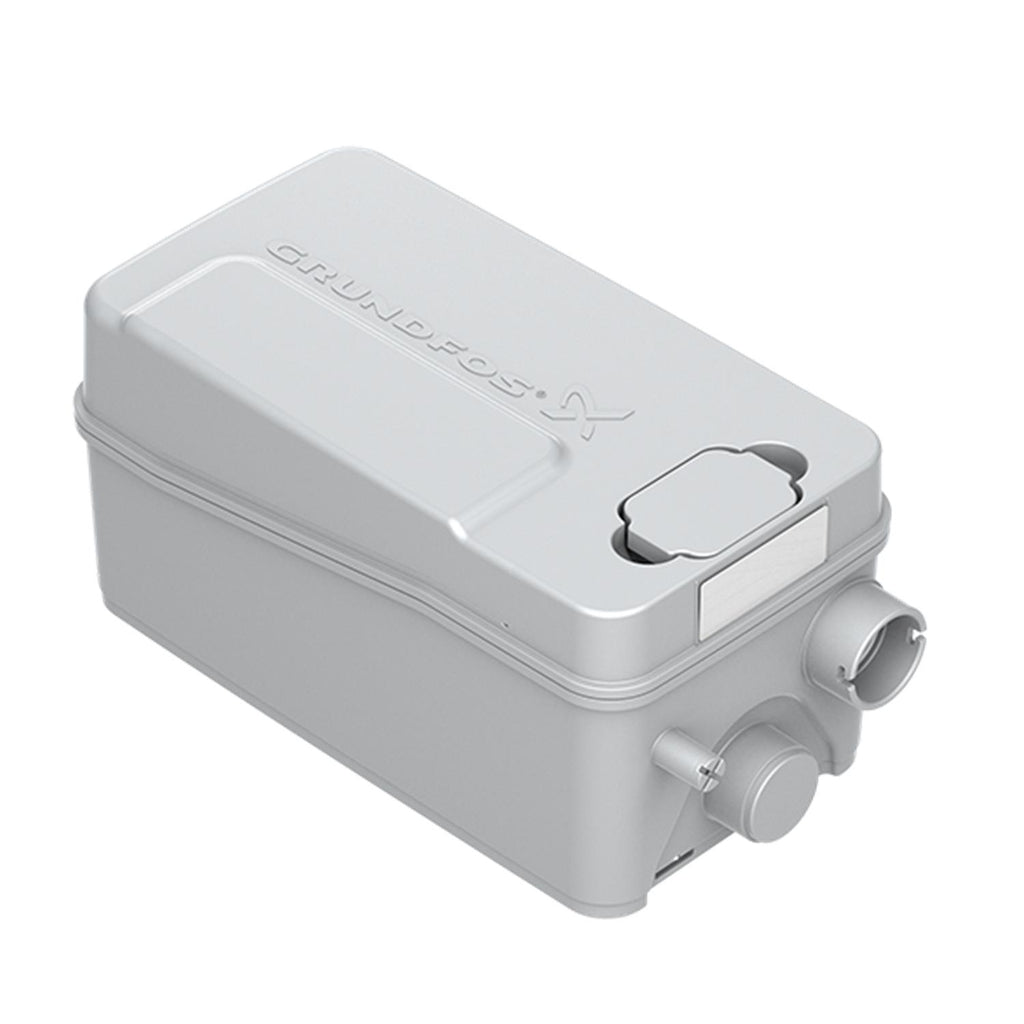

The Grundfos 98622990 (SOLOLIFT2 D-2) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 16.8US gpm at 10.7ft. Rated 220V, 1-Phase, 60 Hz. Applications include Residential wastewater.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 98622990 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Power | 0.215HP |
| Voltage | 220V |
| Phase | 1-Phase |
| Frequency | 60 Hz |
| Pump Speed | 3400rpm |
| Full Load Current | 1.3A |
| Insulation Class | F |
| Protection Class (IP) | IP44 |
| Nominal Flow | 16.8US gpm |
| Nominal Head | 10.7ft |
| Max Fluid Temperature | 122°F |
| Max Ambient Temperature | 104°F |
| Inlet Connection | 36/40/50 |
| Outlet Connection | 22/32 |
| Pipe Pressure Rating | PN 1,5 |
| Impeller Material | Polymer - PA |
| Housing Material | Composite |
| Approvals / Certifications | CE, SASO, CHROHS, MORO |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 220V, 1-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 122°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5711498406032
- Approvals
- WEEE
- Cable type
- H05VV-F-3G
- Connection
- PN 1
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- IP44
- Environmental approvals
- WEEE
- Gross weight
- 13.8 lb
- Housing
- Composite
- Impeller
- Polymer - PA
- Insulation class (IEC 85)
- F
- Length of power cable
- 1.5 m
- Liquid temperature range
- 32 .. 122 °F
- Mains frequency
- 60 Hz
- Material Pricing Group
- 7
- Max. Particle
- 10 mm
- Maximum flow
- 2.02 l/s
- Maximum head
- 18.7 ft
- Net weight
- 10.5 lb
- Number of leads
- 3X0
- Number of poles
- 2
- Power 1
- 290 W
- Power cable type
- H05VV-F-3G
- Power factor 1
- 0.98
- Power input P1
- 290 W
- Power plug
- without
- Pressure rating for connection
- PN 1
- Pump housing
- Composite
- Pump speed on which pump data are based
- 3400 rpm
- Range of ambient temperature
- 32 .. 104 °F
- Rated current
- 1.3 A
- Rated flow
- 16.8 US gpm
- Rated head
- 10.7 ft
- Rated power - P2
- 0.16 kW
- Rated voltage
- 1 x 220 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Size of inlet connection
- 36/40/50
- Size of outlet connection
- 22/32
- Thermal protec
- THERMIK S01-160-05
- Type
- H05VV-F-3G
- Type of impeller
- VORTEX
- Type of inlet connection
- Smooth pipe
- Type of outlet connection
- Smooth pipe
Dimensional Drawing
Wiring Diagram
