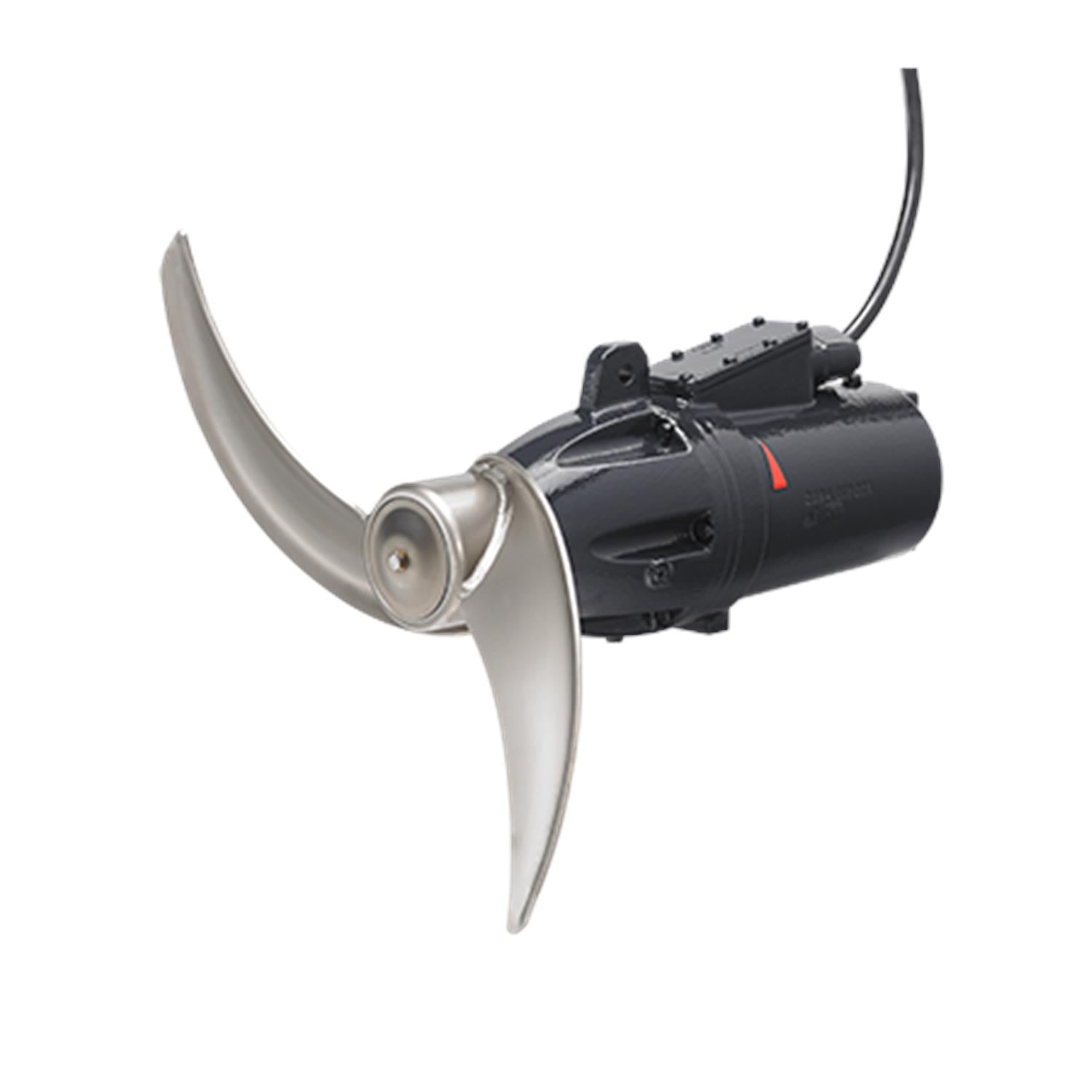

Grundfos 98788111 - SMG.55.28 .314.6.1H
Grundfos 98788111 - SMG.55.28 .314.6.1H
Grundfos 98788111 - SMG.55.28 .314.6.1H
Grundfos 98788111 - SMG.55.28 .314.6.1H
Grundfos 98788111 - SMG.55.28 .314.6.1H
Grundfos 98788111 - SMG.55.28 .314.6.1H

Grundfos 98788111 - SMG.55.28 .314.6.1H

GRUNDFOSSKU: 98788111
Price:
$11,767.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98788111 - SMG.55.28 .314.6.1H This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5712601395410
Applications Wastewater
Material Pricing Group 7J
Motor efficiency at full load 1 0.878
Power factor 1 0.85
Rated voltage 3 x 460 V
Power input - P1 4.6 kW
Maximum installation depth 66 m
Cos phi - p.f. at 1/2 load 0.73
Maximum current consumption 0.73
Starting current 44 A
Pump outlet 0.73
Pump inlet 0.73
Connect code 0.73
Mains frequency 60 Hz
Insulation class (IEC 85) H
Cos phi - p.f. at 3/4 load 0.83
Motor efficiency at 1/2 load 0.882
Built-in motor protection PTO (THERMAL SWITCH)
Net weight 174.0 lb
Number of poles 4
Start. method star/delta
Rated power - P2 4 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.886
Rated current 7.1 A
Cable type S1BN8-F 11G1.5
Voltage tolerance +10/-10 %
Explosion proof no
Type of cable plug NO
Length of cable 15 m
Moisture sensor without moisture sensors
pH-value range 45203
Water-in-oil sensor with water-in-oil sensor
Rated flow 8490 US gpm
Thrust to power 0.351
Diameter 28 in
Motor AISI EN-GJL-250
Power 1 4.6 kW
Size 80/80 mm
Axial trust force 1450 N
Thickness 450 micrometre
Type S1BN8-F 11G1.5
Curve tolerance ISO9906:2012 3B
Primary shaft seal 2 RADIAL LIP SEALS
Fits column profile tube, size 80/80 mm
Propeller speed 314 rpm
Mean velocity 1.35 m/s
Propeller diameter 710 mm

Motor Curves

Dimensional Drawing

DWiring Diagram
