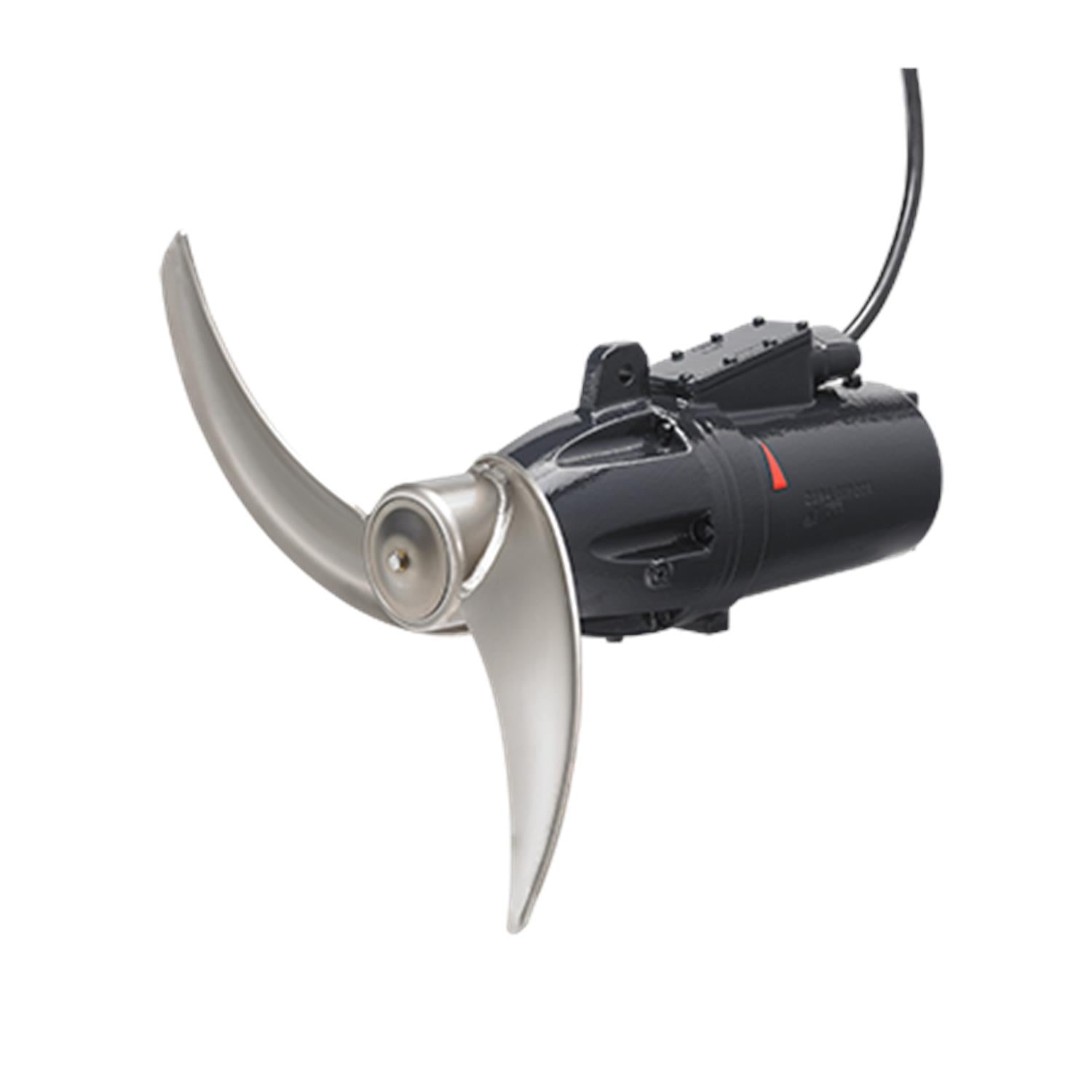

Grundfos 98788064 - SMG.34.28 .263.6.1H
Roll over image to zoom in Click on image to zoom
Grundfos 98788064 - SMG.34.28 .263.6.1H
Grundfos Pumps & Systems

Grundfos 98788064 - SMG.34.28 .263.6.1H

GRUNDFOSSKU: 98788064
Price:
$11,437.00

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
98788064 · Grundfos Accessory / Spare Part / Control
ACC3.35HP460V3-Phase60 HzIP68

The Grundfos 98788064 (SMG.34.28 .263.6.1H) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 460V, 3-Phase, 60 Hz. Applications include Municipal wastewater treatment.

Power
3.35HP
Voltage
460V
Phase
3-Phase
Max Flow
7120US gpm
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 98788064
Series: ACC
Technical Specifications
Model Number 98788064
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 3.35HP
Voltage 460V
Phase 3-Phase
Frequency 60 Hz
Motor Speed 1752rpm
Full Load Current 4.7A
Motor Protection PTO (THERMAL SWITCH)
Insulation Class H
Protection Class (IP) IP68
Nominal Flow 7120US gpm
Applications
Municipal wastewater treatment
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 460V, 3-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 98788064
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 98788064 · 98788064Authorized Grundfos Distributor · pump-stop.com
EAN
5712601394949
Applications
Wastewater
Axial trust force
1020 N
Built-in motor protection
PTO (THERMAL SWITCH)
Cable type
S1BN8-F 11G1.5
Connect code
0.57
Cos phi - p.f. at 1/2 load
0.57
Cos phi - p.f. at 3/4 load
0.71
Curve tolerance
ISO9906:2012 3B
Diameter
28 in
Enclosure class (IEC 34-5)
IP68
Explosion proof
no
Fits column profile tube, size
80/80 mm
Insulation class (IEC 85)
H
Length of cable
10 m
Mains frequency
60 Hz
Material Pricing Group
7J
Maximum current consumption
0.57
Maximum installation depth
66 m
Mean velocity
1.13 m/s
Moisture sensor
without moisture sensors
Motor
AISI EN-GJL-250
Motor efficiency at 1/2 load
0.858
Motor efficiency at 3/4 load
0.88
Motor efficiency at full load 1
0.886
Net weight
170.0 lb
Number of poles
4
pH-value range
45203
Power 1
2.8 kW
Power factor 1
0.79
Power input - P1
2.8 kW
Primary shaft seal
2 RADIAL LIP SEALS
Product family
SMG
Propeller diameter
710 mm
Propeller speed
263 rpm
Pump inlet
0.57
Pump outlet
0.57
Rated current
4.7 A
Rated flow
7120 US gpm
Rated power - P2
2.5 kW
Rated voltage
3 x 460 V
Real Time
1 Available on 10/12/2023 Plant: Allentown  Update with real time availability and Net price
Size
80/80 mm
Start. method
star/delta
Starting current
44 A
Thickness
450 micrometre
Thrust to power
0.415
Type
S1BN8-F 11G1.5
Type of cable plug
NO
Voltage tolerance
+10/-10 %
Water-in-oil sensor
with water-in-oil sensor
