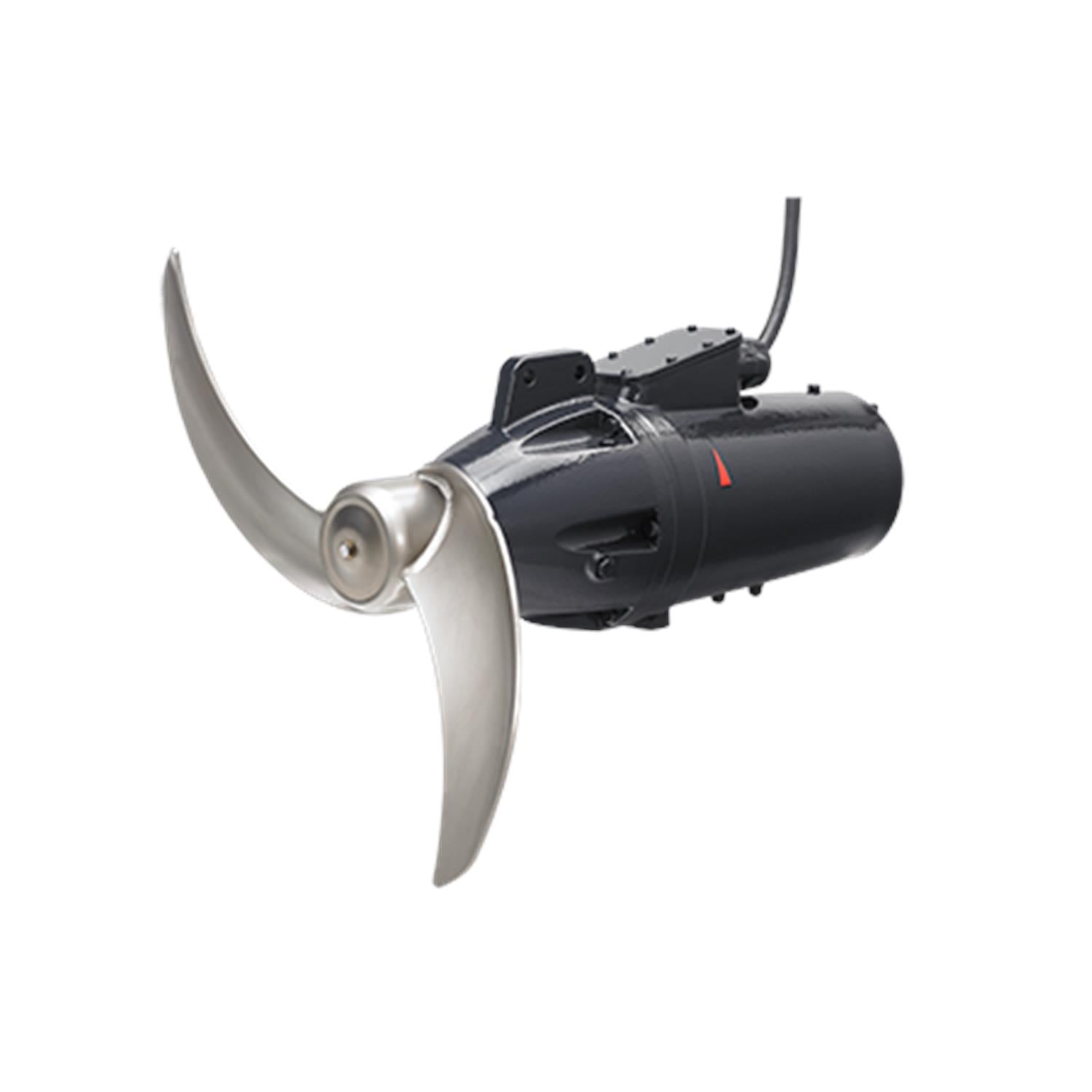

Grundfos 98788071 - SMG.220.35 .345.6.1H
Grundfos 98788071 - SMG.220.35 .345.6.1H
Grundfos 98788071 - SMG.220.35 .345.6.1H
Grundfos 98788071 - SMG.220.35 .345.6.1H
Grundfos 98788071 - SMG.220.35 .345.6.1H
Grundfos 98788071 - SMG.220.35 .345.6.1H

Grundfos 98788071 - SMG.220.35 .345.6.1H

GRUNDFOSSKU: 98788071
Price:
$20,663.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98788071 - SMG.220.35 .345.6.1H This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5712601395014
Applications Wastewater
Material Pricing Group 7J
Motor efficiency at full load 1 0.924
Power factor 1 0.75
Rated voltage 3 x 460 V
Power input - P1 17.3 kW
Maximum installation depth 66 m
Cos phi - p.f. at 1/2 load 0.55
Maximum current consumption 0.55
Starting current 211 A
Pump outlet 0.55
Pump inlet 0.55
Connect code 0.55
Mains frequency 60 Hz
Insulation class (IEC 85) H
Cos phi - p.f. at 3/4 load 0.68
Motor efficiency at 1/2 load 0.907
Built-in motor protection PTO (THERMAL SWITCH)
Net weight 591.0 lb
Number of poles 4
Start. method star/delta
Rated power - P2 16 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.92
Rated current 30 A
Cable type H07RN-F 7G4+4X1
Voltage tolerance +10/-10 %
Explosion proof no
Type of cable plug NO
Length of cable 10 m
Moisture sensor without moisture sensors
pH-value range 45203
Water-in-oil sensor with water-in-oil sensor
Rated flow 17900 US gpm
Thrust to power 0.261
Diameter 35.4 in
Motor AISI EN-GJL-250
Power 1 17.3 kW
Size 100/100 mm
Axial trust force 4030 N
Thickness 450 micrometre
Type H07RN-F 7G4+4X1
Curve tolerance ISO9906:2012 3B
Primary shaft seal 2 RADIAL LIP SEALS
Fits column profile tube, size 100/100 mm
Propeller speed 345 rpm
Mean velocity 1.78 m/s
Propeller diameter 900 mm

Motor Curves

Dimensional Drawing

DWiring Diagram
