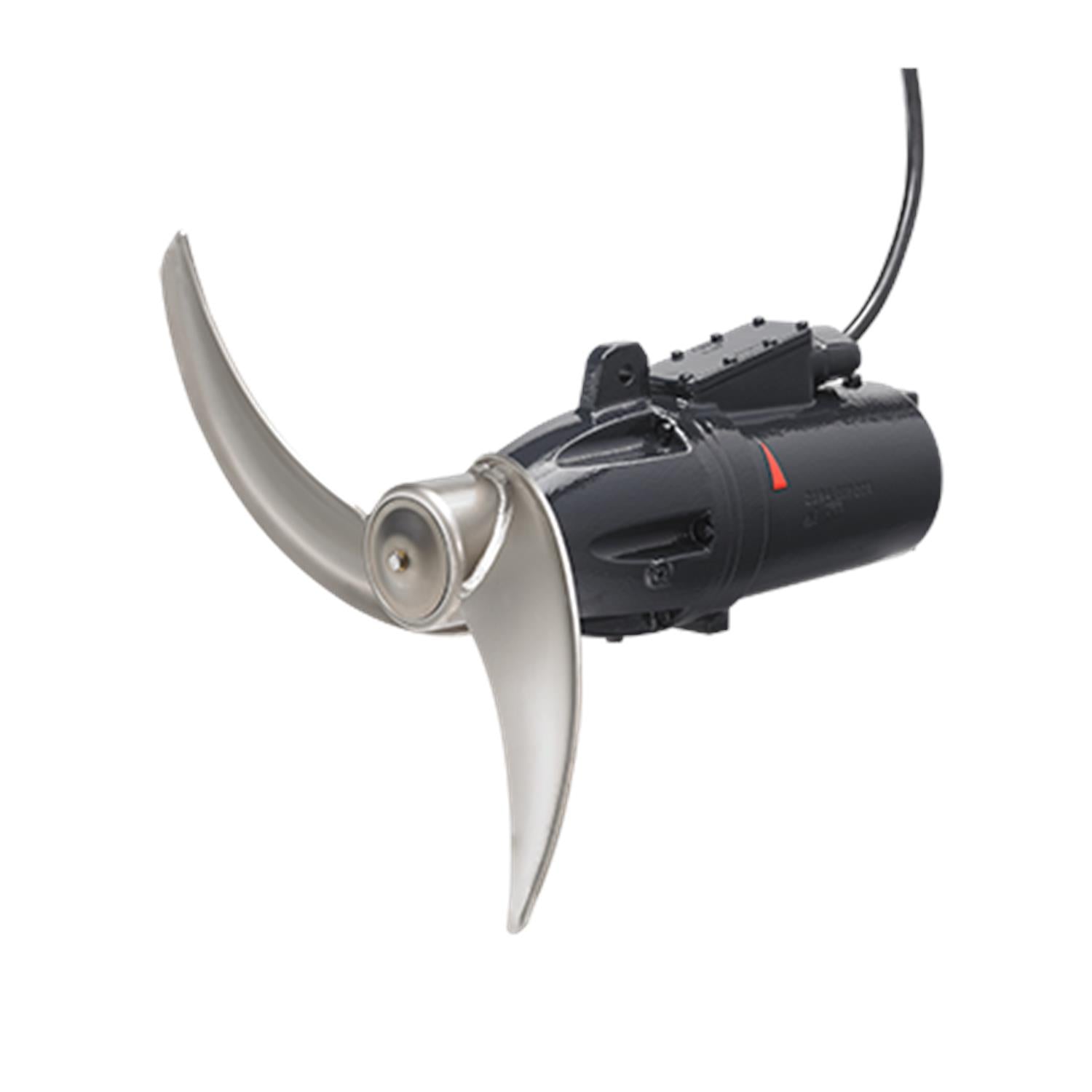

Grundfos 98788061 - SMG.16.25 .275.6.0H
Grundfos 98788061 - SMG.16.25 .275.6.0H
Grundfos 98788061 - SMG.16.25 .275.6.0H
Grundfos 98788061 - SMG.16.25 .275.6.0H
Grundfos 98788061 - SMG.16.25 .275.6.0H
Grundfos 98788061 - SMG.16.25 .275.6.0H

Grundfos 98788061 - SMG.16.25 .275.6.0H

GRUNDFOSSKU: 98788061
Price:
$9,470.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98788061 - SMG.16.25 .275.6.0H This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5712601394918
Applications Wastewater
Material Pricing Group 7J
Motor efficiency at full load 1 0.856
Power factor 1 0.66
Rated voltage 3 x 460 V
Power input - P1 1.4 kW
Maximum installation depth 66 m
Cos phi - p.f. at 1/2 load 0.44
Maximum current consumption 0.44
Starting current 22 A
Pump outlet 0.44
Pump inlet 0.44
Connect code 0.44
Mains frequency 60 Hz
Insulation class (IEC 85) H
Cos phi - p.f. at 3/4 load 0.57
Motor efficiency at 1/2 load 0.812
Built-in motor protection PTO (THERMAL SWITCH)
Net weight 154.0 lb
Number of poles 6
Start. method direct-on-line
Rated power - P2 1.2 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.846
Rated current 2.9 A
Cable type S1BN8-F 11G1.5
Voltage tolerance +10/-10 %
Explosion proof no
Type of cable plug NO
Length of cable 10 m
Moisture sensor without moisture sensors
pH-value range 45203
Water-in-oil sensor with water-in-oil sensor
Rated flow 4510 US gpm
Thrust to power 0.409
Diameter 24.8 in
Motor AISI EN-GJL-250
Power 1 1.4 kW
Size 80/80 mm
Axial trust force 520 N
Thickness 450 micrometre
Type S1BN8-F 11G1.5
Curve tolerance ISO9906:2012 3B
Primary shaft seal 2 RADIAL LIP SEALS
Fits column profile tube, size 80/80 mm
Propeller speed 275 rpm
Mean velocity 0.91 m/s
Propeller diameter 630 mm

Motor Curves

Dimensional Drawing

DWiring Diagram
