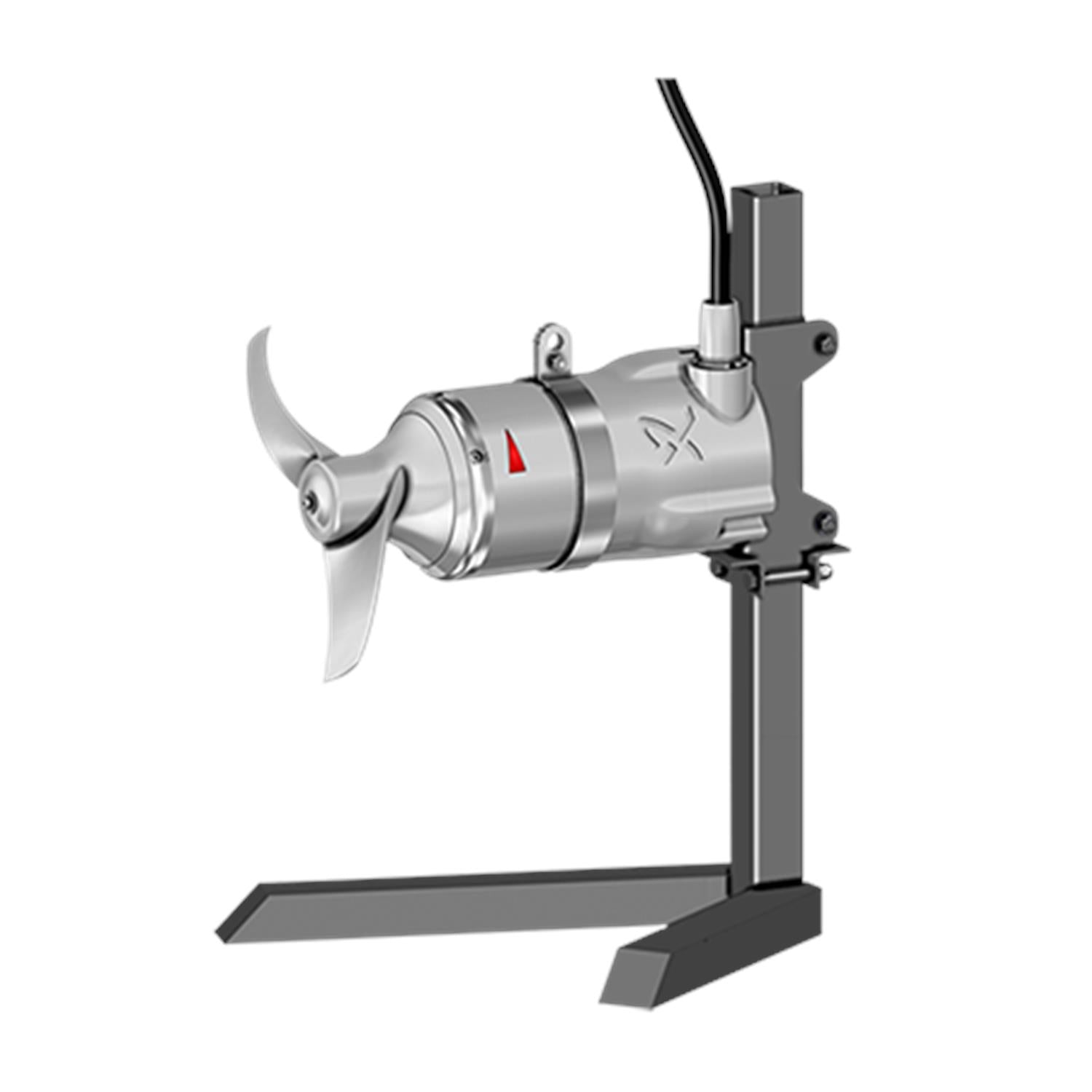

Grundfos 98996026 - SMD.47.15 .1170.6.1H
Grundfos 98996026 - SMD.47.15 .1170.6.1H
Grundfos 98996026 - SMD.47.15 .1170.6.1H
Grundfos 98996026 - SMD.47.15 .1170.6.1H
Grundfos 98996026 - SMD.47.15 .1170.6.1H
Grundfos 98996026 - SMD.47.15 .1170.6.1H

Grundfos 98996026 - SMD.47.15 .1170.6.1H

GRUNDFOSSKU: 98996026
Price:
$10,350.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98996026 - SMD.47.15 .1170.6.1H This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5712604897553
Applications Wastewater
Material Pricing Group 7J
Motor efficiency at full load 1 0.865
Power factor 1 0.74
Rated voltage 3 x 460 V
Power input - P1 4.1 kW
Maximum installation depth 66 m
Cos phi - p.f. at 1/2 load 0.55
Maximum current consumption 0.55
Starting current 38 A
Pump outlet 0.55
Pump inlet 0.55
Connect code 0.55
Mains frequency 60 Hz
Insulation class (IEC 85) H
Cos phi - p.f. at 3/4 load 0.68
Motor efficiency at 1/2 load 0.867
Built-in motor protection PTO (THERMAL SWITCH)
Net weight 148.0 lb
Number of poles 6
Start. method direct-on-line
Rated power - P2 3.5 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.876
Rated current 7.3 A
Voltage tolerance +10/-10 %
Explosion proof no
Type of cable plug NO
Length of cable 15 m
Moisture sensor with moisture sensors
pH-value range 45203
Water-in-oil sensor without water-in-oil sensor
Rated flow 3290 US gpm
Thrust to power 0.211
Diameter 14.6 in
Motor AISI 1.4408
Power 1 4.1 kW
Motor standard NEMA
Axial trust force 800 N
Curve tolerance ISO9906:2012 3B
Primary shaft seal LIP SEAL
Propeller speed 1170 rpm
Mean velocity 1.93 m/s
Standard NEMA
Propeller diameter 370 mm

Motor Curves

Dimensional Drawing

DWiring Diagram
