Description

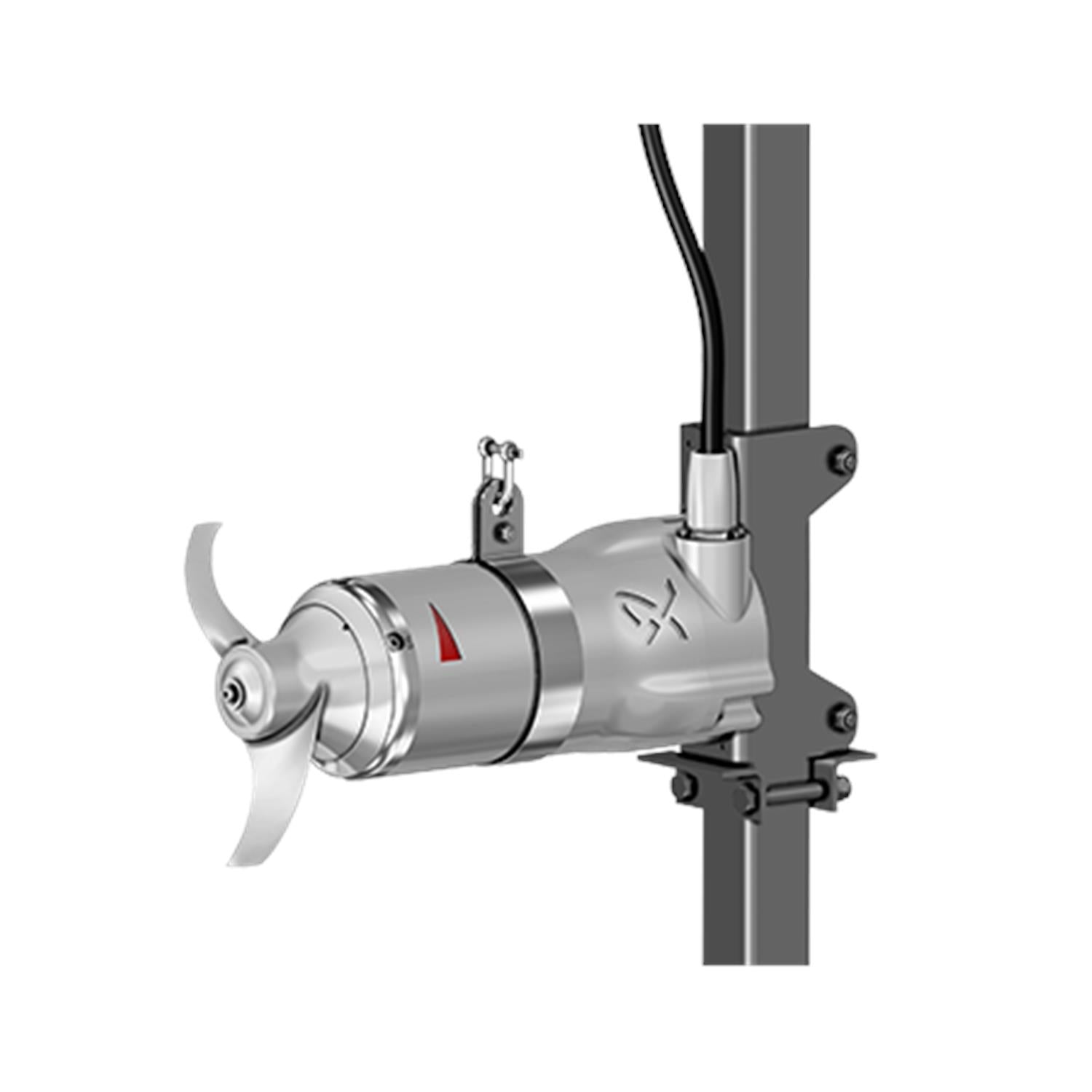

The Grundfos 98996020 (SMD.23.10 .1750.T.6.0H) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 460V, 3-Phase, 60 Hz. Applications include Municipal wastewater treatment.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 98996020 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Voltage | 460V |
| Phase | 3-Phase |
| Frequency | 60 Hz |
| Motor Speed | 1742rpm |
| Full Load Current | 3.4A |
| Motor Protection | PTO (THERMAL SWITCH) |
| Insulation Class | F |
| Protection Class (IP) | IP68 |
| Nominal Flow | 1450US gpm |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 460V, 3-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5712604897492
- Applications
- Wastewater
- Axial trust force
- 340 N
- Built-in motor protection
- PTO (THERMAL SWITCH)
- Connect code
- 0.6
- Cos phi - p.f. at 1/2 load
- 0.6
- Cos phi - p.f. at 3/4 load
- 0.73
- Curve tolerance
- ISO9906:2012 3B
- Diameter
- 9.84 in
- Enclosure class (IEC 34-5)
- IP68
- Explosion proof
- no
- Insulation class (IEC 85)
- F
- Length of cable
- 15 m
- Mains frequency
- 60 Hz
- Maximum current consumption
- 0.6
- Maximum installation depth
- 66 m
- Mean velocity
- 1.86 m/s
- Moisture sensor
- with moisture sensors
- Motor
- AISI 1.4408
- Motor efficiency at 1/2 load
- 0.86
- Motor efficiency at 3/4 load
- 0.87
- Motor efficiency at full load 1
- 0.862
- Motor standard
- NEMA
- Net weight
- 83.8 lb
- Number of poles
- 4
- pH-value range
- 45203
- Power 1
- 2 kW
- Power factor 1
- 0.8
- Power input - P1
- 2 kW
- Primary shaft seal
- LIP SEAL
- Product family
- SMD
- Propeller diameter
- 250 mm
- Propeller speed
- 1750 rpm
- Pump inlet
- 0.6
- Pump outlet
- 0.6
- Rated current
- 3.4 A
- Rated flow
- 1450 US gpm
- Rated power - P2
- 1.7 kW
- Rated voltage
- 3 x 460 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Standard
- NEMA
- Start. method
- direct-on-line
- Starting current
- 24 A
- Thrust to power
- 0.189
- Type of cable plug
- NO
- Voltage tolerance
- +10/-10 %
- Water-in-oil sensor
- without water-in-oil sensor
