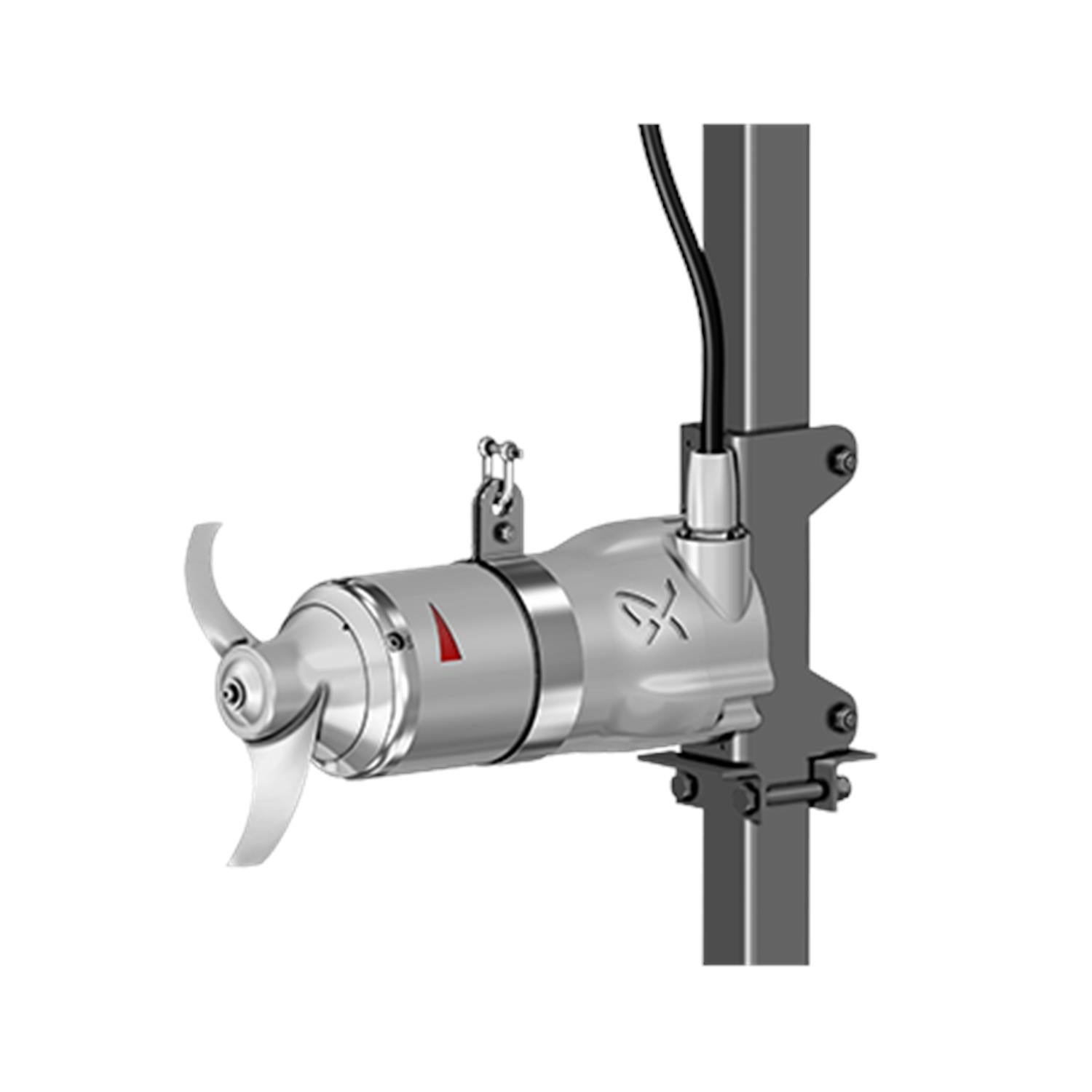

Grundfos 98996014 - SMD.23.10 .1750.6.0H
Grundfos 98996014 - SMD.23.10 .1750.6.0H
Grundfos 98996014 - SMD.23.10 .1750.6.0H
Grundfos 98996014 - SMD.23.10 .1750.6.0H
Grundfos 98996014 - SMD.23.10 .1750.6.0H
Grundfos 98996014 - SMD.23.10 .1750.6.0H

Grundfos 98996014 - SMD.23.10 .1750.6.0H

GRUNDFOSSKU: 98996014
Price:
$7,102.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98996014 - SMD.23.10 .1750.6.0H This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5712604897430
Applications Wastewater
Material Pricing Group 7J
Motor efficiency at full load 1 0.862
Power factor 1 0.8
Rated voltage 3 x 460 V
Power input - P1 2 kW
Maximum installation depth 66 m
Cos phi - p.f. at 1/2 load 0.6
Maximum current consumption 0.6
Starting current 24 A
Pump outlet 0.6
Pump inlet 0.6
Connect code 0.6
Mains frequency 60 Hz
Insulation class (IEC 85) F
Cos phi - p.f. at 3/4 load 0.73
Motor efficiency at 1/2 load 0.86
Built-in motor protection PTO (THERMAL SWITCH)
Net weight 77.2 lb
Number of poles 4
Start. method direct-on-line
Rated power - P2 1.7 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.87
Rated current 3.4 A
Voltage tolerance +10/-10 %
Explosion proof no
Type of cable plug NO
Length of cable 10 m
Moisture sensor with moisture sensors
pH-value range 45203
Water-in-oil sensor without water-in-oil sensor
Rated flow 1450 US gpm
Thrust to power 0.189
Diameter 9.84 in
Motor AISI 1.4408
Power 1 2 kW
Motor standard NEMA
Axial trust force 340 N
Curve tolerance ISO9906:2012 3B
Primary shaft seal LIP SEAL
Propeller speed 1750 rpm
Mean velocity 1.86 m/s
Standard NEMA
Propeller diameter 250 mm

Motor Curves

Dimensional Drawing

DWiring Diagram
