Description

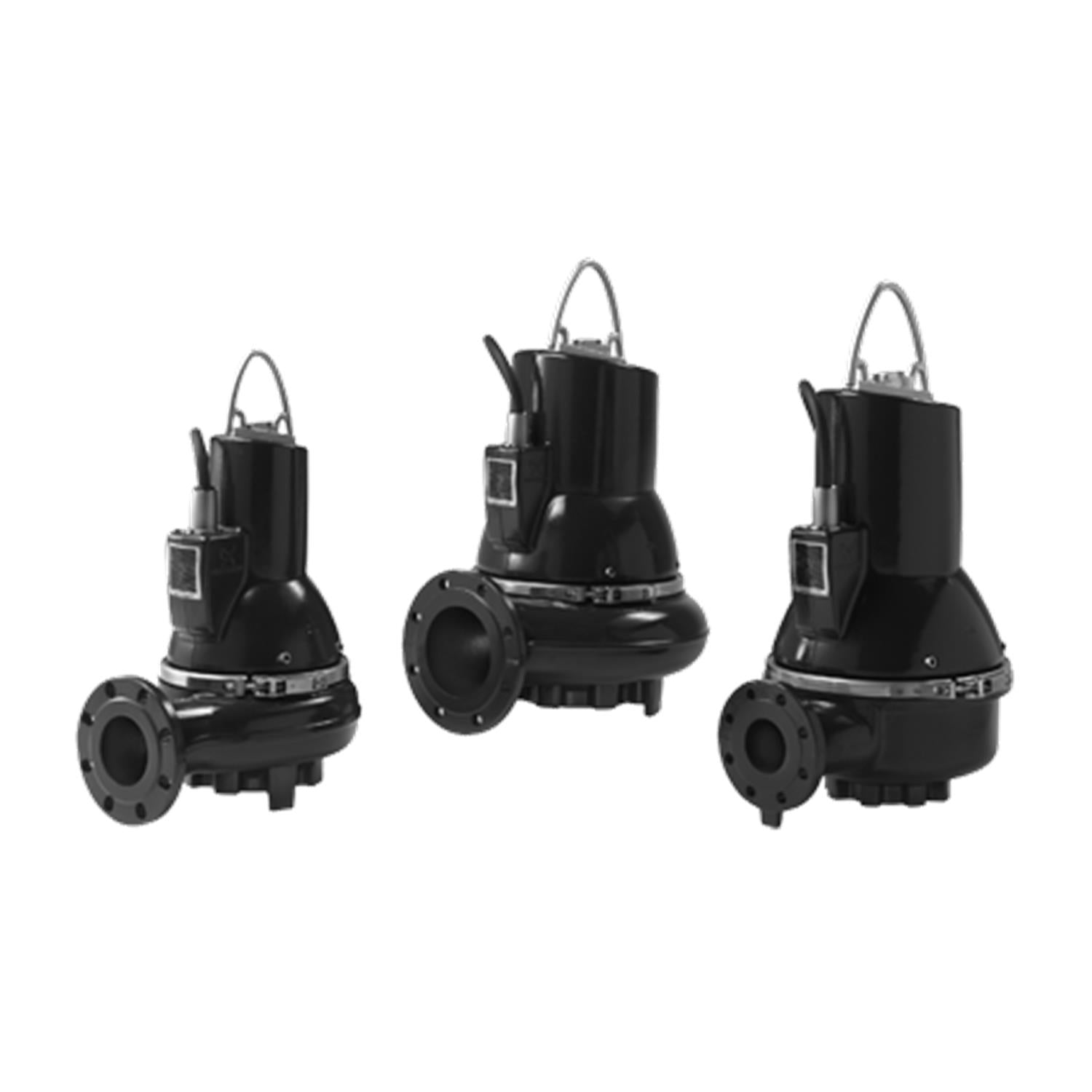

Grundfos 99030279 - SLV.30.A40 .55.EX.2.61R.C This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5712605418566
Applications
Wastewater
Material Pricing Group
8A
Motor efficiency at full load 1
0.8605
Density
62.29 lb/ft³
Maximum operating pressure
6 bar
Size of inlet connection
DN 80
Power factor 1
0.9
Pressure rating
PN 10
Rated voltage
3 x 230/460V V
Power input - P1
5 kW
Frame range
C22
Maximum installation depth
20 m
Inst dry/wet
SUBMERGED
Size of outlet connection
DN 100
Cos phi - p.f. at 1/2 load
0.8
Maximum current consumption
0.8
Starting current
120 A
Pump outlet
0.8
Pump inlet
0.8
Connect code
0.8
Liquid temperature range
50 .. 104 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
H
Cos phi - p.f. at 3/4 load
0.87
Motor efficiency at 1/2 load
0.827
Built-in motor protection
THERMAL SWITCH
Net weight
279.0 lb
Number of poles
2
Rated speed
3520 rpm
Start. method
star/delta
Gross weight
322.0 lb
Rated power - P2
4 kW
Enclosure class (IEC 34-5)
IP68
Motor efficiency at 3/4 load
0.854
Rated current
14.4/7.55 A
Type of outlet connection
ANSI
Cable type
SEOOW 600V
Voltage tolerance
+10/-10 %
Explosion proof
yes
Moisture sensor
with moisture sensors
Control box
not included
Length of power cable
15 m
Range of ambient temperature
-4 .. 104 °F
Auto-coupling
97626238
Max starts per hour
20
Water-in-oil sensor
without water-in-oil sensor
Approvals
CSA
Maximum flow
20 l/s
Flange standard
ANSI
Motor
EN-GJL-250
Power 1
5 kW
Maximum head
56.43 ft
Size
80 mm
Housing
Cast iron
Type of impeller
SUPER VORTEX
Type
SEOOW 600V
Curve tolerance
ANSI/HI11.6:2017 3B2
Primary shaft seal
SIC/SIC
Maximum particle size
80 mm
Connection
DN 100
Impeller
Cast iron
Pump housing
Cast iron
Type of inlet connection
ANSI
Standard
ANSI
