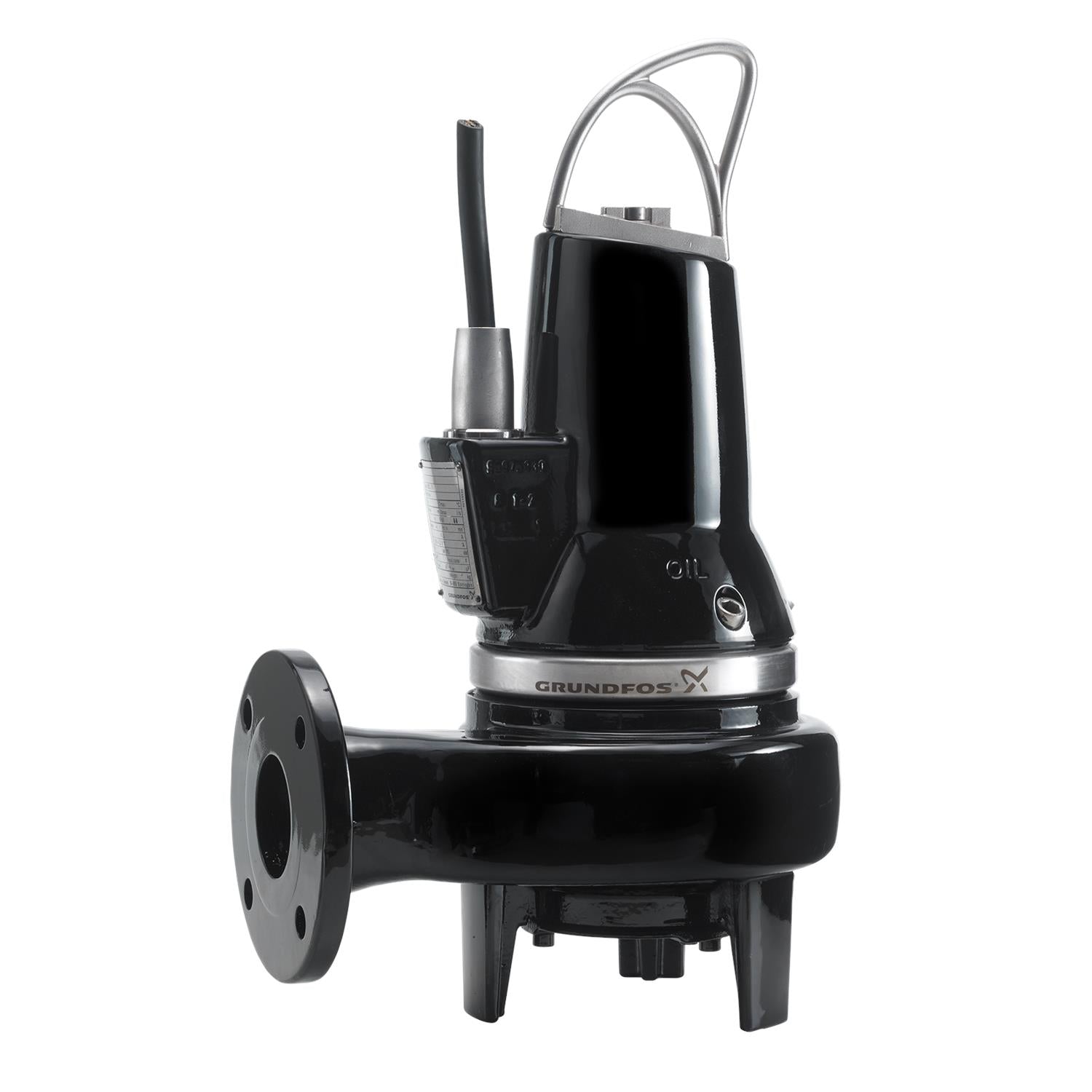

Grundfos 96106562 - SL1.50.65 .09.2.1.502
Roll over image to zoom in Click on image to zoom
Grundfos 96106562 - SL1.50.65 .09.2.1.502
Grundfos Pumps & Systems

Grundfos 96106562 - SL1.50.65 .09.2.1.502

GRUNDFOSSKU: 96106562

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
96106562 · Grundfos Accessory / Spare Part / Control
ACC1.21HP230V1.0-Phase50 HzIP68Cast iron

The Grundfos 96106562 (SL1.50.65 .09.2.1.502) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 128US gpm at 17.26ft. Rated 230V, 1.0-Phase, 50 Hz. Applications include Plumbing: Sewage, Industrial wastewater treatment & reuse, Municipal wastewater transport and more.

Power
1.21HP
Voltage
230V
Phase
1.0-Phase
Max Flow
128US gpm
Max Head
17.26ft
Max Pressure
87.02psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 96106562
Series: ACC
Impeller Material: Cast iron
Housing Material: Cast iron
Flange Rating: PN 10
Technical Specifications
Model Number 96106562
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 1.21HP
Voltage 230V
Phase 1.0-Phase
Frequency 50 Hz
Motor Speed 2920rpm
Motor Protection PTO
Motor Efficiency 67%
Insulation Class F
Protection Class (IP) IP68
Nominal Flow 128US gpm
Nominal Head 17.26ft
Max Operating Pressure 87.02psi
Max Fluid Temperature 104°F
Max Ambient Temperature 104°F
Outlet Connection DN 65
Pipe Pressure Rating PN 10
Impeller Material Cast iron
Housing Material Cast iron
Approvals / Certifications EN 12050-2
Applications
Plumbing: Sewage
Industrial wastewater treatment & reuse
Municipal wastewater transport
Stormwater control
Municipal wastewater treatment
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 230V, 1.0-Phase, 50 Hz.
Temperature limits Do not exceed max fluid temperature 104°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 96106562
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 96106562 · 96106562Authorized Grundfos Distributor · pump-stop.com
EAN
5700396854465
Applications
Wastewater
Approvals
EN 12050-2
Auto-coupling
96090992
AUTOADAPT
NO
Built-in motor protection
THERMAL SWITCH
Cable type
H07RN-F
Capacitor size - run
30 µF
Connect code
0.86
Connection
DN 65
Control box
not included
Cos phi - p.f. at 1/2 load
0.86
Cos phi - p.f. at 3/4 load
0.92
Curve tolerance
ISO9906:2012 3B2
Density
62.29 lb/ft³
Enclosure class (IEC 34-5)
IP68
Explosion proof
no
Flange standard
DIN
Housing
Cast iron
Impeller
Cast iron
Inst dry/wet
SUBMERGED
Insulation class (IEC 85)
F
Length of power cable
10 m
Liquid temperature range
32 .. 104 °F
Mains frequency
50 Hz
Max starts per hour
30
Maximum current consumption
0.86
Maximum flow
16.2 l/s
Maximum head
37.73 ft
Maximum installation depth
7 m
Maximum operating pressure
6 bar
Maximum particle size
50 mm
Moisture sensor
without moisture sensors
Motor
EN-GJL-200
Motor efficiency at 1/2 load
0.55
Motor efficiency at 3/4 load
0.63
Motor efficiency at full load 1
0.67
Net weight
118.0 lb
Power 1
1.3 kW
Power factor 1
0.96
Power input - P1
1.3 kW
Pressure rating
PN 10
Primary shaft seal
SIC/SIC
Product family
SL1
Pump housing
Cast iron
Pump inlet
0.86
Pump outlet
0.86
Range of ambient temperature
32 .. 104 °F
Rated current
6.1 A
Rated current at 1/2 load
4.1 A
Rated current at 3/4 load
5.1 A
Rated current at no load
2.6 A
Rated power - P2
0.9 kW
Rated speed
2920 rpm
Rated voltage
1 x 230 V
Real Time
Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Size
50 mm
Size of outlet connection
DN 65
Standard
DIN
Start. method
direct-on-line
Starting current
38 A
Type
H07RN-F
Type of impeller
SINGLE CHANNEL
Type of outlet connection
DIN
Voltage tolerance
+6/-10 %
Water-in-oil sensor
without water-in-oil sensor
