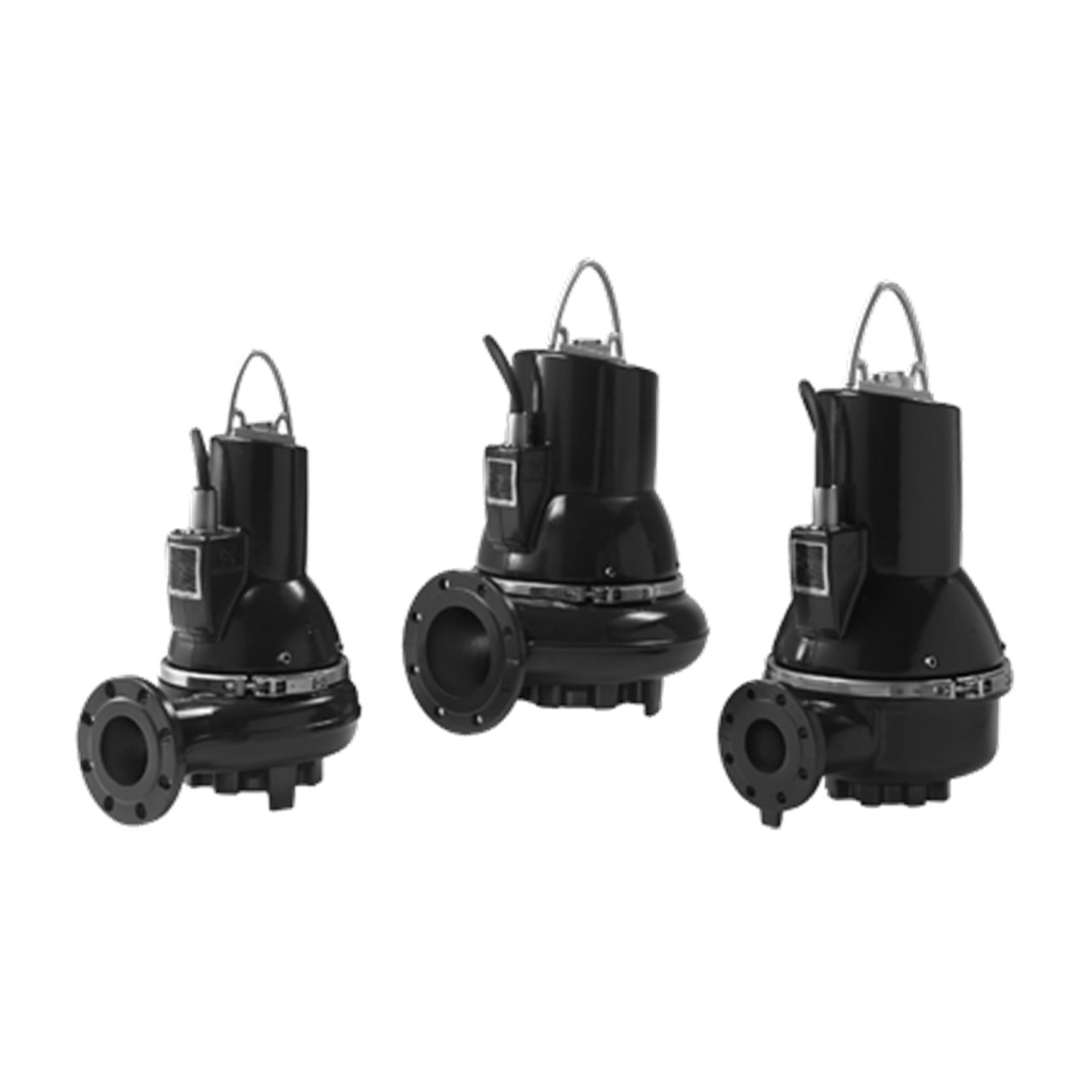

Image shown may not be actual product
Grundfos 99034743 - SL1.40.A40 .100.EX.4.60J.C
Roll over image to zoom in Click on image to zoom
Grundfos 99034743 - SL1.40.A40 .100.EX.4.60J.C
Grundfos Pumps & Systems

Grundfos 99034743 - SL1.40.A40 .100.EX.4.60J.C

GRUNDFOSSKU: 99034743
Price:
$13,645.00

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
99034743 · Grundfos Accessory / Spare Part / Control
ACC10HP208-230V3.0-Phase60 HzIP68Cast iron

The Grundfos 99034743 (SL1.40.A40 .100.EX.4.60J.C) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 756US gpm at 36.54ft. Rated 208-230V, 3.0-Phase, 60 Hz. Applications include Plumbing: Sewage, Industrial wastewater treatment & reuse, Municipal wastewater transport and more.

Power
10HP
Voltage
208-230V
Phase
3.0-Phase
Max Flow
756US gpm
Max Head
36.54ft
Max Pressure
87.02psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 99034743
Series: ACC
Impeller Material: Cast iron
Housing Material: Cast iron
Flange Rating: PN 10
Technical Specifications
Model Number 99034743
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 10HP
Voltage 208-230V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 1763rpm
Full Load Current 27.0-27.5/--A
Motor Protection THERMAL SWITCH
Motor Efficiency 91.0%
Insulation Class H
Protection Class (IP) IP68
Nominal Flow 756US gpm
Nominal Head 36.54ft
Max Operating Pressure 87.02psi
Max Fluid Temperature 104°F
Max Ambient Temperature 104°F
Inlet Connection DN 150
Outlet Connection DN 100
Pipe Pressure Rating PN 10
Impeller Material Cast iron
Housing Material Cast iron
Approvals / Certifications CSA, FM
Applications
Plumbing: Sewage
Industrial wastewater treatment & reuse
Municipal wastewater transport
Stormwater control
Municipal wastewater treatment
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 208-230V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 104°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 99034743
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 99034743 · 99034743Authorized Grundfos Distributor · pump-stop.com
EAN
5712605504665
Applications
Wastewater
Approvals
CSA
Auto-coupling
97626238
Built-in motor protection
THERMAL SWITCH
Cable type
SEOOW 600V
Connect code
0.71
Connection
DN 100
Control box
not included
Cos phi - p.f. at 1/2 load
0.71
Cos phi - p.f. at 3/4 load
0.81
Curve tolerance
ANSI/HI11.6:2017 3B2
Density
62.29 lb/ft³
Enclosure class (IEC 34-5)
IP68
Explosion proof
yes
Flange standard
ANSI
Frame range
D
Gross weight
466.0 lb
Housing
Cast iron
Impeller
Cast iron
Inst dry/wet
SUBMERGED
Insulation class (IEC 85)
H
Length of power cable
15 m
Liquid temperature range
50 .. 104 °F
Mains frequency
60 Hz
Material Pricing Group
8A
Max starts per hour
20
Maximum current consumption
0.71
Maximum flow
75 l/s
Maximum head
66.6 ft
Maximum installation depth
20 m
Maximum operating pressure
6 bar
Maximum particle size
100 mm
Moisture sensor
with moisture sensors
Motor
EN-GJL-250
Motor efficiency at 1/2 load
0.91
Motor efficiency at 3/4 load
0.914
Motor efficiency at full load 1
0.91
Net weight
422.0 lb
Number of poles
4
Power 1
8.4 kW
Power factor 1
0.85
Power input - P1
8.4 kW
Pressure rating
PN 10
Primary shaft seal
SIC/SIC
Product family
SL1
Pump housing
Cast iron
Pump inlet
0.71
Pump outlet
0.71
Range of ambient temperature
-4 .. 104 °F
Rated current
27.0-27.5 A
Rated power - P2
7.5 kW
Rated speed
1763 rpm
Rated voltage
3 x 208-230 V
Real Time
Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Size
100 mm
Size of inlet connection
DN 150
Size of outlet connection
DN 100
Standard
ANSI
Start. method
direct-on-line
Starting current
205 A
Type
SEOOW 600V
Type of impeller
S-TUBE
Type of inlet connection
ANSI
Type of outlet connection
ANSI
Voltage tolerance
+10/-10 %
Water-in-oil sensor
without water-in-oil sensor
