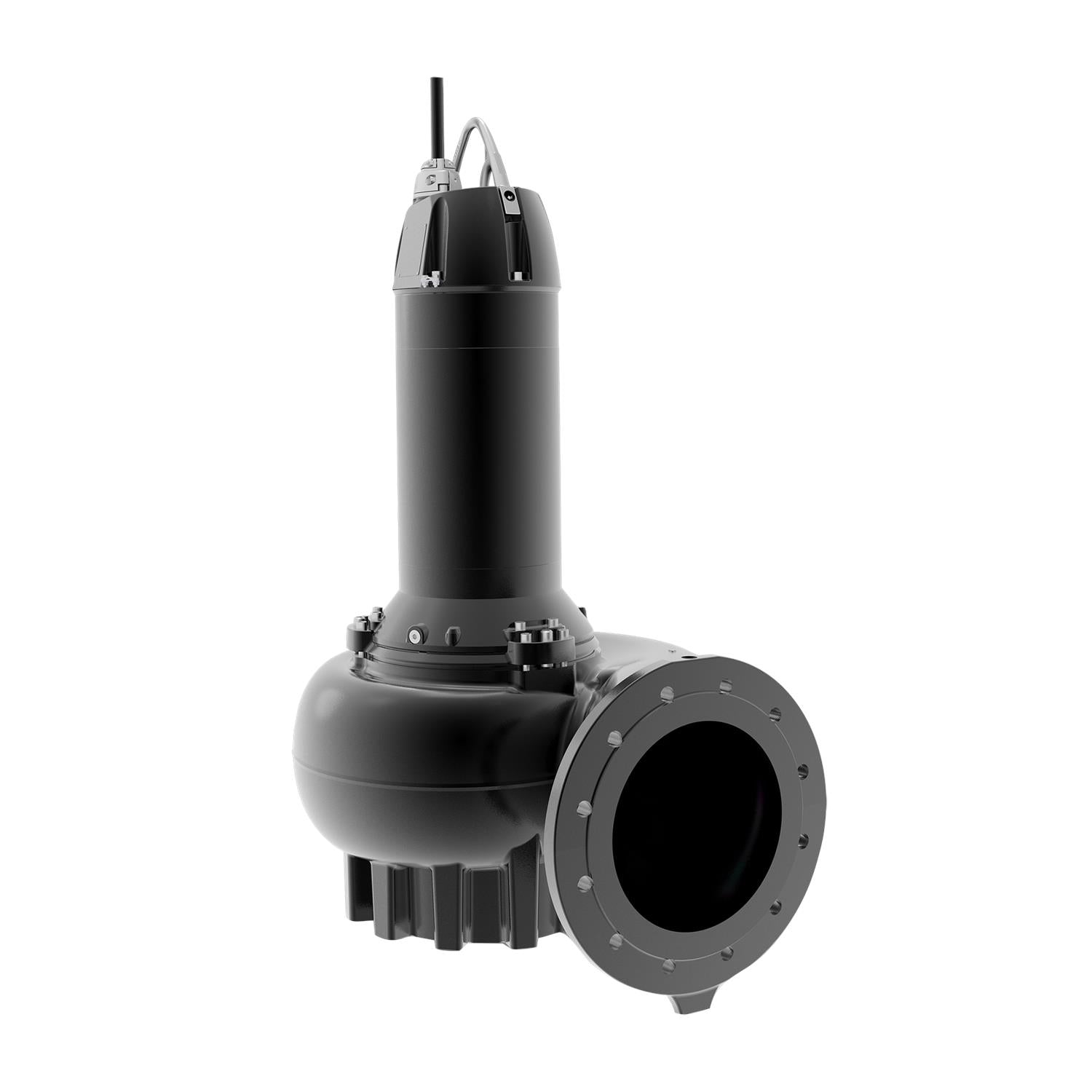

Image shown may not be actual product
Grundfos 99782142 - SL1.30.A40.230.2.52S.EX.61R.A
Grundfos 99782142 - SL1.30.A40.230.2.52S.EX.61R.A
Grundfos 99782142 - SL1.30.A40.230.2.52S.EX.61R.A
Grundfos 99782142 - SL1.30.A40.230.2.52S.EX.61R.A
Grundfos 99782142 - SL1.30.A40.230.2.52S.EX.61R.A
Grundfos 99782142 - SL1.30.A40.230.2.52S.EX.61R.A

Grundfos 99782142 - SL1.30.A40.230.2.52S.EX.61R.A

GRUNDFOSSKU: 99782142
Contact for price
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

SL1. 30. A40. 230. 2. 52S. EX. 61R. A | Non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. The pump is designed for intermittent and continous operations in submerged installation. The revolutionary S-tube® impeller provides free spherical passage of solids up to 3. 15 in and is suitable for wastewater with a dry matter content of up to 3 %. A SmartTrim impeller clearance adjustment system makes it possible to maintain maximum performance. For installation on auto coupling, the Grundfos SmartSeal gasket system provides a leak-proof connection. The pump comes with a high efficient Grundfos motor built on IE3 motor components. The pump is explosion-proof.

EAN 5713834202964
Applications Wastewater
Material Pricing Group 8A
Motor efficiency at full load 1 0.87
Density 62.29 lb/ft³
Size of inlet connection 4 inch
Power input P1 19.5 kW
Pressure rating PN 10
Rated voltage 3 x 230/460 V
Frame range 52
Maximum installation depth 20 m
Inst dry/wet SUBMERGED
Base stand 97632278
Size of outlet connection 4 inch
Maximum current consumption 57 A
Starting current 373 A
Liquid temperature range 32 .. 104 °F
Mains frequency 60 Hz
Insulation class (IEC 85) H
Motor efficiency at 1/2 load 0.82
Built-in motor protection KLIXON
Net weight 631.0 lb
Number of poles 2
Rated speed 3567 rpm
Rated power - P2 17 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.85
Rated current 57/29 A
Cable type S1BN8-F
Voltage tolerance +10/-10 %
Explosion proof yes
Cable size 7G10+5X1.5ST
Cable resistance 1.91 mOhm/m
Moisture sensor with moisture sensors
Sales region Namreg
Length of power cable 15 m
Range of ambient temperature -4 .. 104 °F
Auto-coupling 97626238
Max starts per hour 20
Winding resistance 0.152 Ohm
Cos phi 1/1 0.86
Approvals FM
Maximum flow 58.1 l/s
Flange standard ANSI
Motor Cast iron
Power 1 19.5 kW
Maximum head 128 ft
Size 7G10+5X1.5ST
Housing Cast iron
Cos phi 1/2 0.73
Type of impeller S-TUBE
Type S1BN8-F
Curve tolerance ANSI/HI11.6:2017 3B
Cos phi 3/4 0.82
Connection 4 inch
Max. Particle 80 mm
Impeller Cast iron
Pump housing Cast iron
Standard ANSI
Rated current at no load 17.3 A

Motor Curves

Dimensional Drawing

DWiring Diagram

×
