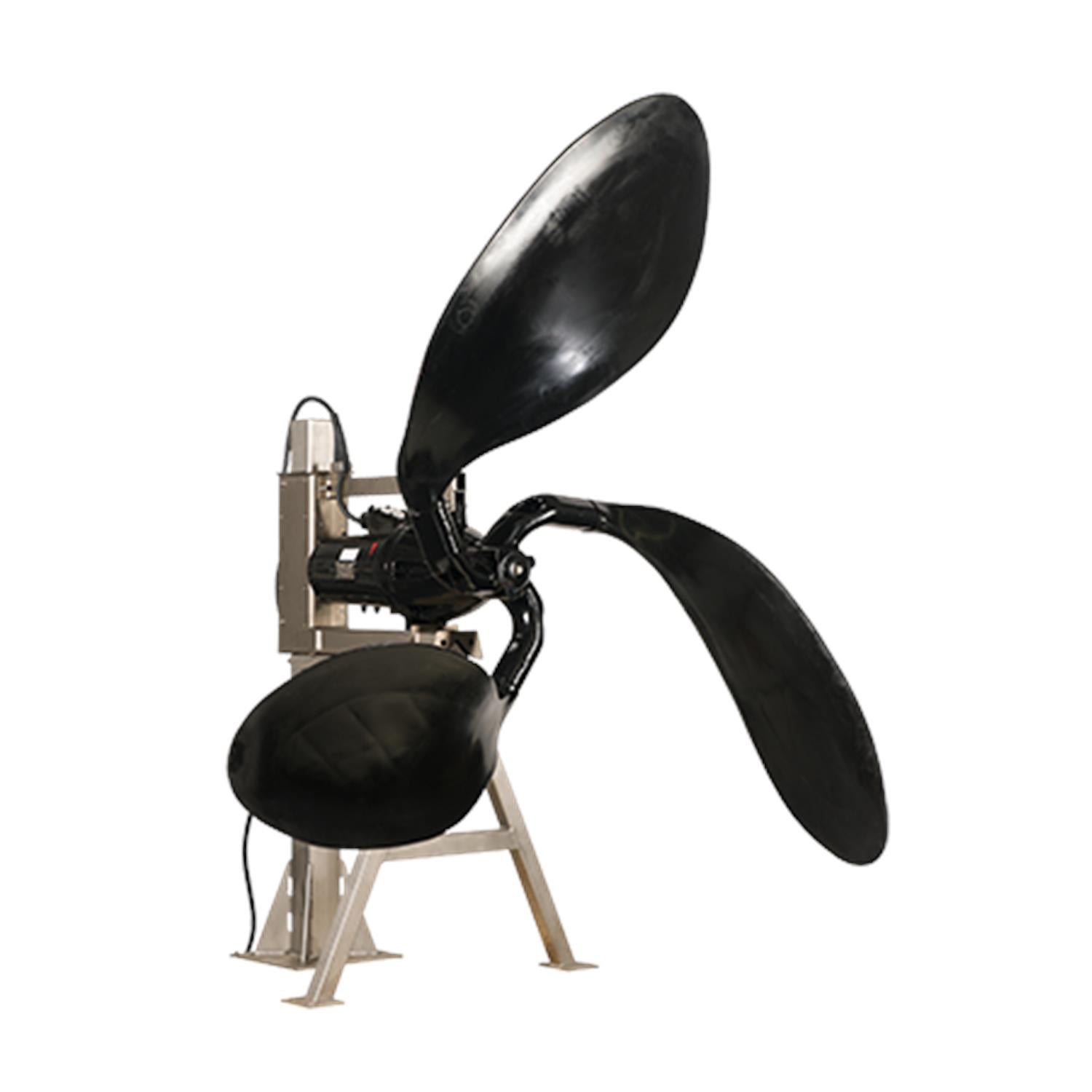

Grundfos 98788101 - SFG.67.102 .35.6.1H
Grundfos 98788101 - SFG.67.102 .35.6.1H
Grundfos 98788101 - SFG.67.102 .35.6.1H
Grundfos 98788101 - SFG.67.102 .35.6.1H
Grundfos 98788101 - SFG.67.102 .35.6.1H
Grundfos 98788101 - SFG.67.102 .35.6.1H

Grundfos 98788101 - SFG.67.102 .35.6.1H

GRUNDFOSSKU: 98788101
Price:
$30,708.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98788101 - SFG.67.102 .35.6.1H This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5712601395311
Applications Wastewater
Motor efficiency at full load 1 0.877
Power factor 1 0.68
Rated voltage 3 x 460 V
Power input - P1 5.7 kW
Maximum installation depth 66 m
Cos phi - p.f. at 1/2 load 0.46
Maximum current consumption 0.46
Starting current 128 A
Pump outlet 0.46
Pump inlet 0.46
Connect code 0.46
Liquid temperature range 5 .. 40 °C
Mains frequency 60 Hz
Insulation class (IEC 85) H
Cos phi - p.f. at 3/4 load 0.59
Motor efficiency at 1/2 load 0.825
Built-in motor protection PTC THERMISTOR
Net weight 370.0 kg
Number of poles 6
Start. method star/delta
Rated power - P2 5 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.862
Rated current 0.4583333333333333
Cable type S1BN8-F 11G2.5
Voltage tolerance +10/-10 %
Explosion proof no
Type of cable plug NO
Length of cable 10 m
Moisture sensor without moisture sensors
pH-value range 45203
Water-in-oil sensor with water-in-oil sensor
Rated flow 3590 l/s
Thrust to power 0.899
Diameter 2600 mm
Motor AISI EN-GJL-250
Power 1 5.7 kW
Size 120/120 mm
Axial trust force 4640 N
Thickness 450 micrometre
Type S1BN8-F 11G2.5
Primary shaft seal 2 RADIAL LIP SEALS
Fits column profile tube, size 120/120 mm
Propeller speed 35 rpm
Mean velocity 0.65 m/s
Standard ISO 21630
Propeller diameter 2600 mm

Motor Curves

Dimensional Drawing

DWiring Diagram
