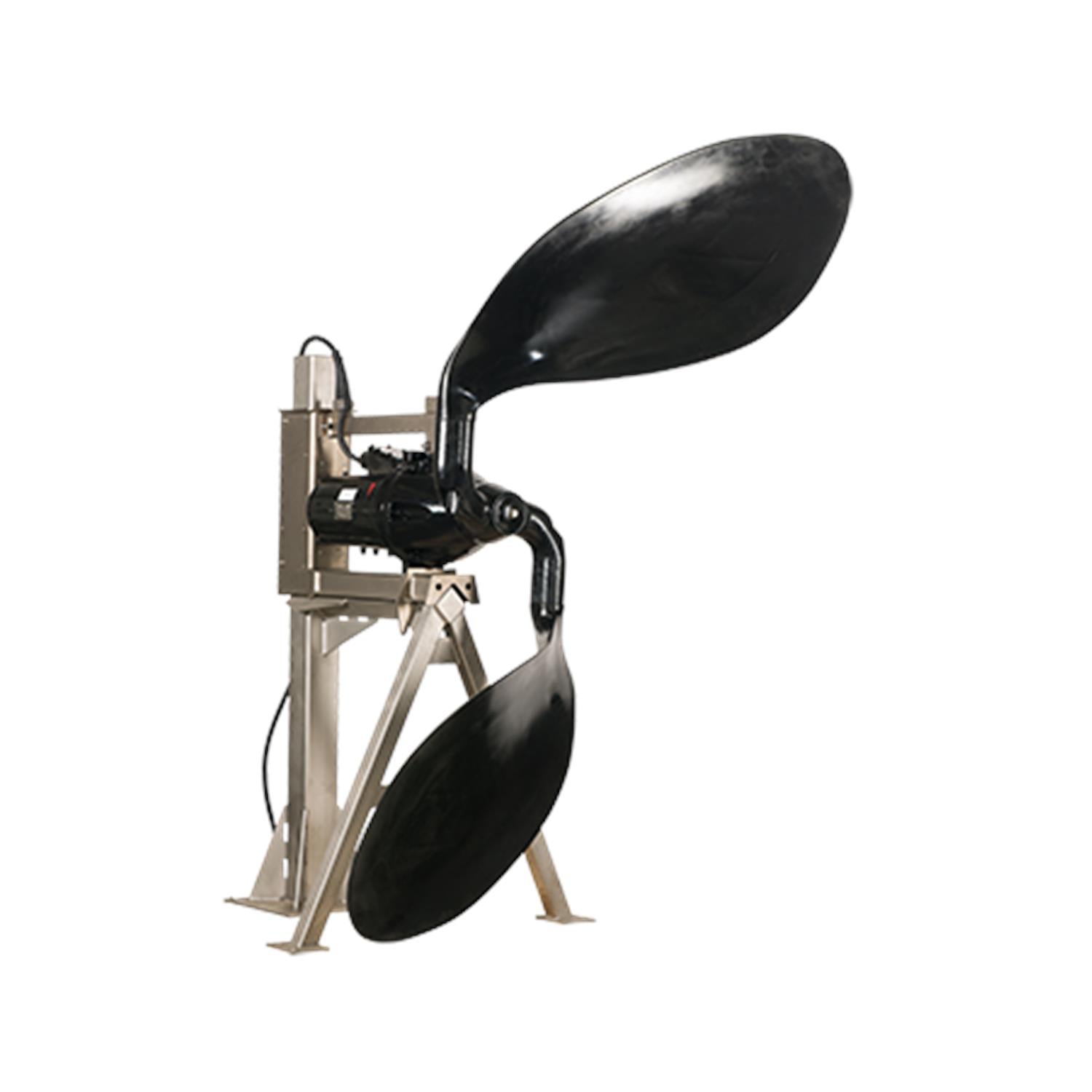

Grundfos 98788142 - SFG.30.102 .29.6.1H
Grundfos 98788142 - SFG.30.102 .29.6.1H
Grundfos 98788142 - SFG.30.102 .29.6.1H
Grundfos 98788142 - SFG.30.102 .29.6.1H
Grundfos 98788142 - SFG.30.102 .29.6.1H
Grundfos 98788142 - SFG.30.102 .29.6.1H

Grundfos 98788142 - SFG.30.102 .29.6.1H

GRUNDFOSSKU: 98788142
Price:
$27,838.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98788142 - SFG.30.102 .29.6.1H This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5712601395724
Applications Wastewater
Motor efficiency at full load 1 0.849
Power factor 1 0.43
Rated voltage 3 x 460 V
Power input - P1 2.6 kW
Maximum installation depth 66 m
Cos phi - p.f. at 1/2 load 0.26
Maximum current consumption 0.26
Starting current 81 A
Pump outlet 0.26
Pump inlet 0.26
Connect code 0.26
Mains frequency 60 Hz
Insulation class (IEC 85) H
Cos phi - p.f. at 3/4 load 0.35
Motor efficiency at 1/2 load 0.757
Built-in motor protection PTC THERMISTOR
Net weight 701.0 lb
Number of poles 6
Start. method star/delta
Rated power - P2 2.2 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.818
Rated current 8.5 A
Cable type S1BN8-F 11G2.5
Voltage tolerance +10/-10 %
Explosion proof no
Type of cable plug NO
Length of cable 15 m
Moisture sensor without moisture sensors
pH-value range 45203
Water-in-oil sensor with water-in-oil sensor
Rated flow 41100 US gpm
Thrust to power 1.068
Diameter 102 in
Motor AISI EN-GJL-250
Power 1 2.6 kW
Size 120/120 mm
Axial trust force 2530 N
Thickness 450 micrometre
Type S1BN8-F 11G2.5
Primary shaft seal 2 RADIAL LIP SEALS
Fits column profile tube, size 120/120 mm
Propeller speed 29 rpm
Mean velocity 0.49 m/s
Standard ISO 21630
Propeller diameter 2600 mm
