Description

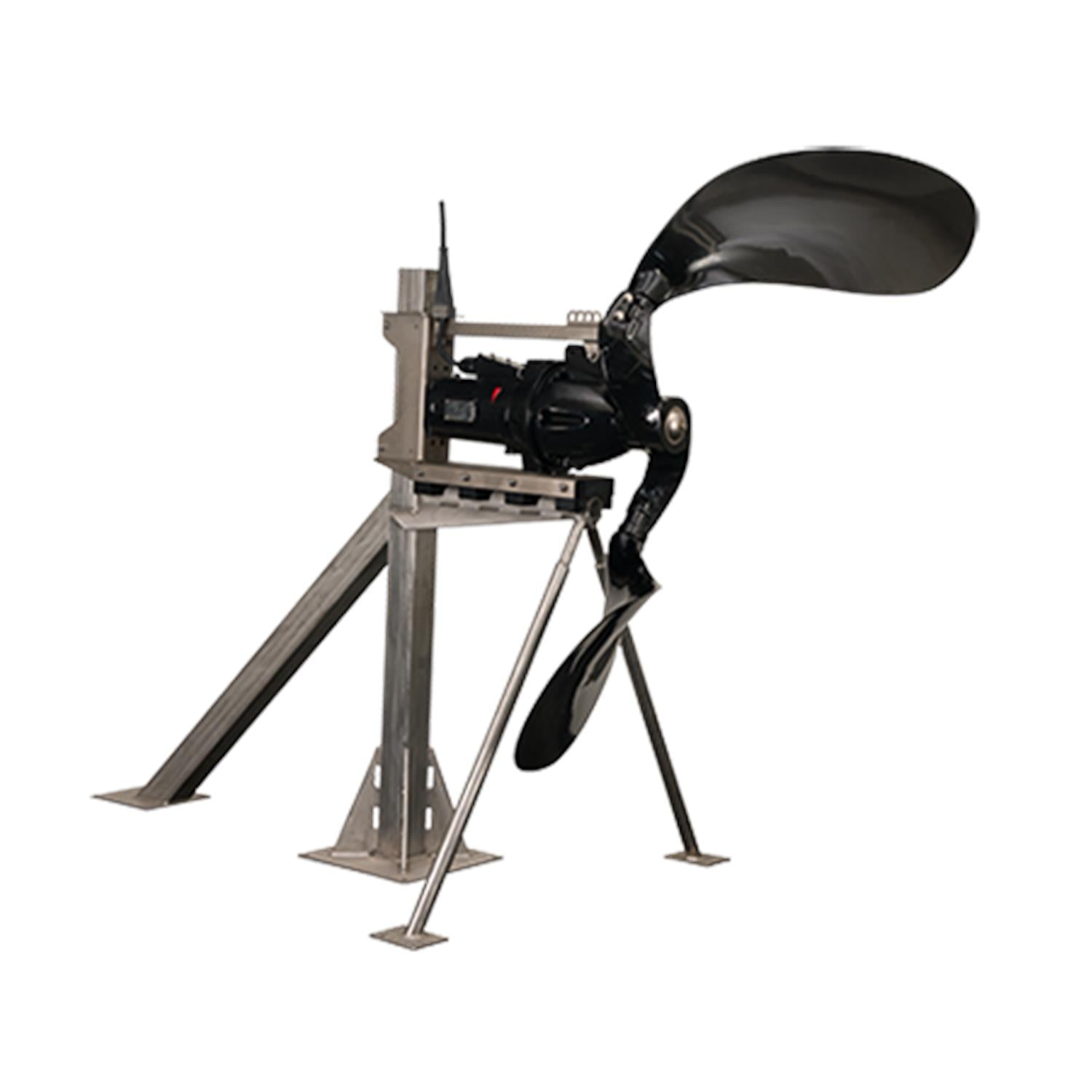

Grundfos 98788137 - SFG.26.91 .37.6.1H This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5712601395670
Applications
Wastewater
Motor efficiency at full load 1
0.881
Power factor 1
0.71
Rated voltage
3 x 460 V
Power input - P1
2.2 kW
Maximum installation depth
66 m
Cos phi - p.f. at 1/2 load
0.48
Maximum current consumption
0.48
Starting current
44 A
Pump outlet
0.48
Pump inlet
0.48
Connect code
0.48
Liquid temperature range
5 .. 40 °C
Mains frequency
60 Hz
Insulation class (IEC 85)
H
Cos phi - p.f. at 3/4 load
0.61
Motor efficiency at 1/2 load
0.832
Built-in motor protection
PTC THERMISTOR
Net weight
182.0 kg
Number of poles
4
Start. method
star/delta
Rated power - P2
1.9 kW
Enclosure class (IEC 34-5)
IP68
Motor efficiency at 3/4 load
0.867
Rated current
4.1 A
Cable type
S1BN8-F 11G1.5
Voltage tolerance
+10/-10 %
Explosion proof
no
Type of cable plug
NO
Length of cable
15 m
Moisture sensor
without moisture sensors
pH-value range
45203
Water-in-oil sensor
with water-in-oil sensor
Rated flow
2060 l/s
Thrust to power
1.036
Diameter
2300 mm
Motor
AISI EN-GJL-250
Power 1
2.2 kW
Size
100/100 mm
Axial trust force
2040 N
Thickness
450 micrometre
Type
S1BN8-F 11G1.5
Primary shaft seal
2 RADIAL LIP SEALS
Fits column profile tube, size
100/100 mm
Propeller speed
37 rpm
Mean velocity
0.5 m/s
Standard
ISO 21630
Propeller diameter
2300 mm
