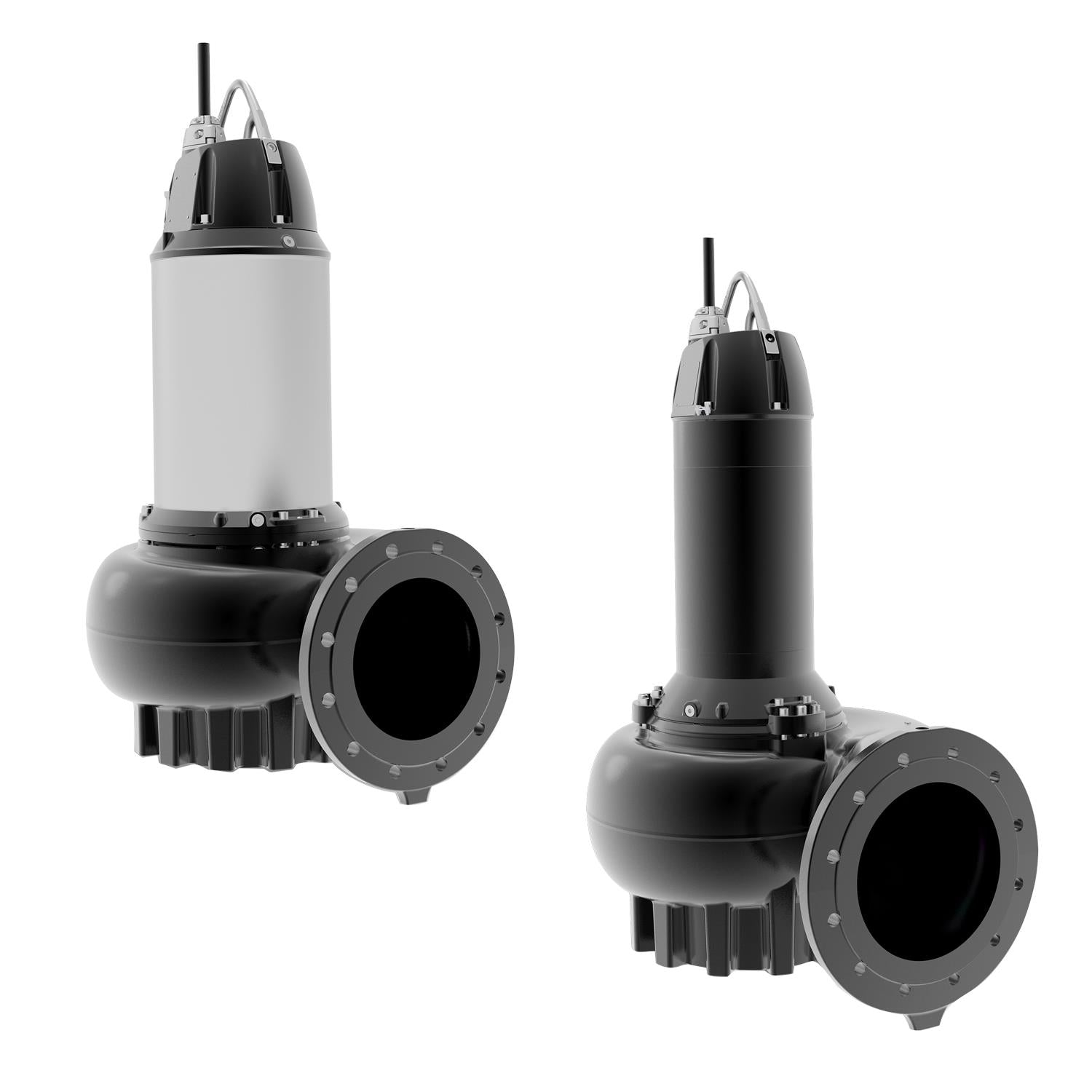

![Grundfos 99781548 - SEV.30.A30.230.2.52H.EX.61R.A]()
![Grundfos 99781548 - SEV.30.A30.230.2.52H.EX.61R.A]()
![Grundfos 99781548 - SEV.30.A30.230.2.52H.EX.61R.A]()
![Grundfos 99781548 - SEV.30.A30.230.2.52H.EX.61R.A]()
![Grundfos 99781548 - SEV.30.A30.230.2.52H.EX.61R.A]()
![Grundfos 99781548 - SEV.30.A30.230.2.52H.EX.61R.A]()
Description
Grundfos 99781548 - SEV.30.A30.230.2.52H.EX.61R.A This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713834193910
Applications
Wastewater
Material Pricing Group
8A
Motor efficiency at full load 1
0.87
Density
62.29 lb/ft³
Size of inlet connection
4 inch
Power input P1
19.5 kW
Pressure rating
PN 10
Rated voltage
3 x 230/460 V
Frame range
52
Inst vertical
92837287
Maximum installation depth
20 m
Inst dry/wet
DRY/SUBMERGED
Base stand
97632229
Size of outlet connection
3 inch
Maximum current consumption
57 A
Starting current
373 A
Liquid temperature range
32 .. 104 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
H
Motor efficiency at 1/2 load
0.82
Built-in motor protection
KLIXON
Net weight
652.0 lb
Number of poles
2
Rated speed
3567 rpm
Rated power - P2
17 kW
Enclosure class (IEC 34-5)
IP68
Motor efficiency at 3/4 load
0.85
Rated current
57/29 A
Cable type
S1BN8-F
Voltage tolerance
+10/-10 %
Explosion proof
yes
Cable size
7G10+5X1.5ST
Cable resistance
1.91 mOhm/m
Moisture sensor
with moisture sensors
Sales region
Namreg
Length of power cable
15 m
Range of ambient temperature
-4 .. 104 °F
Auto-coupling
97626239
Max starts per hour
20
Winding resistance
0.152 Ohm
Inst horizontal
99867049
Cos phi 1/1
0.86
Approvals
FM
Maximum flow
28.1 l/s
Flange standard
ANSI
Motor
Cast iron
Power 1
19.5 kW
Maximum head
164 ft
Size
7G10+5X1.5ST
Housing
Cast iron
Cos phi 1/2
0.73
Type of impeller
SUPER VORTEX
Type
S1BN8-F
Curve tolerance
ANSI/HI11.6:2017 3B
Cos phi 3/4
0.82
Connection
3 inch
Max. Particle
80 mm
Impeller
Cast iron
Pump housing
Cast iron
Standard
ANSI
Rated current at no load
17.3 A
