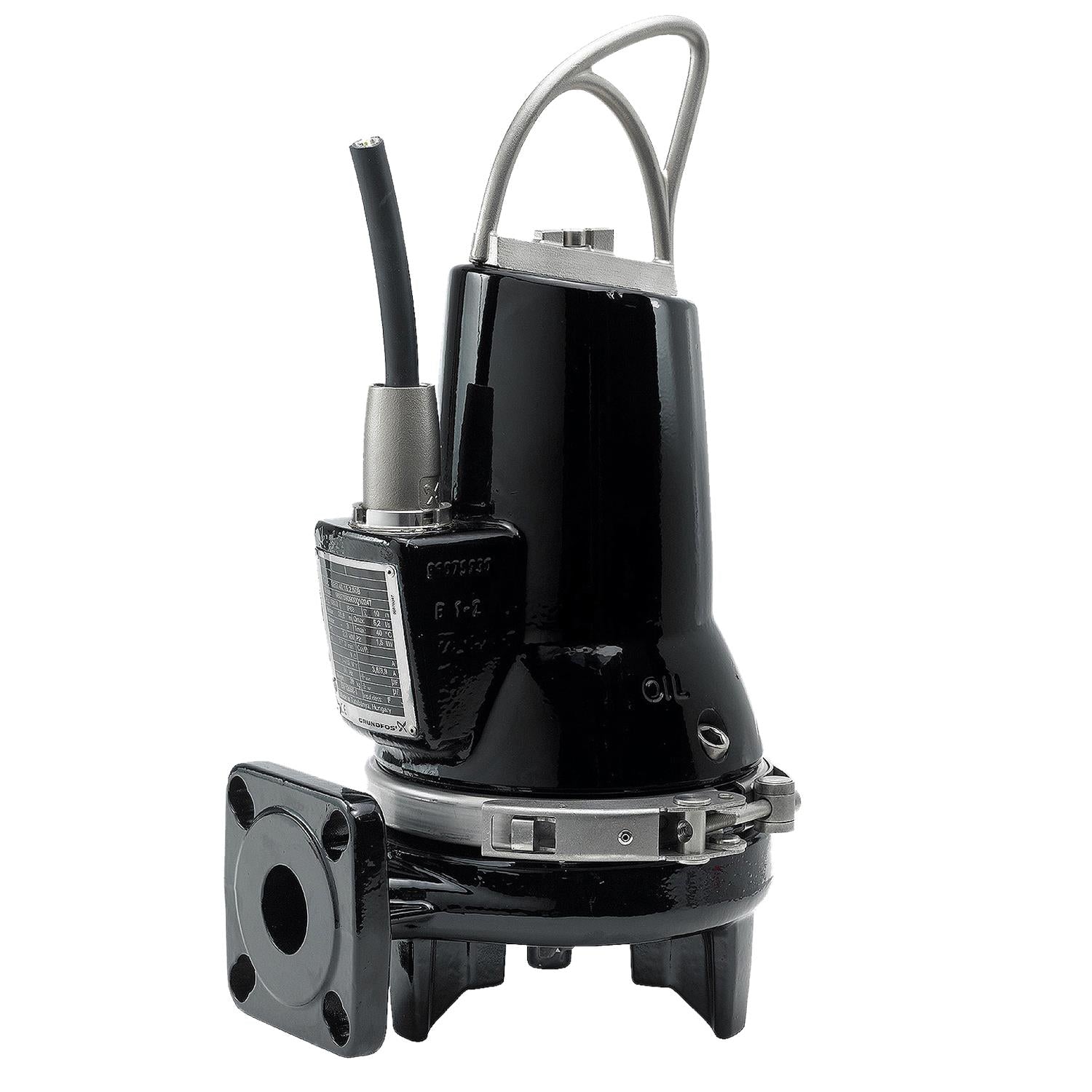

Grundfos 98280865 - SEG.A20.55.2.60M
Grundfos 98280865 - SEG.A20.55.2.60M
Grundfos 98280865 - SEG.A20.55.2.60M
Grundfos 98280865 - SEG.A20.55.2.60M
Grundfos 98280865 - SEG.A20.55.2.60M
Grundfos 98280865 - SEG.A20.55.2.60M

Grundfos 98280865 - SEG.A20.55.2.60M

GRUNDFOSSKU: 98280865
Price:
$4,318.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98280865 - SEG.A20.55.2.60M This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5711492381397
Applications Wastewater, Industrial applications
Material Pricing Group 8C
Motor efficiency at full load 1 0.8
Maximum ambient temperature 104 °F
Density 62.29 lb/ft³
Maximum operating pressure 6 bar
Power factor 1 0.91
Pressure rating PN 10
Rated voltage 3 x 200-230 V
Thermal protec external
Power input - P1 5 kW
Maximum installation depth 10 m
Inst dry/wet SUBMERGED
Moment of inertia 0.57 lb ft²
Size of outlet connection 2 inch
Cos phi - p.f. at 1/2 load 0.66
Maximum current consumption 0.66
Starting current 89.5 A
Pump outlet 0.66
Pump inlet 0.66
Connect code 0.66
Liquid temperature range 32 .. 104 °F
Mains frequency 60 Hz
Insulation class (IEC 85) F
Cos phi - p.f. at 3/4 load 0.79
Motor efficiency at 1/2 load 0.76
Built-in motor protection THERMAL SWITCH
Net weight 179.0 lb
Number of poles 2
Rated speed 3463 rpm
Start. method direct-on-line
Rated power - P2 4 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.8
Rated current 16-14 A
Cable type SEOOW 600V
Voltage tolerance +6/-10 %
Explosion proof no
Type of cable plug No plug
Length of cable 10 m
Additional I/O External
Moisture sensor with moisture sensors
Sales region Namreg
Control box not included
Auto-coupling 98245790
Max starts per hour 30
Max flow 9.17 l/s
AUTOADAPT NO
Approvals PA-I
Flange standard ANSI
Head max 32.6 m
Sens.interface 32.6 m
Valve type 32.6 m
Pipework connection 2"
Motor 32.6 m
Number of leads 32.6 m
Length 32.6 m
Colour 32.6 m
Power 1 5 kW
Pressure retention valve 32.6 m
Approvals and markings 32.6 m
Flow range 32.6 m
Battery back-up 32.6 m
Housing Cast iron
Type of impeller Grinder system
Type SEOOW 600V
Curve tolerance ANSI/HI11.6:2017 3B2
Primary shaft seal SIC/SIC
Connection 2 inch
Impeller Cast iron
Pump housing Cast iron
Standard ANSI
Rated current at no load 4.5 A
