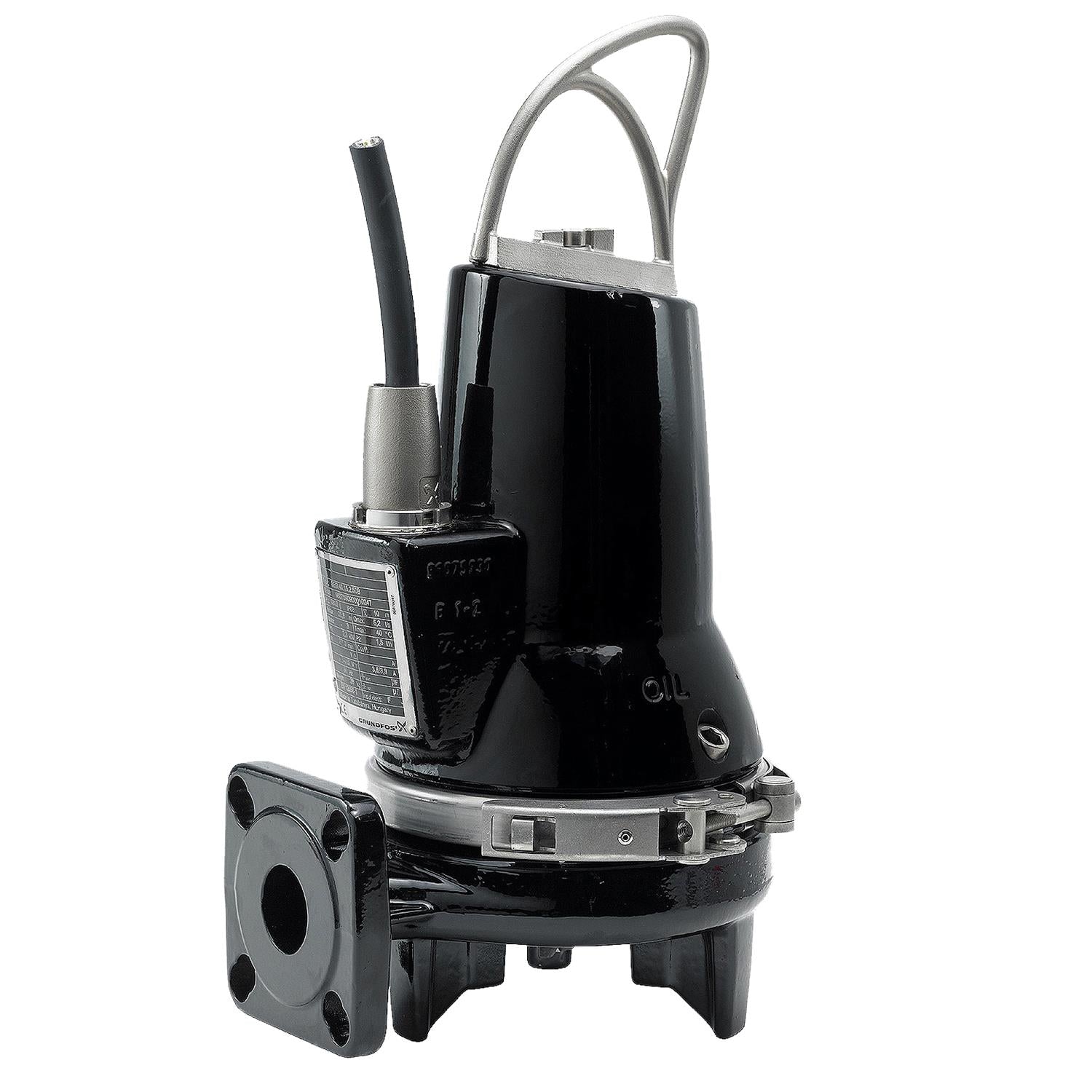

Grundfos 98280891 - SEG.A20.40.2.60H
Grundfos 98280891 - SEG.A20.40.2.60H
Grundfos 98280891 - SEG.A20.40.2.60H
Grundfos 98280891 - SEG.A20.40.2.60H
Grundfos 98280891 - SEG.A20.40.2.60H
Grundfos 98280891 - SEG.A20.40.2.60H

Grundfos 98280891 - SEG.A20.40.2.60H

GRUNDFOSSKU: 98280891
Price:
$4,184.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

SEG. A20. 40. 2. 60H | Grundfos SEG grinder pumps are non-self-priming, single-stage, centrifugal pumps with horizontal discharge port, specifically designed for pumping wastewater containing discharge from toilets. The pump is equipped with a grinder system that grinds destructible solids into small pieces to lead them through pipes with a relatively small diameter. SEG grinder pumps are ideal for use in sparsely populated areas, where gravity sewage systems are not available. Examples include villages, farm areas and areas with large terrain-level differences, where a pressurised system has advantages. The pump is available for two types of installation: submerged installation on auto-coupling systems
submerged installation, free-standing. The pump is made of wear-resistant materials, such as cast iron and stainless steel. These materials ensure reliable operation. The surface of the pump is smooth to prevent dirt and impurities from sticking. The corrosion-resistant stainless steel clamp is securing the motor to the pump housing and allow the easy service of the pump. SmartTrim system allows easy adjustment of the impeller clearance to ensure maximum efficiency during the pump lifespan. The range is designed to reduce energy consumption and keep downtime costs to a minimum, while maintaining peak performance throughout the lifespan of the system.

EAN 5711492381557
Applications Wastewater, Industrial applications
Material Pricing Group 8C
Motor efficiency at full load 1 0.8
Maximum ambient temperature 104 °F
Density 62.29 lb/ft³
Maximum operating pressure 6 bar
Power factor 1 0.88
Pressure rating PN 10
Rated voltage 3 x 460 V
Thermal protec external
Power input - P1 3.9 kW
Maximum installation depth 10 m
Inst dry/wet SUBMERGED
Moment of inertia 0.562 lb ft²
Size of outlet connection 2 inch
Cos phi - p.f. at 1/2 load 0.75
Maximum current consumption 0.75
Starting current 43 A
Pump outlet 0.75
Pump inlet 0.75
Connect code 0.75
Liquid temperature range 32 .. 104 °F
Mains frequency 60 Hz
Insulation class (IEC 85) F
Cos phi - p.f. at 3/4 load 0.83
Motor efficiency at 1/2 load 0.75
Built-in motor protection THERMAL SWITCH
Net weight 179.0 lb
Number of poles 2
Rated speed 3490 rpm
Start. method direct-on-line
Rated power - P2 3.1 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.78
Rated current 0.25
Cable type SEOOW 600V
Voltage tolerance +6/-10 %
Explosion proof no
Type of cable plug No plug
Length of cable 10 m
Additional I/O External
Moisture sensor with moisture sensors
Sales region Namreg
Control box not included
Auto-coupling 98245790
Max starts per hour 30
Max flow 9.17 l/s
AUTOADAPT NO
Approvals PA-I
Flange standard ANSI
Head max 26.4 m
Sens.interface 26.4 m
Valve type 26.4 m
Pipework connection 2"
Motor 26.4 m
Number of leads 26.4 m
Length 26.4 m
Colour 26.4 m
Power 1 3.9 kW
Pressure retention valve 26.4 m
Approvals and markings 26.4 m
Flow range 26.4 m
Battery back-up 26.4 m
Housing Cast iron
Type of impeller Grinder system
Type SEOOW 600V
Curve tolerance ANSI/HI11.6:2017 3B2
Primary shaft seal SIC/SIC
Connection 2 inch
Impeller Cast iron
Pump housing Cast iron
Standard ANSI
Rated current at no load 2.1 A

Motor Curves

Dimensional Drawing

DWiring Diagram
