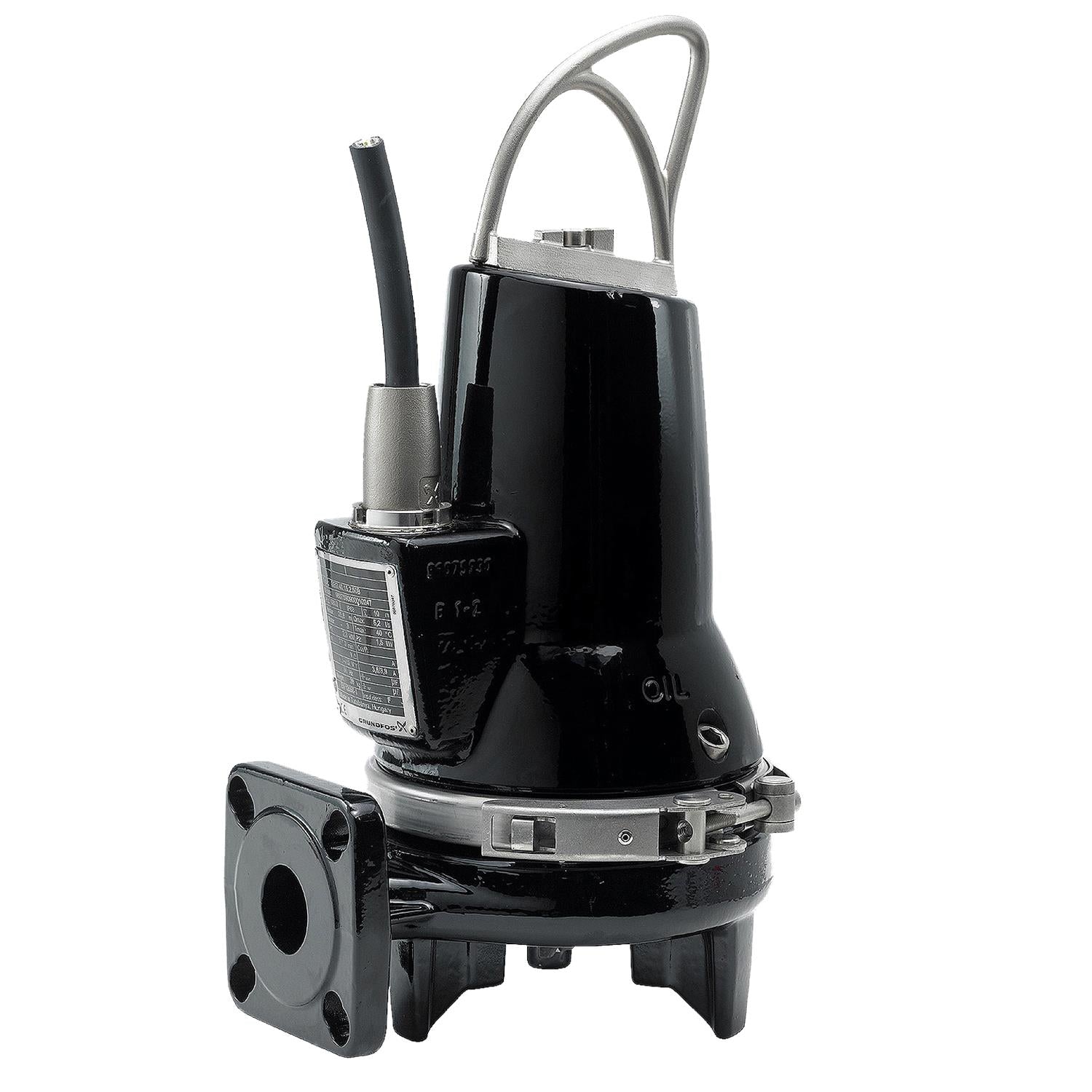

![Grundfos 98280879 - SEG.A20.30.2.60H]()
![Grundfos 98280879 - SEG.A20.30.2.60H]()
![Grundfos 98280879 - SEG.A20.30.2.60H]()
![Grundfos 98280879 - SEG.A20.30.2.60H]()
![Grundfos 98280879 - SEG.A20.30.2.60H]()
![Grundfos 98280879 - SEG.A20.30.2.60H]()
Description
Grundfos 98280879 - SEG.A20.30.2.60H This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5711492381526
Applications
Wastewater, Industrial applications
Material Pricing Group
8C
Motor efficiency at full load 1
0.78
Maximum ambient temperature
104 °F
Density
62.29 lb/ft³
Maximum operating pressure
6 bar
Power factor 1
0.84
Pressure rating
PN 10
Rated voltage
3 x 460 V
Thermal protec
external
Power input - P1
2.8 kW
Maximum installation depth
10 m
Inst dry/wet
SUBMERGED
Moment of inertia
0.335 lb ft²
Size of outlet connection
2 inch
Cos phi - p.f. at 1/2 load
0.7
Maximum current consumption
0.7
Starting current
34 A
Pump outlet
0.7
Pump inlet
0.7
Connect code
0.7
Liquid temperature range
32 .. 104 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Cos phi - p.f. at 3/4 load
0.81
Motor efficiency at 1/2 load
0.7
Built-in motor protection
THERMAL SWITCH
Net weight
179.0 lb
Number of poles
2
Rated speed
3500 rpm
Start. method
direct-on-line
Rated power - P2
2.2 kW
Enclosure class (IEC 34-5)
IP68
Motor efficiency at 3/4 load
0.75
Rated current
0.20833333333333334
Cable type
SEOOW 600V
Voltage tolerance
+6/-10 %
Explosion proof
no
Type of cable plug
No plug
Length of cable
10 m
Additional I/O
External
Moisture sensor
with moisture sensors
Sales region
Namreg
Control box
not included
Auto-coupling
98245790
Max starts per hour
30
Max flow
10 l/s
AUTOADAPT
NO
Approvals
PA-I
Flange standard
ANSI
Head max
16.8 m
Sens.interface
16.8 m
Valve type
16.8 m
Pipework connection
2"
Motor
16.8 m
Number of leads
16.8 m
Length
16.8 m
Colour
16.8 m
Power 1
2.8 kW
Pressure retention valve
16.8 m
Approvals and markings
16.8 m
Flow range
16.8 m
Battery back-up
16.8 m
Housing
Cast iron
Type of impeller
Grinder system
Type
SEOOW 600V
Curve tolerance
ANSI/HI11.6:2017 3B2
Primary shaft seal
SIC/SIC
Connection
2 inch
Impeller
Cast iron
Pump housing
Cast iron
Standard
ANSI
Rated current at no load
0.08333333333333333
Motor Curves
