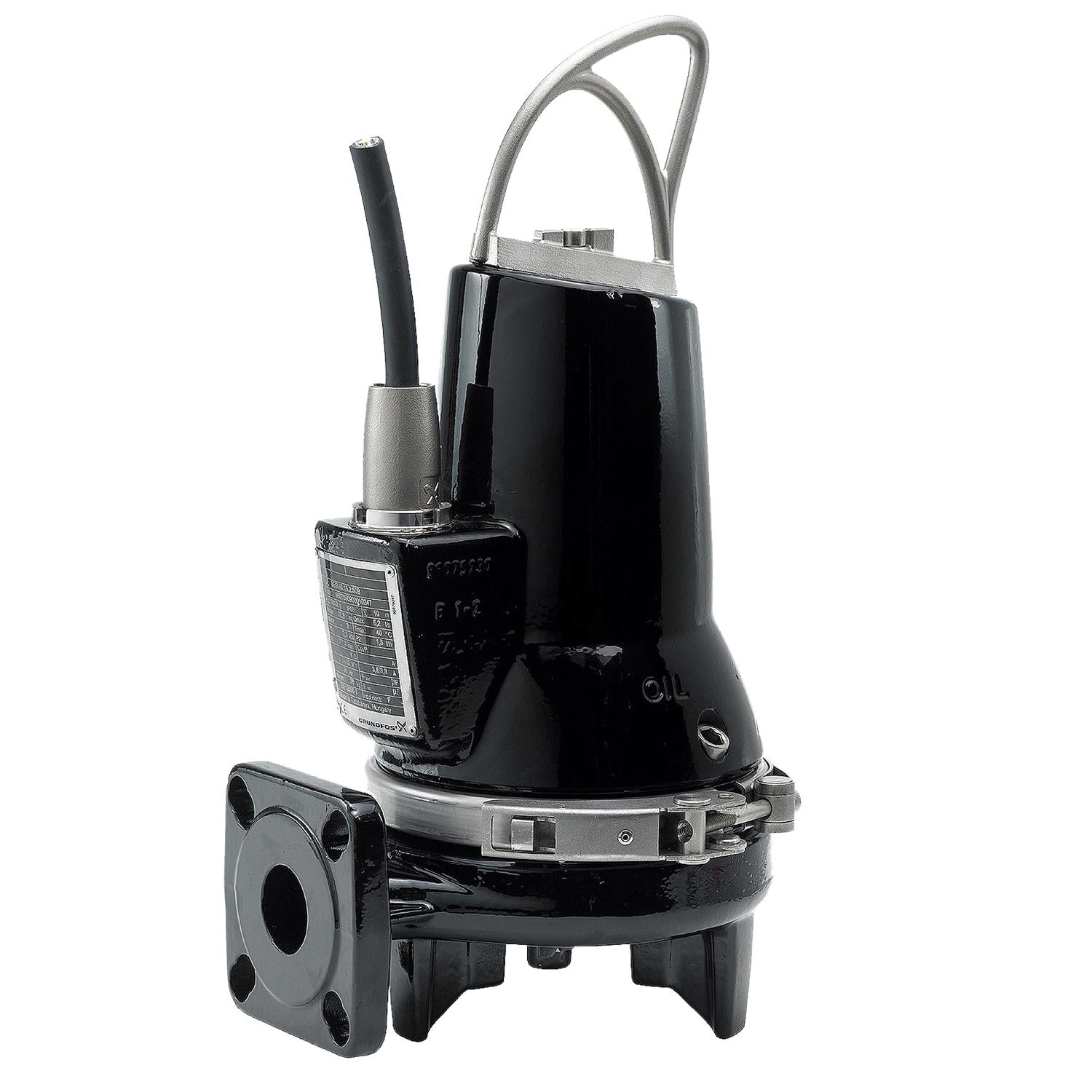

Grundfos 98682339 - SEG.A15.20.R2.2.60H
Grundfos 98682339 - SEG.A15.20.R2.2.60H
Grundfos 98682339 - SEG.A15.20.R2.2.60H
Grundfos 98682339 - SEG.A15.20.R2.2.60H
Grundfos 98682339 - SEG.A15.20.R2.2.60H
Grundfos 98682339 - SEG.A15.20.R2.2.60H

Grundfos 98682339 - SEG.A15.20.R2.2.60H

GRUNDFOSSKU: 98682339
Price:
$2,656.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98682339 - SEG.A15.20.R2.2.60H This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5711499540124
Applications Wastewater, Industrial applications
Material Pricing Group 8B
Motor efficiency at full load 1 0.74
Maximum ambient temperature 104 °F
Density 62.29 lb/ft³
Maximum operating pressure 6 bar
Power factor 1 0.61
Pressure rating PN 10
Rated voltage 3 x 460 V
Thermal protec external
Power input - P1 1.2 kW
Maximum installation depth 10 m
Inst dry/wet SUBMERGED
Moment of inertia 0.047 lb ft²
Size of outlet connection 1 1/2 inch
Cos phi - p.f. at 1/2 load 0.42
Maximum current consumption 0.42
Starting current 20 A
Pump outlet 0.42
Pump inlet 0.42
Connect code 0.42
Liquid temperature range 32 .. 104 °F
Mains frequency 60 Hz
Insulation class (IEC 85) F
Cos phi - p.f. at 3/4 load 0.52
Motor efficiency at 1/2 load 0.61
Built-in motor protection THERMAL SWITCH
Net weight 101.0 lb
Number of poles 2
Rated speed 3490 rpm
Start. method direct-on-line
Rated power - P2 0.9 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.67
Rated current 0.125
Cable type SEOOW 600V
Voltage tolerance +6/-10 %
Explosion proof no
Type of cable plug No plug
Length of cable 10 m
Moisture sensor with moisture sensors
Control box not included
Auto-coupling 98245788
Max starts per hour 30
Max flow 4.17 l/s
AUTOADAPT NO
Approvals PA-I
Flange standard ANSI
Head max 13.8 m
Sens.interface 13.8 m
Valve type 13.8 m
Pipework connection 1 1/2" /2"
Motor 13.8 m
Number of leads 13.8 m
Length 13.8 m
Colour 13.8 m
Power 1 1.2 kW
Pressure retention valve 13.8 m
Approvals and markings 13.8 m
Flow range 13.8 m
Battery back-up 13.8 m
Housing Cast iron
Type of impeller Grinder system
Type SEOOW 600V
Curve tolerance ANSI/HI11.6:2017 3B2
Primary shaft seal SIC/SIC
Connection 1 1/2 inch
Impeller Cast iron
Pump housing Cast iron
Standard ANSI
Rated current at no load 1.6 A

Motor Curves

Dimensional Drawing

DWiring Diagram
