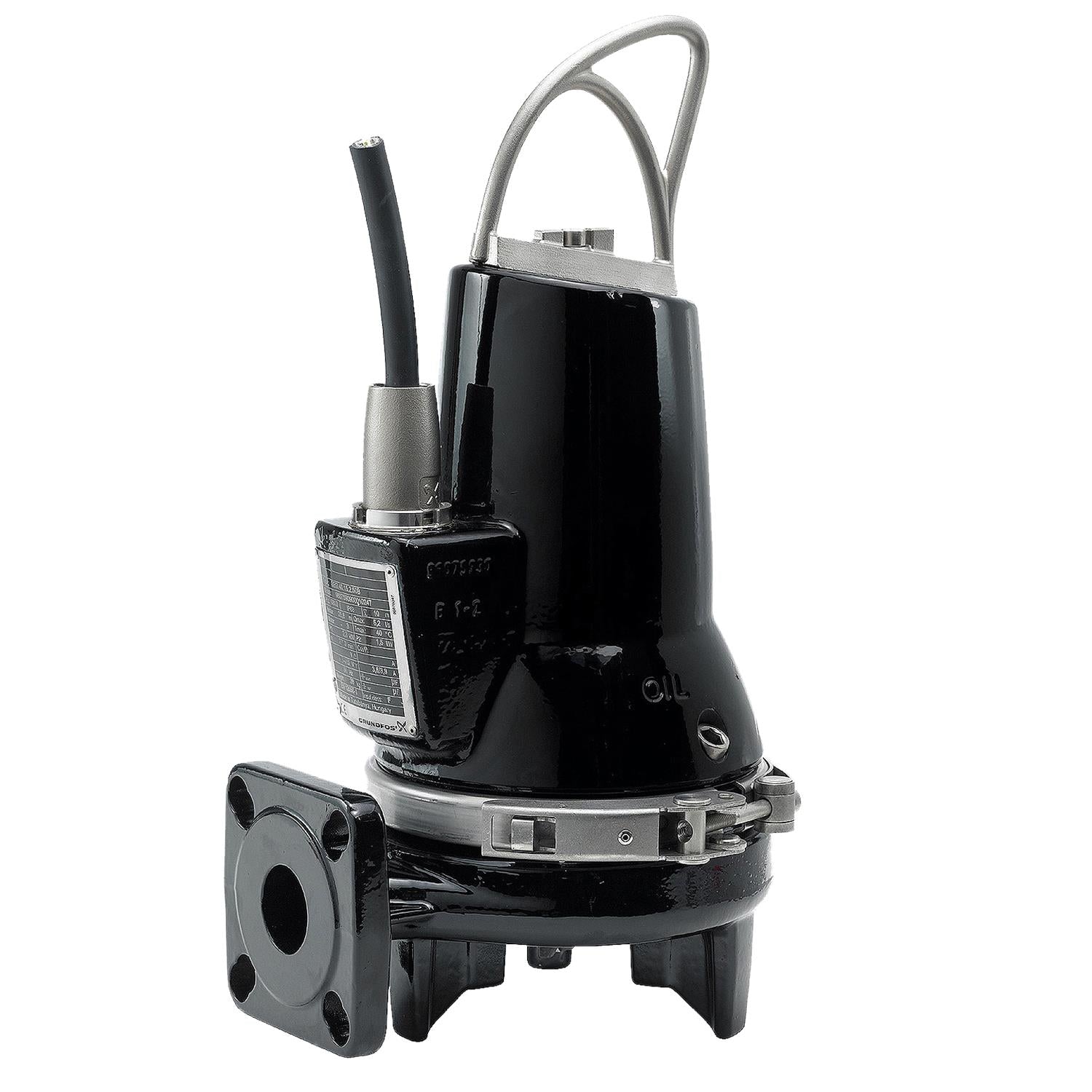

Image shown may not be actual product
Grundfos 98682359 - SEG.A15.20.R1.2.1.603
Grundfos 98682359 - SEG.A15.20.R1.2.1.603
Grundfos 98682359 - SEG.A15.20.R1.2.1.603
Grundfos 98682359 - SEG.A15.20.R1.2.1.603

Grundfos 98682359 - SEG.A15.20.R1.2.1.603

GRUNDFOSSKU: 98682359
Price:
$2,656.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98682359 - SEG.A15.20.R1.2.1.603 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5711499540353
Applications Wastewater, Industrial applications
Motor efficiency at full load 1 0.74
Maximum ambient temperature 104 °F
Density 62.29 lb/ft³
Maximum operating pressure 6 bar
Power factor 1 0.91
Pressure rating PN 10
Rated voltage 1 x 208-230 V
Thermal protec external
Power input - P1 1.6 kW
Maximum installation depth 10 m
Inst dry/wet SUBMERGED
Moment of inertia 0.047 lb ft²
Size of outlet connection 1 1/2 inch
Cos phi - p.f. at 1/2 load 0.8
Maximum current consumption 0.8
Starting current 48 A
Pump outlet 0.8
Pump inlet 0.8
Connect code 0.8
Liquid temperature range 32 .. 104 °F
Mains frequency 60 Hz
Insulation class (IEC 85) F
Cos phi - p.f. at 3/4 load 0.82
Motor efficiency at 1/2 load 0.66
Built-in motor protection THERMAL SWITCH
Net weight 106.0 lb
Number of poles 2
Rated speed 3450 rpm
Start. method direct-on-line
Capacitor size - run 40 µF
Rated power - P2 1.2 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.73
Rated current 9-8 A
Cable type SEOOW 600V
Voltage tolerance +6/-10 %
Explosion proof no
Type of cable plug No plug
Length of cable 10 m
Additional I/O External
Moisture sensor with moisture sensors
Sales region Namreg
Control box not included
Auto-coupling 98245788
Max starts per hour 30
Max flow 4.17 l/s
Capacitor size - start 150 µF
AUTOADAPT NO
Approvals PA-I
Flange standard ANSI
Head max 17 m
Sens.interface 17 m
Valve type 17 m
Pipework connection 1 1/2" /2"
Motor 17 m
Number of leads 17 m
Length 17 m
Colour 17 m
Power 1 1.6 kW
Pressure retention valve 17 m
Approvals and markings 17 m
Flow range 17 m
Battery back-up 17 m
Housing Cast iron
Type of impeller Grinder system
Type SEOOW 600V
Curve tolerance ANSI/HI11.6:2017 3B2
Primary shaft seal SIC/SIC
Connection 1 1/2 inch
Impeller Cast iron
Pump housing Cast iron
Standard ANSI
Rated current at no load 7.2 A
