Description

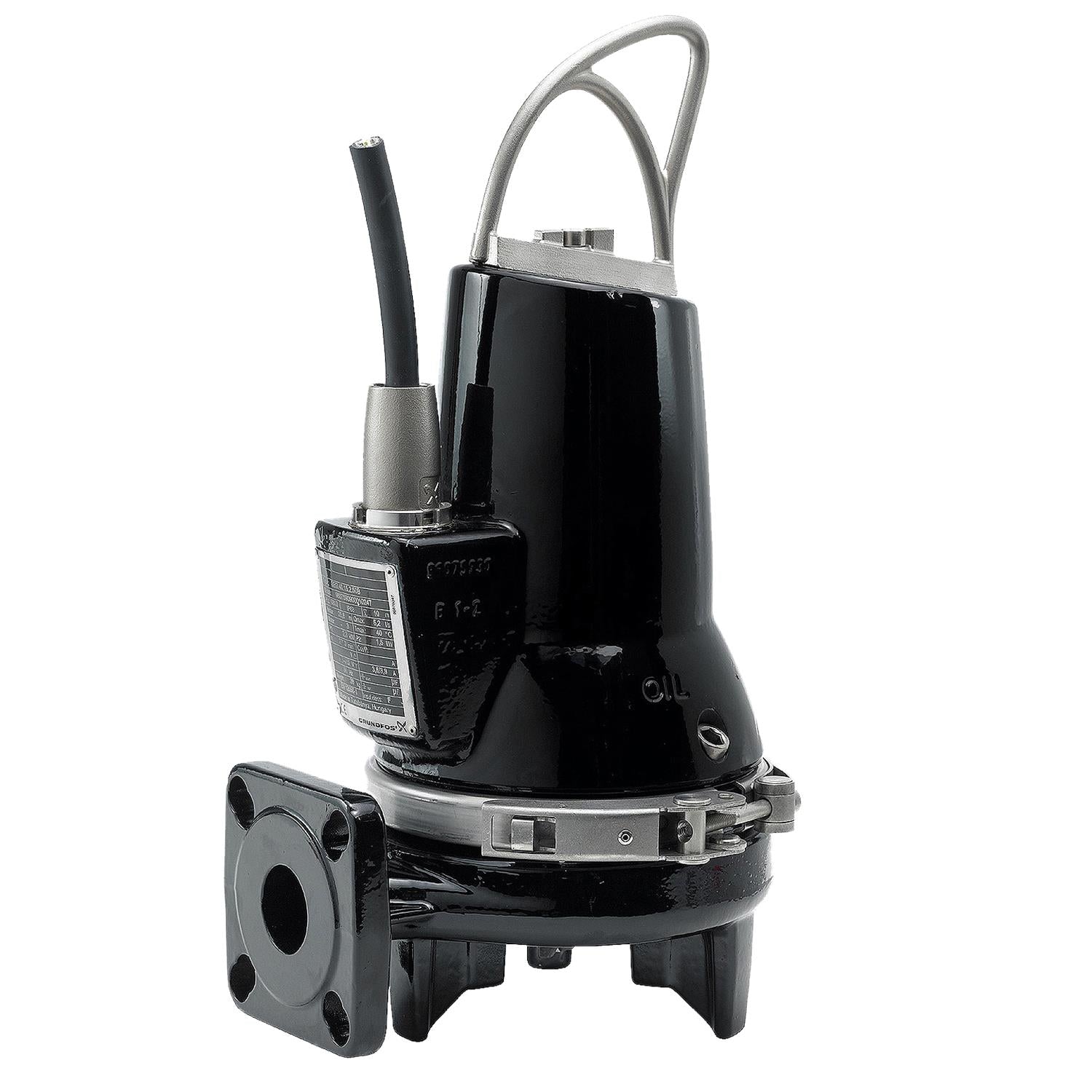

Grundfos 98280868 - SEG.A15.20.EX.2.1.603 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5711492381434
Applications
Wastewater, Industrial applications
Material Pricing Group
8B
Motor efficiency at full load 1
0.71
Maximum ambient temperature
104 °F
Density
62.29 lb/ft³
Maximum operating pressure
6 bar
Power factor 1
0.88
Pressure rating
PN 10
Rated voltage
1 x 208-230 V
Thermal protec
external
Power input - P1
2.1 kW
Maximum installation depth
10 m
Inst dry/wet
SUBMERGED
Moment of inertia
0.047 lb ft²
Size of outlet connection
1 1/2 inch
Cos phi - p.f. at 1/2 load
0.26
Maximum current consumption
0.26
Starting current
48 A
Pump outlet
0.26
Pump inlet
0.26
Connect code
0.26
Liquid temperature range
32 .. 104 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Cos phi - p.f. at 3/4 load
0.54
Motor efficiency at 1/2 load
0.6
Built-in motor protection
THERMAL SWITCH
Net weight
101.0 lb
Number of poles
2
Rated speed
3400 rpm
Start. method
direct-on-line
Capacitor size - run
40 µF
Rated power - P2
1.5 kW
Enclosure class (IEC 34-5)
IP68
Motor efficiency at 3/4 load
0.7
Rated current
12-11 A
Cable type
SEOOW 600V
Voltage tolerance
+6/-10 %
Explosion proof
yes
Type of cable plug
No plug
Length of cable
10 m
Additional I/O
External
Moisture sensor
with moisture sensors
Sales region
Namreg
Control box
not included
Auto-coupling
98245788
Max starts per hour
30
Max flow
4.17 l/s
Capacitor size - start
150 µF
AUTOADAPT
NO
Approvals
CSA
Flange standard
ANSI
Head max
23 m
Sens.interface
23 m
Valve type
23 m
Pipework connection
1 1/2" /2"
Motor
23 m
Number of leads
23 m
Length
23 m
Colour
23 m
Power 1
2.1 kW
Pressure retention valve
23 m
Approvals and markings
23 m
Flow range
23 m
Battery back-up
23 m
Housing
Cast iron
Type of impeller
Grinder system
Type
SEOOW 600V
Curve tolerance
ANSI/HI11.6:2017 3B2
Primary shaft seal
SIC/SIC
Connection
1 1/2 inch
Impeller
Cast iron
Pump housing
Cast iron
Standard
ANSI
Rated current at no load
6.9 A
