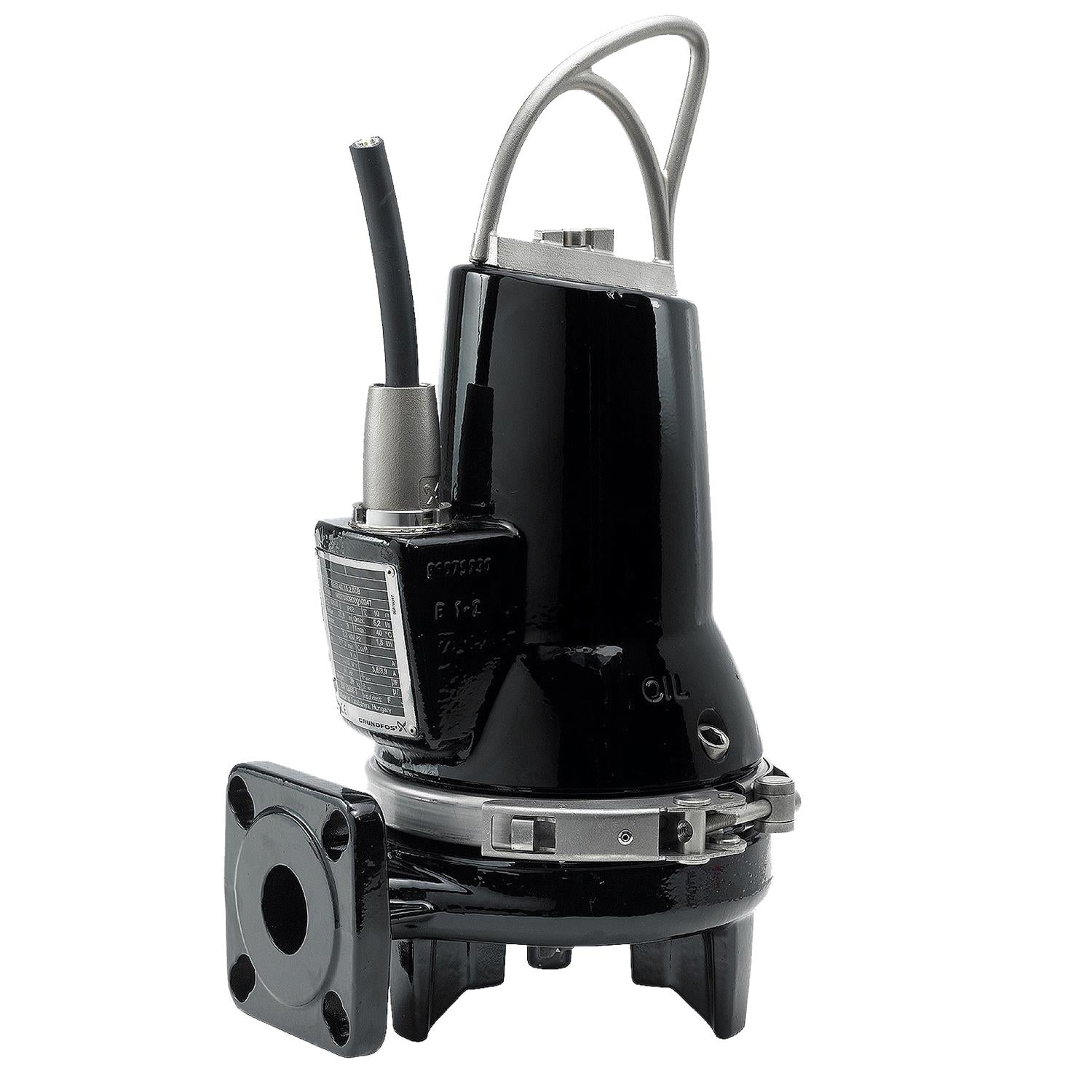

![Grundfos 98280869 - SEG.A15.20.2.60H]()
![Grundfos 98280869 - SEG.A15.20.2.60H]()
![Grundfos 98280869 - SEG.A15.20.2.60H]()
![Grundfos 98280869 - SEG.A15.20.2.60H]()
![Grundfos 98280869 - SEG.A15.20.2.60H]()
![Grundfos 98280869 - SEG.A15.20.2.60H]()
Description
Grundfos 98280869 - SEG.A15.20.2.60H This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5711492381441
Applications
Wastewater, Industrial applications
Material Pricing Group
8B
Motor efficiency at full load 1
0.78
Maximum ambient temperature
104 °F
Density
62.29 lb/ft³
Maximum operating pressure
6 bar
Power factor 1
0.8
Pressure rating
PN 10
Rated voltage
3 x 460 V
Thermal protec
external
Power input - P1
1.9 kW
Maximum installation depth
10 m
Inst dry/wet
SUBMERGED
Moment of inertia
0.047 lb ft²
Size of outlet connection
1 1/2 inch
Cos phi - p.f. at 1/2 load
0.7
Maximum current consumption
0.7
Starting current
20 A
Pump outlet
0.7
Pump inlet
0.7
Connect code
0.7
Liquid temperature range
32 .. 104 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Cos phi - p.f. at 3/4 load
0.75
Motor efficiency at 1/2 load
0.7
Built-in motor protection
THERMAL SWITCH
Net weight
101.0 lb
Number of poles
2
Rated speed
3405 rpm
Start. method
direct-on-line
Rated power - P2
1.5 kW
Enclosure class (IEC 34-5)
IP68
Motor efficiency at 3/4 load
0.76
Rated current
0.16666666666666666
Cable type
SEOOW 600V
Voltage tolerance
+6/-10 %
Explosion proof
no
Type of cable plug
No plug
Length of cable
10 m
Additional I/O
External
Moisture sensor
with moisture sensors
Sales region
Namreg
Control box
not included
Auto-coupling
98245788
Max starts per hour
30
Max flow
4.17 l/s
AUTOADAPT
NO
Approvals
PA-I
Flange standard
ANSI
Head max
22.8 m
Sens.interface
22.8 m
Valve type
22.8 m
Pipework connection
1 1/2" /2"
Motor
22.8 m
Number of leads
22.8 m
Length
22.8 m
Colour
22.8 m
Power 1
1.9 kW
Pressure retention valve
22.8 m
Approvals and markings
22.8 m
Flow range
22.8 m
Battery back-up
22.8 m
Housing
Cast iron
Type of impeller
Grinder system
Type
SEOOW 600V
Curve tolerance
ANSI/HI11.6:2017 3B2
Primary shaft seal
SIC/SIC
Connection
1 1/2 inch
Impeller
Cast iron
Pump housing
Cast iron
Standard
ANSI
Rated current at no load
1.6 A
