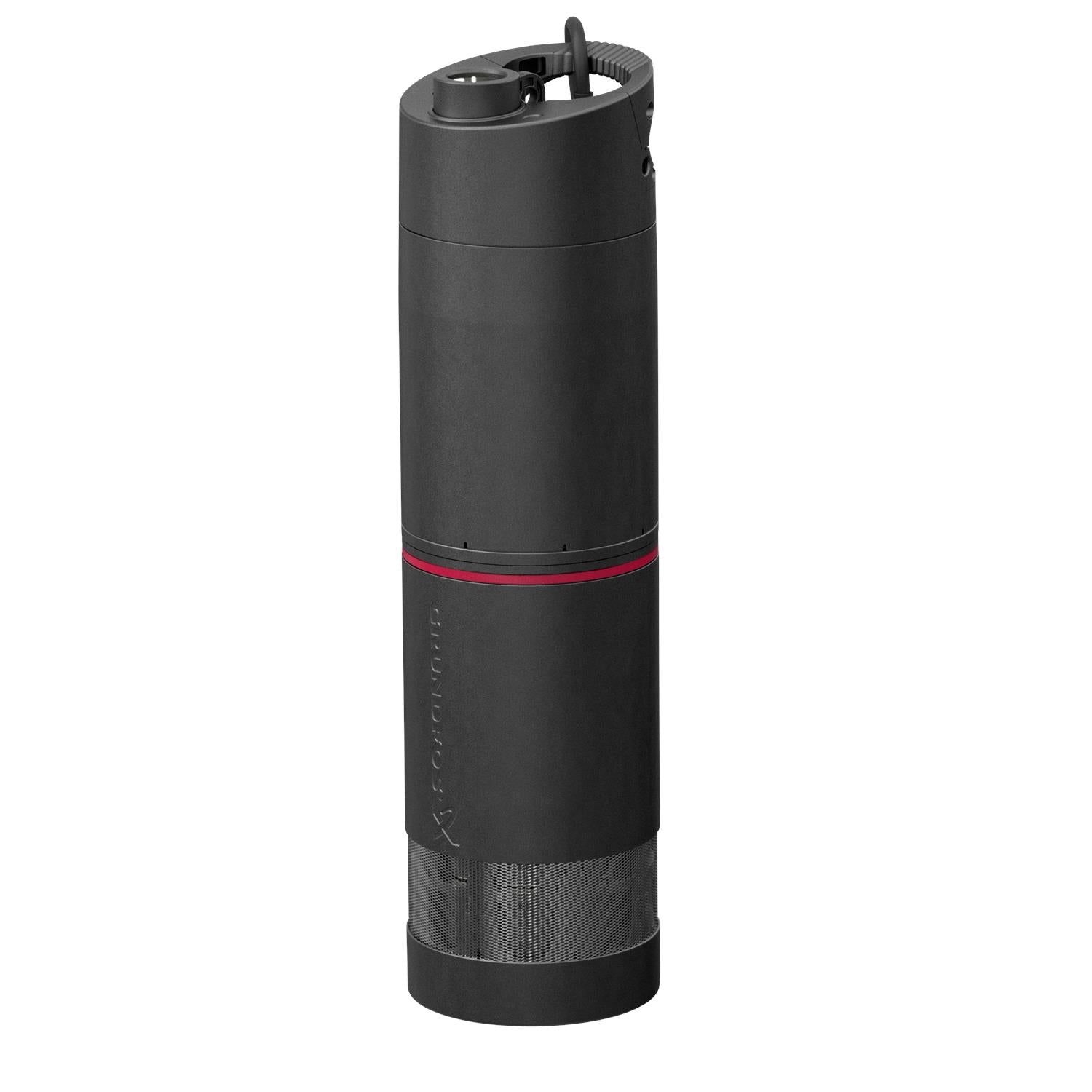

Grundfos 97896332 - SBA 3-45 M
Roll over image to zoom in Click on image to zoom
Grundfos 97896332 - SBA 3-45 M
Grundfos Pumps & Systems

Grundfos 97896332 - SBA 3-45 M

GRUNDFOSSKU: 97896332

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
SBA 3-45 M · Grundfos Accessory / Spare Part / Control
ACC1HP110-120V1-Phase60 HzIP68Composite

The Grundfos 97896332 (SBA 3-45 M) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 12.9US gpm at 98.43ft. Rated 110-120V, 1-Phase, 60 Hz. Applications include Residential rainwater harvesting, Residential water pressure boosting, Ground water transfer.

Power
1HP
Voltage
110-120V
Phase
1-Phase
Max Flow
12.9US gpm
Max Head
98.43ft
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — SBA 3-45 M
Series: ACC
Model Code: SBA 3-45 M
Impeller Material: Composite
Housing Material: Composite
Flange Rating: PN 6
Technical Specifications
Model Number 97896332
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 1HP
Voltage 110-120V
Phase 1-Phase
Frequency 60 Hz
Motor Speed 3400rpm
Full Load Current 9.8A
Motor Protection YES
Insulation Class F
Protection Class (IP) IP68
Nominal Flow 12.9US gpm
Nominal Head 98.43ft
Max Fluid Temperature 104°F
Max Ambient Temperature 122°F
Outlet Connection NPT 1"
Pipe Pressure Rating PN 6
Impeller Material Composite
Housing Material Composite
Approvals / Certifications CSA
Applications
Residential rainwater harvesting
Residential water pressure boosting
Ground water transfer
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 110-120V, 1-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 104°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — SBA 3-45 M
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 97896332 · SBA 3-45 MAuthorized Grundfos Distributor · pump-stop.com
EAN
5710626001972
Applications
Pressure boosting, Domestic water supply
Adjustable start pressure (Yes/No)
N
Approvals
CSA
Built-in motor protection
YES
Cable type
SJTWA 3AWG18
Capacitor size - run
30 µF/250 V
Connection
PN 6
Cos phi
0.944
Curve tolerance
ISO9906:2012 3B
Density
62.29 lb/ft³
Enclosure class (IEC 34-5)
IP68
Gross weight
27.6 lb
Housing
Composite
Impeller
Composite
Impellers
3
Insulation class (IEC 85)
F
Length of cable
13.7 m
Liquid temperature range
32 .. 104 °F
Mains frequency
60 Hz
Material Pricing Group
16
Max. Particle
1 mm
Maximum head
147.6 ft
Maximum installation depth
10 m
Net weight
24.5 lb
pH-value range
45173
Power 1
1.05 kW
Power input P1
1.05 kW
Pressure rating for connection
PN 6
Product family
SBA
Pump housing
Composite
Pump outlet
NPT 1"
Pumped liquid
Water
Range of ambient temperature
14 .. 122 °F
Rated current
9.8 A
Rated flow
12.9 US gpm
Rated head
98.43 ft
Rated power - P2
0.75 kW
Rated speed
3400 rpm
Rated voltage
1 x 110-120 V
Real Time
Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Return valve
YES
Selected liquid temperature
68 °F
Start pressure
2.2 bar
Starting current
26 A
Type
SJTWA 3AWG18
Type of cable plug
NEMA 5-15P
Type of inlet connection
STRAINER
Valve
YES
