Description

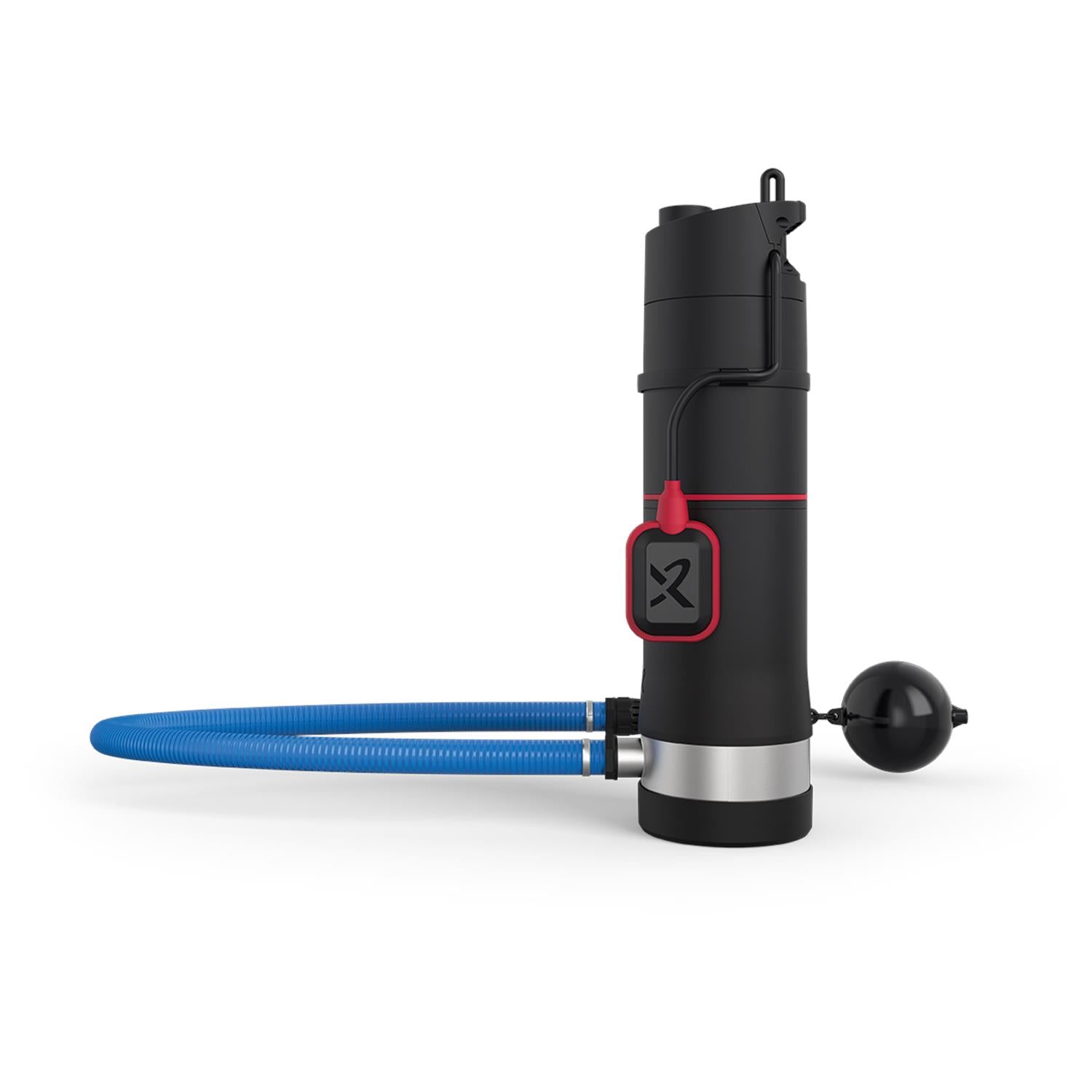

The Grundfos 92713196 (SBA 3-35 AW) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 13.2US gpm at 87.27ft. Rated 220-230V, 1-Phase, 60 Hz. Applications include Residential rainwater harvesting, Residential water pressure boosting, Ground water transfer.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 92713196 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Power | 0.63HP |
| Voltage | 220-230V |
| Phase | 1-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3400rpm |
| Full Load Current | 3.5A |
| Motor Protection | YES |
| Insulation Class | F |
| Protection Class (IP) | IPX8 |
| Nominal Flow | 13.2US gpm |
| Nominal Head | 87.27ft |
| Max Fluid Temperature | 104°F |
| Max Ambient Temperature | 122°F |
| Outlet Connection | G 1" |
| Pipe Pressure Rating | PN 6 |
| Impeller Material | Composite |
| Housing Material | Composite |
| Approvals / Certifications | CE |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 220-230V, 1-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 104°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5715118531906
- Adjustable start pressure (Yes/No)
- N
- Approvals
- CE
- Built-in motor protection
- YES
- Cable type
- H07RN-F 3G1
- Capacitor size - run
- 10 µF/450 V
- Connection
- PN 6
- Cos phi
- 0.975
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- X8
- Gross weight
- 32.4 lb
- Housing
- Composite
- Impeller
- Composite
- Impellers
- 3
- Insulation class (IEC 85)
- F
- Length of cable
- 15 m
- Liquid temperature range
- 32 .. 104 °F
- Mains frequency
- 60 Hz
- Material Pricing Group
- 16
- Max. Particle
- 1 mm
- Maximum head
- 111.6 ft
- Maximum installation depth
- 10 m
- Net weight
- 30.2 lb
- pH-value range
- 45173
- Power 1
- 0.75 kW
- Power input P1
- 0.75 kW
- Pressure rating for connection
- PN 6
- Pump housing
- Composite
- Pump outlet
- G 1"
- Pumped liquid
- Water
- Range of ambient temperature
- 14 .. 122 °F
- Rated current
- 3.5 A
- Rated flow
- 13.2 US gpm
- Rated head
- 87.27 ft
- Rated power - P2
- 0.47 kW
- Rated speed
- 3400 rpm
- Rated voltage
- 1 x 220-230 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Return valve
- YES
- Selected liquid temperature
- 68 °F
- Start pressure
- 1.5 bar
- Starting current
- 11.4 A
- Type
- H07RN-F 3G1
- Type of cable plug
- No plug
- Type of inlet connection
- FLOATING STRAINER
- Valve
- YES
Dimensional Drawing
