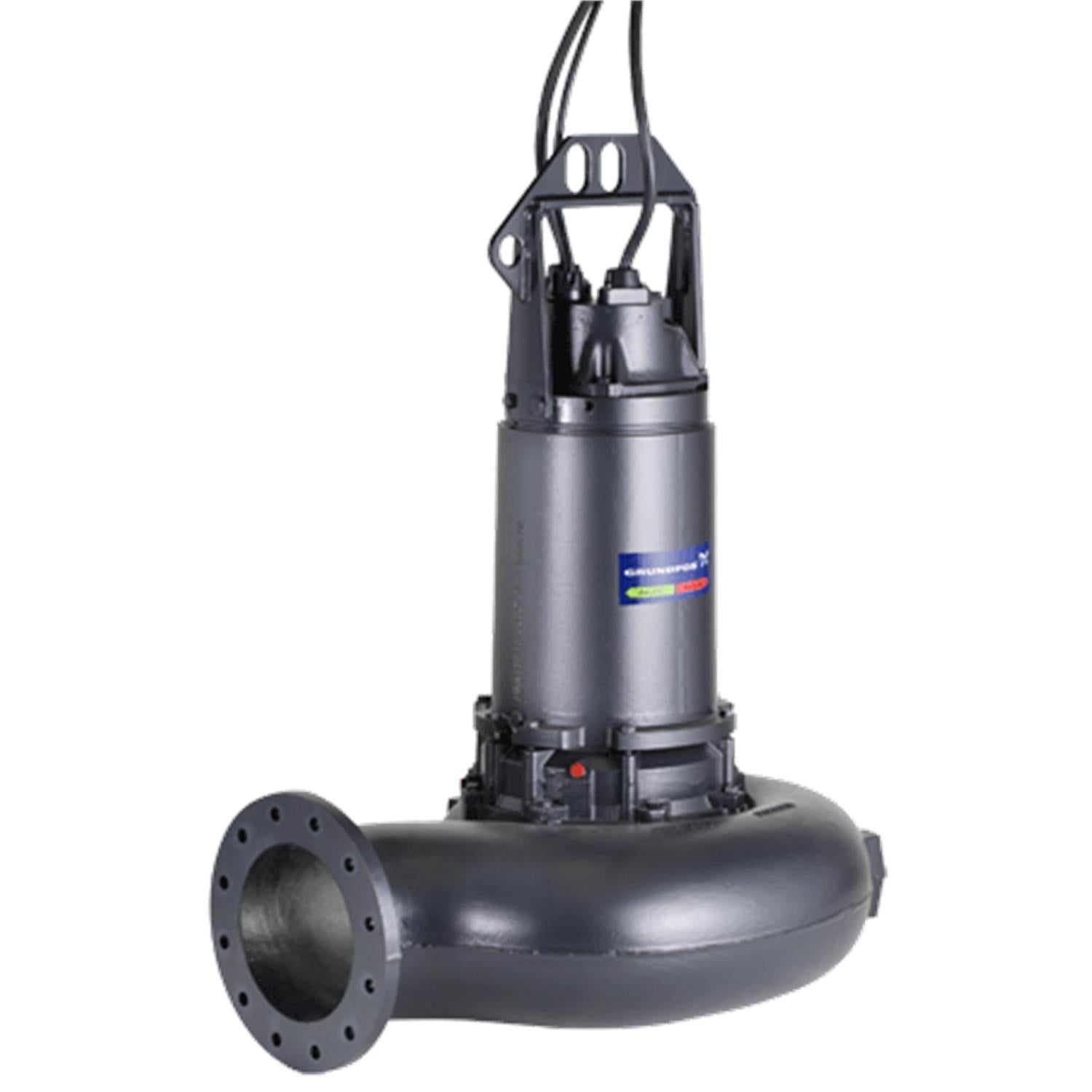

Image shown may not be actual product
Grundfos 97708938 - S3.45.A200.760.8.66L.H.371.G.EX.D.611
Grundfos 97708938 - S3.45.A200.760.8.66L.H.371.G.EX.D.611
Grundfos 97708938 - S3.45.A200.760.8.66L.H.371.G.EX.D.611
Grundfos 97708938 - S3.45.A200.760.8.66L.H.371.G.EX.D.611
Grundfos 97708938 - S3.45.A200.760.8.66L.H.371.G.EX.D.611
Grundfos 97708938 - S3.45.A200.760.8.66L.H.371.G.EX.D.611

Grundfos 97708938 - S3.45.A200.760.8.66L.H.371.G.EX.D.611

GRUNDFOSSKU: 97708938
Price:
$78,577.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

S3. 45. A200. 760. 8. 66L. H. 371. G. EX. D. 611 | The submersible S pumps are specifically designed for handling wastewater, process water and unscreened raw sewage in a wide range of municipal, domestic and industrial applications. The S pumps are fitted with 13. 4 HP up to 188 HP motors. Pumps with higher performance are available on request. The pumps are grouped into the following pump ranges: 50, 54, 58, 62, 66 and 70, each representing a motor size with similar external and internal dimensions, cooling system, shaft seal and bearings. Each pump range consists of pump types with different features and performance range. The S pumps are provided with SuperVortex, single-channel, two-channel or three-channelimpeller. S pumps with SuperVortex impeller can handle solids up to 4 inch in size. S pumps with channel impeller can handle solids up to 5. 5 inch in size, depending on the pump range.

EAN 5710622455014
Applications Wastewater
Motor efficiency at full load 1 0.94
Density 62.29 lb/ft³
Size of inlet connection 16 inch
Type of connection ANSI
Pressure rating PN 10
Rated voltage 3 x 460 V
Power input - P1 61 kW
Frame range 66
Maximum installation depth 20 m
Inst dry/wet D
Size of outlet connection 20 inch
Maximum current consumption 93 A
Starting current 861 A
Liquid temperature range 32 .. 104 °F
Mains frequency 60 Hz
Insulation class (IEC 85) H
Motor efficiency at 1/2 load 0.92
Built-in motor protection KLIXON
Net weight 2980.0 lb
Number of poles 8
Rated speed 876 rpm
Start. method star/delta
Gross weight 3700.0 lb
Rated power - P2 57 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.93
Rated current 93/ A
Cable type S1BC4N8-F
Voltage tolerance +10/-10 %
Explosion proof yes
Length of cable 15 m
Cable size 2X4X25MM2+1X10X1
Cable resistance 9.55 mOhm/m
Moisture sensor with moisture sensors
Sales region Namreg
Range of ambient temperature 32 .. 104 °F
Max starts per hour 15
Winding resistance 0.119 Ohm
Water-in-oil sensor with water-in-oil sensor
Max flow 750 l/s
Inst horizontal 96308208
Cos phi 1/1 0.82
Head max 12.1 m
Sens.interface 12.1 m
Valve type 12.1 m
Diameter 14.6 in
Pipework connection 12.1 m
Motor Cast iron
Number of leads 12.1 m
Length 12.1 m
Colour 12.1 m
Power 1 61 kW
Pressure retention valve 12.1 m
Approvals and markings 12.1 m
Approvals on nameplate FM
Flow range 12.1 m
Battery back-up 12.1 m
Size 2X4X25MM2+1X10X1
Housing Ductile cast iron
Cos phi 1/2 0.71
Actual impeller diameter 14.6 in
Type of impeller 3-CHANNEL
Type S1BC4N8-F
Curve tolerance ANSI/HI11.6:2017 3B
Primary shaft seal SIC-SIC
Cos phi 3/4 0.78
Maximum particle size 115 mm
Connection 20 inch
Impeller Ductile cast iron
Pump housing Ductile cast iron
Standard FM 3600
Rated current at no load 39.4 A
