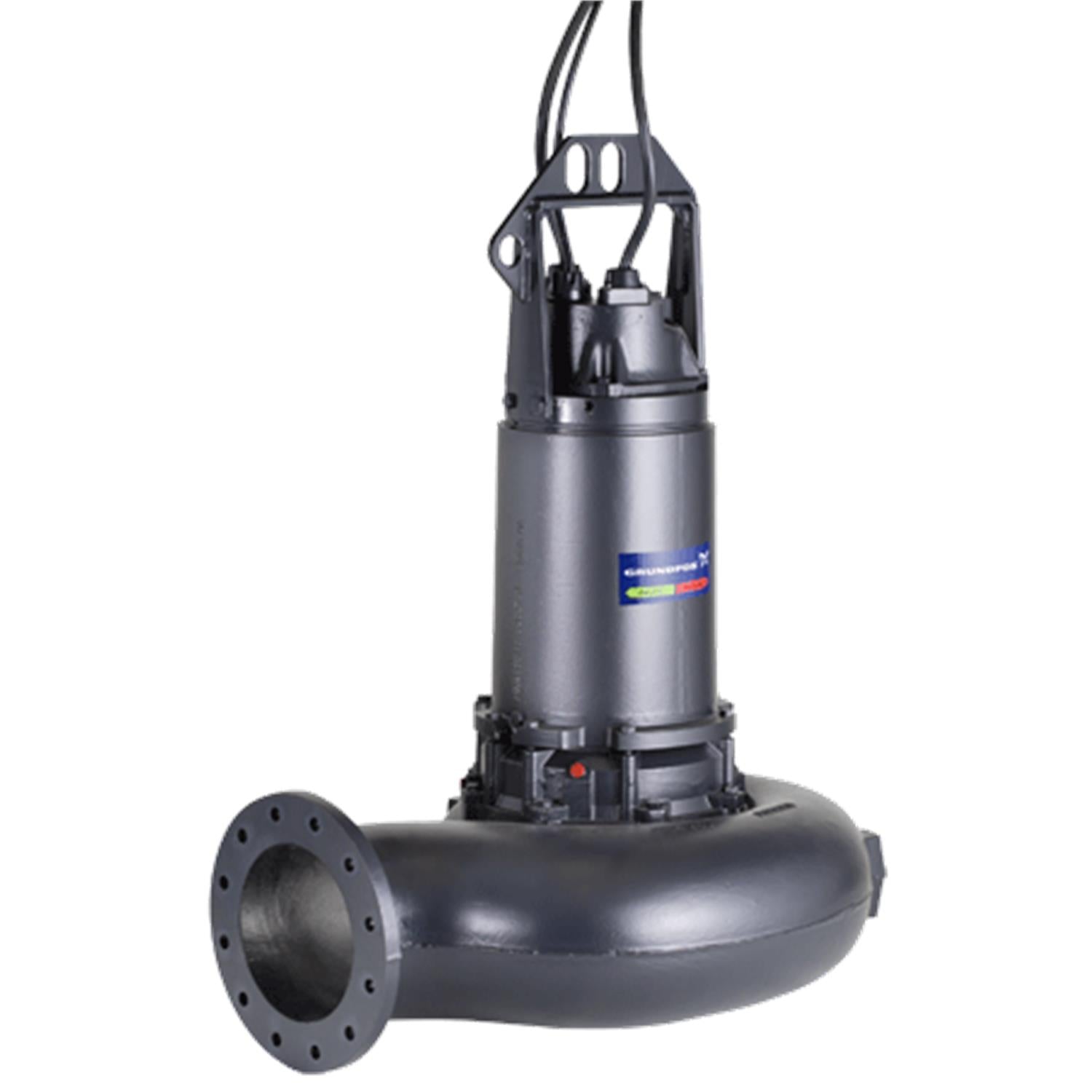

Grundfos 97708936 - S3.45.A200.760.8.66L.C.371.G.EX.D.611
Roll over image to zoom in Click on image to zoom
Grundfos 97708936 - S3.45.A200.760.8.66L.C.371.G.EX.D.611
Grundfos Pumps & Systems

Grundfos 97708936 - S3.45.A200.760.8.66L.C.371.G.EX.D.611

GRUNDFOSSKU: 97708936
Price:
$78,717.00

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
97708936 · Grundfos Accessory / Spare Part / Control
ACC76.4HP460V3-Phase60 HzIP68Ductile iron

The Grundfos 97708936 (S3.45.A200.760.8.66L.C.371.G.EX.D.611) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 460V, 3-Phase, 60 Hz. Applications include Plumbing: Sewage, Industrial wastewater treatment & reuse, Municipal wastewater transport and more.

Power
76.4HP
Voltage
460V
Phase
3-Phase
Frequency
60 Hz
Max Fluid Temp
104°F
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 97708936
Series: ACC
Impeller Material: Ductile iron
Housing Material: Ductile cast iron
Flange Rating: PN 10
Technical Specifications
Model Number 97708936
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 76.4HP
Voltage 460V
Phase 3-Phase
Frequency 60 Hz
Motor Speed 876rpm
Full Load Current 93/A
Motor Protection KLIXON
Motor Efficiency 94%
Insulation Class H
Protection Class (IP) IP68
Max Fluid Temperature 104°F
Max Ambient Temperature 104°F
Outlet Connection 20inch
Pipe Pressure Rating PN 10
Pipe Standard ANSI
Impeller Material Ductile iron
Housing Material Ductile cast iron
Applications
Plumbing: Sewage
Industrial wastewater treatment & reuse
Municipal wastewater transport
Stormwater control
Municipal wastewater treatment
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 460V, 3-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 104°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 97708936
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 97708936 · 97708936Authorized Grundfos Distributor · pump-stop.com
EAN
5710622454994
Applications
Wastewater
Actual impeller diameter
14.6 in
Approvals and markings
12.1 m
Approvals on nameplate
FM
Auto-coupling
97510050
Battery back-up
12.1 m
Built-in motor protection
KLIXON
Cable resistance
9.55 mOhm/m
Cable size
2X4X25MM2+1X10X1
Cable type
S1BC4N8-F
Colour
12.1 m
Connection
20 inch
Cos phi 1/1
0.82
Cos phi 1/2
0.71
Cos phi 3/4
0.78
Curve tolerance
ANSI/HI11.6:2017 3B
Density
62.29 lb/ft³
Diameter
14.6 in
Enclosure class (IEC 34-5)
IP68
Explosion proof
yes
Flow range
12.1 m
Frame range
66
Gross weight
4010.0 lb
Head max
12.1 m
Housing
Ductile cast iron
Impeller
Ductile cast iron
Inst dry/wet
D/S
Insulation class (IEC 85)
H
Length
12.1 m
Length of cable
15 m
Liquid temperature range
32 .. 104 °F
Mains frequency
60 Hz
Max flow
750 l/s
Max starts per hour
15
Maximum current consumption
93 A
Maximum installation depth
20 m
Maximum particle size
115 mm
Moisture sensor
with moisture sensors
Motor
Cast iron
Motor efficiency at 1/2 load
0.92
Motor efficiency at 3/4 load
0.93
Motor efficiency at full load 1
0.94
Net weight
3290.0 lb
Number of leads
12.1 m
Number of poles
8
Pipework connection
12.1 m
Power 1
61 kW
Power input - P1
61 kW
Pressure rating
PN 10
Pressure retention valve
12.1 m
Primary shaft seal
SIC-SIC
Product family
66 Frame
Pump housing
Ductile cast iron
Range of ambient temperature
32 .. 104 °F
Rated current
93/ A
Rated current at no load
39.4 A
Rated power - P2
57 kW
Rated speed
876 rpm
Rated voltage
3 x 460 V
Real Time
Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Sales region
Namreg
Sens.interface
12.1 m
Size
2X4X25MM2+1X10X1
Size of outlet connection
20 inch
Standard
FM 3600
Start. method
star/delta
Starting current
861 A
Type
S1BC4N8-F
Type of connection
ANSI
Type of impeller
3-CHANNEL
Valve type
12.1 m
Voltage tolerance
+10/-10 %
Water-in-oil sensor
with water-in-oil sensor
Winding resistance
0.119 Ohm
