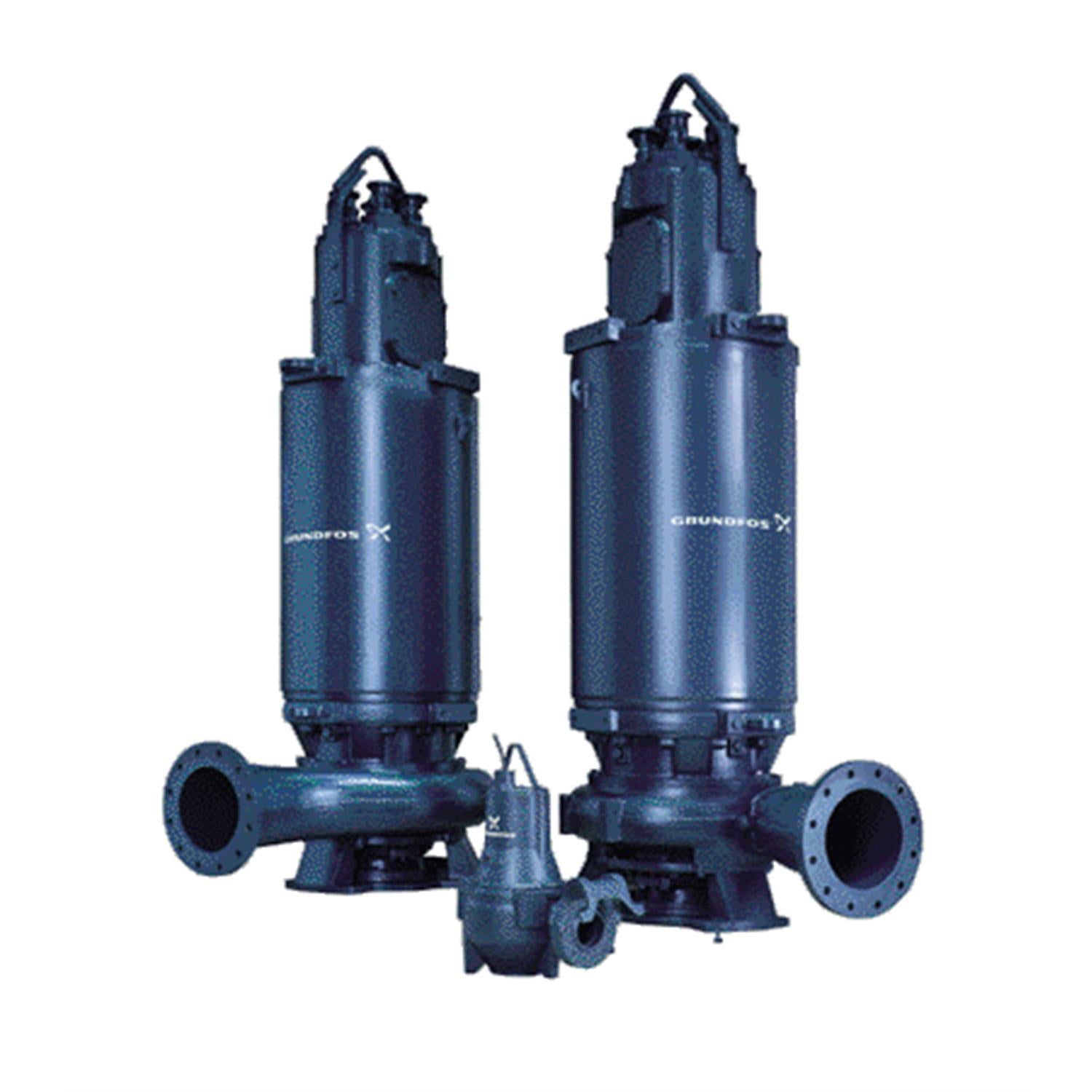

Image shown may not be actual product
Grundfos 97660807 - S3.45.A120.1880.6.70M.H.407.G.EX.D.611
Grundfos 97660807 - S3.45.A120.1880.6.70M.H.407.G.EX.D.611
Grundfos 97660807 - S3.45.A120.1880.6.70M.H.407.G.EX.D.611

Grundfos 97660807 - S3.45.A120.1880.6.70M.H.407.G.EX.D.611

GRUNDFOSSKU: 97660807
Price:
$87,188.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97660807 - S3.45.A120.1880.6.70M.H.407.G.EX.D.611 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5710620591578
Applications Wastewater
Motor efficiency at full load 1 0.91
Density 62.29 lb/ft³
Size of inlet connection 12 inch
Type of connection ANSI
Rated voltage 3 x 460 V
Power input - P1 154 kW
Frame range 70
Maximum installation depth 20 m
Inst dry/wet D
Size of outlet connection 12 inch
Maximum current consumption 246 A
Starting current 1980 A
Liquid temperature range 32 .. 104 °F
Mains frequency 60 Hz
Insulation class (IEC 85) H
Motor efficiency at 1/2 load 0.89
Built-in motor protection KLIXON
Net weight 3750.0 lb
Rated speed 1186 rpm
Start. method star/delta
Gross weight 4230.0 lb
Rated power - P2 140 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.9
Rated current 246/ A
Cable type S1BC4N8-F
Voltage tolerance +10/-10 %
Explosion proof yes
Length of cable 15 m
Cable size 2X4X70MM2+1X10X1
Cable resistance 9.55 mOhm/m
Moisture sensor with moisture sensors
Sales region Namreg
Range of ambient temperature 32 .. 104 °F
Max starts per hour 15
Winding resistance 0.037 Ohm
Water-in-oil sensor with water-in-oil sensor
Max flow 720 l/s
Cos phi 1/1 0.78
Head max 31 m
Sens.interface 31 m
Valve type 31 m
Diameter 16 in
Pipework connection 31 m
Motor Cast iron
Number of leads 31 m
Length 31 m
Colour 31 m
Power 1 154 kW
Pressure retention valve 31 m
Approvals and markings 31 m
Approvals on nameplate FM
Flow range 31 m
Battery back-up 31 m
Size 2X4X70MM2+1X10X1
Housing Cast iron
Cos phi 1/2 0.62
Actual impeller diameter 16 in
Type of impeller 3-CHANNEL
Type S1BC4N8-F
Curve tolerance ANSI/HI11.6:2017 3B
Primary shaft seal SIC-SIC
Cos phi 3/4 0.72
Maximum particle size 120 mm
Connection 12 inch
Impeller Ductile cast iron
Pump housing Cast iron
Standard FM 3600
Rated current at no load 127 A
