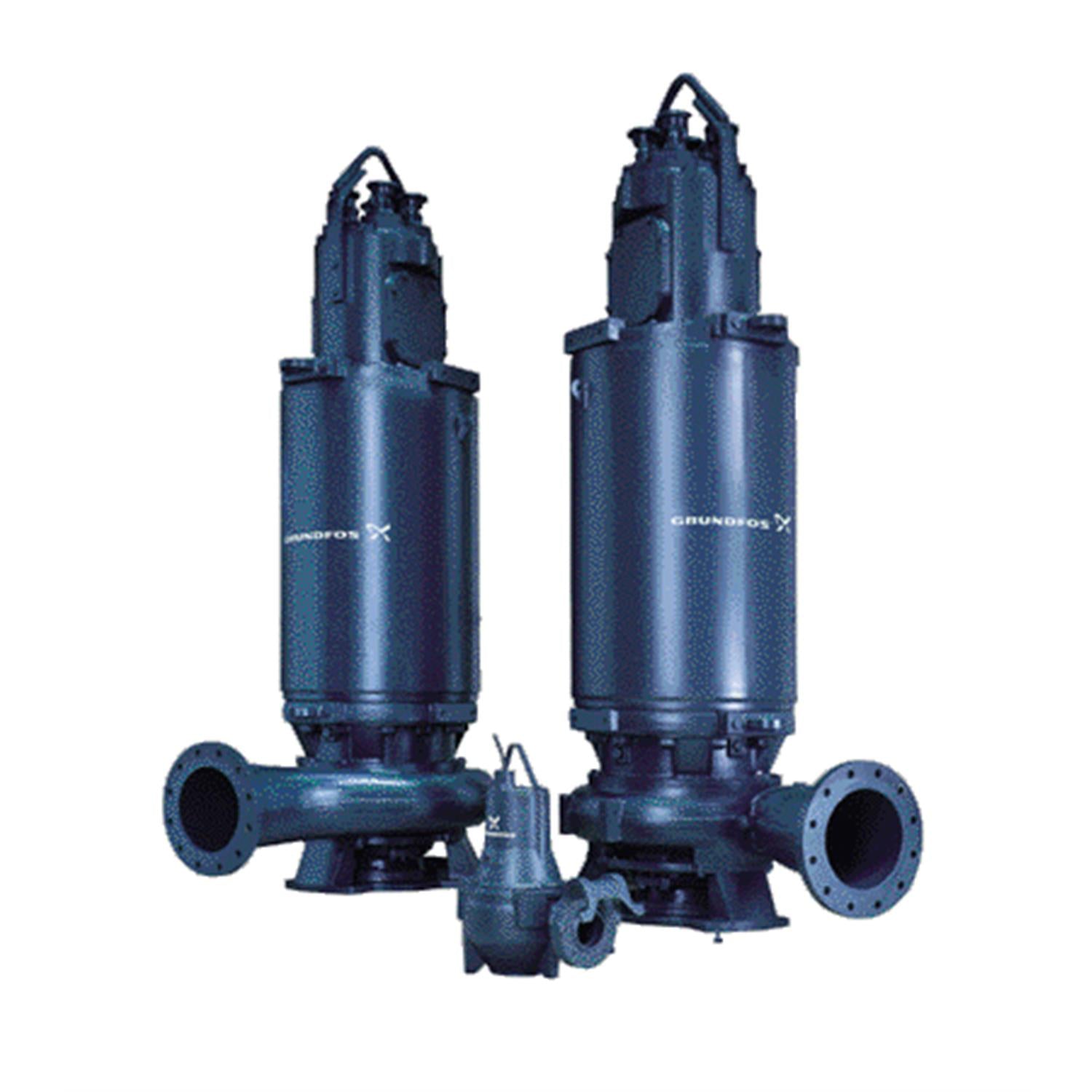

Image shown may not be actual product
Grundfos 97660805 - S3.45.A120.1880.6.70M.C.407.G.EX.D.611
Grundfos 97660805 - S3.45.A120.1880.6.70M.C.407.G.EX.D.611
Grundfos 97660805 - S3.45.A120.1880.6.70M.C.407.G.EX.D.611

Grundfos 97660805 - S3.45.A120.1880.6.70M.C.407.G.EX.D.611

GRUNDFOSSKU: 97660805
Price:
$78,577.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

S3. 45. A120. 1880. 6. 70M. C. 407. G. EX. D. 611 | The pump is designed for intermittent and continous operation. The cooling jacket ensures that the pump can operate submerged or dry installed without motor cooling. The three-channel impeller handles solids up to 4. 72 in in size. A SmartTrim impeller clearance adjustment system makes it possible to maintain maximum performance throughout the lifetime of the pump. To facilitate easy transportation as well as installation on-site, the pump is fitted with a robust lifting bracket. For installation on auto coupling, the Grundfos SmartSeal gasket system provides a leak-proof connection. Pipework connections are via a ANSI flange. The pump is explosion-proof. Controls: Moisture sensor:

EAN 5710620591554
Applications Wastewater
Material Pricing Group 7H
Motor efficiency at full load 1 0.91
Density 62.29 lb/ft³
Type of connection ANSI
Rated voltage 3 x 460 V
Power input - P1 154 kW
Frame range 70
Maximum installation depth 20 m
Inst dry/wet D/S
Size of outlet connection 12 inch
Maximum current consumption 246 A
Starting current 1980 A
Liquid temperature range 32 .. 104 °F
Mains frequency 60 Hz
Insulation class (IEC 85) H
Motor efficiency at 1/2 load 0.89
Built-in motor protection KLIXON
Net weight 3440.0 lb
Rated speed 1186 rpm
Start. method star/delta
Gross weight 4170.0 lb
Rated power - P2 140 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.9
Rated current 246/ A
Cable type S1BC4N8-F
Voltage tolerance +10/-10 %
Explosion proof yes
Length of cable 15 m
Cable size 2X4X70MM2+1X10X1
Cable resistance 9.55 mOhm/m
Moisture sensor with moisture sensors
Sales region Namreg
Range of ambient temperature 32 .. 104 °F
Auto-coupling 97510049
Max starts per hour 15
Winding resistance 0.037 Ohm
Water-in-oil sensor with water-in-oil sensor
Max flow 720 l/s
Cos phi 1/1 0.78
Head max 31 m
Sens.interface 31 m
Valve type 31 m
Diameter 16 in
Pipework connection 31 m
Motor Cast iron
Number of leads 31 m
Length 31 m
Colour 31 m
Power 1 154 kW
Pressure retention valve 31 m
Approvals and markings 31 m
Approvals on nameplate FM
Flow range 31 m
Battery back-up 31 m
Size 2X4X70MM2+1X10X1
Housing Cast iron
Cos phi 1/2 0.62
Actual impeller diameter 16 in
Type of impeller 3-CHANNEL
Type S1BC4N8-F
Curve tolerance ANSI/HI11.6:2017 3B
Primary shaft seal SIC-SIC
Cos phi 3/4 0.72
Maximum particle size 120 mm
Connection 12 inch
Impeller Ductile cast iron
Pump housing Cast iron
Standard FM 3600
Rated current at no load 127 A
