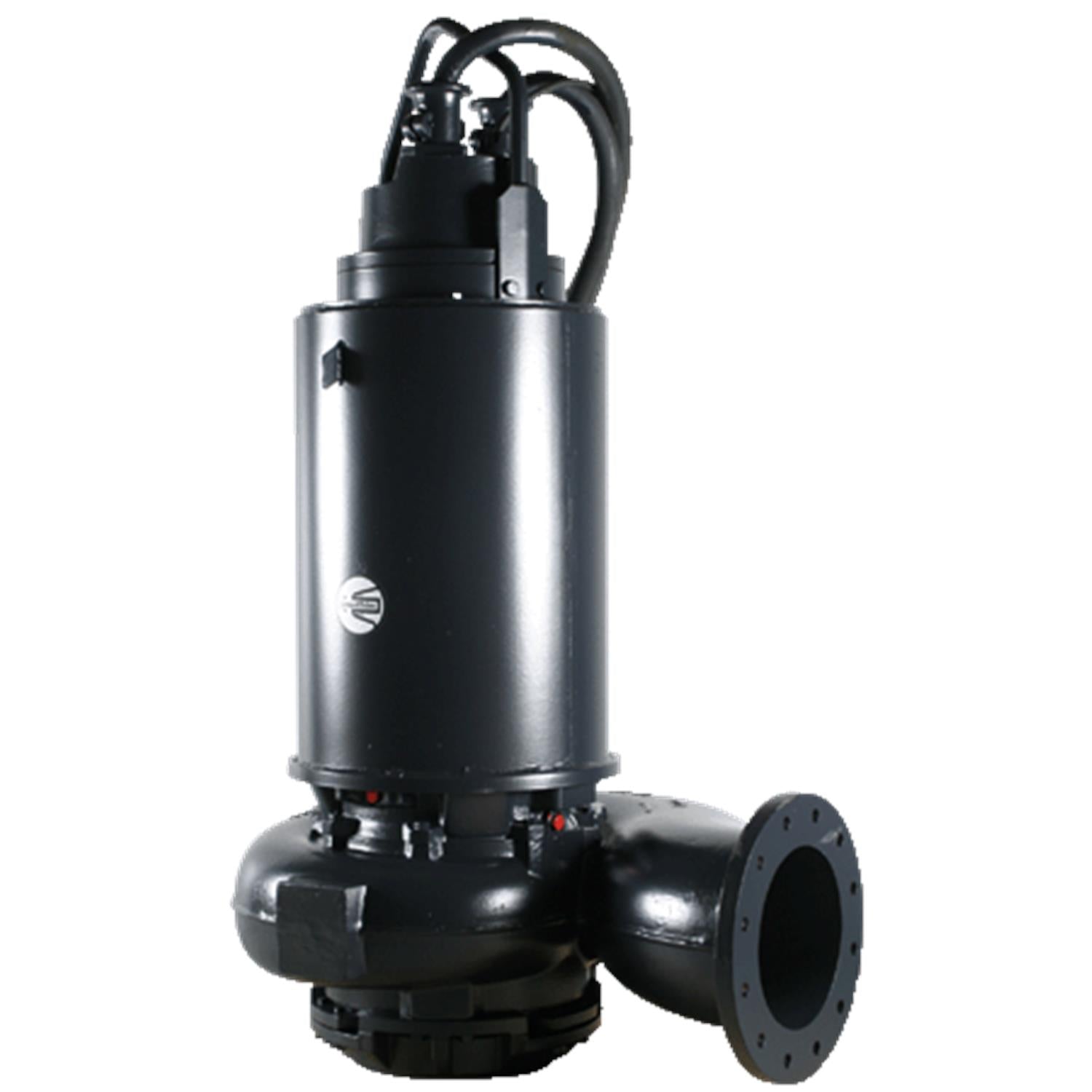

Grundfos 96796963 - S3.120.300.800.6.70M.H.407.G.N.D.511
Roll over image to zoom in Click on image to zoom
Grundfos 96796963 - S3.120.300.800.6.70M.H.407.G.N.D.511
Grundfos Pumps & Systems

Grundfos 96796963 - S3.120.300.800.6.70M.H.407.G.N.D.511

GRUNDFOSSKU: 96796963

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
96796963 · Grundfos Accessory / Spare Part / Control
ACC107HP400/690V3.0-Phase50 HzIP68Ductile iron

The Grundfos 96796963 (S3.120.300.800.6.70M.H.407.G.N.D.511) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 400/690V, 3.0-Phase, 50 Hz. Applications include Plumbing: Sewage, Industrial wastewater treatment & reuse, Municipal wastewater transport and more.

Power
107HP
Voltage
400/690V
Phase
3.0-Phase
Frequency
50 Hz
Max Fluid Temp
104°F
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 96796963
Series: ACC
Impeller Material: Ductile iron
Housing Material: Cast iron
Flange Rating: PN 10
Technical Specifications
Model Number 96796963
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 107HP
Voltage 400/690V
Phase 3.0-Phase
Frequency 50 Hz
Motor Speed 988rpm
Full Load Current 168/98A
Motor Protection KLIXON
Motor Efficiency 92%
Insulation Class F
Protection Class (IP) IP68
Max Fluid Temperature 104°F
Max Ambient Temperature 104°F
Inlet Connection DN 300
Outlet Connection DN 300
Pipe Pressure Rating PN 10
Pipe Standard DIN
Impeller Material Ductile iron
Housing Material Cast iron
Applications
Plumbing: Sewage
Industrial wastewater treatment & reuse
Municipal wastewater transport
Stormwater control
Municipal wastewater treatment
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 400/690V, 3.0-Phase, 50 Hz.
Temperature limits Do not exceed max fluid temperature 104°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 96796963
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 96796963 · 96796963Authorized Grundfos Distributor · pump-stop.com
EAN
5700310631530
Applications
Wastewater
Actual impeller diameter
16 in
Approvals and markings
24.8 m
Battery back-up
24.8 m
Built-in motor protection
KLIXON
Cable resistance
0.55 mOhm/m
Cable size
2X4X35MM2+1X7X1
Cable type
H07RN-F AT
Colour
24.8 m
Connection
DN 300
Cos phi 1/1
0.75
Cos phi 1/2
0.61
Cos phi 3/4
0.68
Curve tolerance
ISO9906:2012 3B
Density
62.29 lb/ft³
Diameter
16 in
Enclosure class (IEC 34-5)
IP68
Explosion proof
no
Flow range
24.8 m
Frame range
70
Gross weight
3730.0 lb
Head max
24.8 m
Housing
Cast iron
Impeller
Ductile cast iron
Inst dry/wet
D
Insulation class (IEC 85)
F
Length
24.8 m
Length of cable
10 m
Liquid temperature range
32 .. 104 °F
Mains frequency
50 Hz
Material Pricing Group
7H
Max flow
675 l/s
Max starts per hour
15
Maximum current consumption
168 A
Maximum installation depth
20 m
Maximum particle size
120 mm
Moisture sensor
with moisture sensors
Motor
Cast iron
Motor efficiency at 1/2 load
0.91
Motor efficiency at 3/4 load
0.92
Motor efficiency at full load 1
0.92
Net weight
3350.0 lb
Number of leads
24.8 m
Pipework connection
24.8 m
Power 1
87 kW
Power input - P1
87 kW
Pressure rating
PN 10
Pressure retention valve
24.8 m
Primary shaft seal
SIC-SIC
Product family
70 Frame
Pump housing
Cast iron
Range of ambient temperature
32 .. 104 °F
Rated current
168/98 A
Rated current at no load
76 A
Rated power - P2
80 kW
Rated speed
988 rpm
Rated voltage
3 x 400/690 V
Real Time
Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Sens.interface
24.8 m
Size
2X4X35MM2+1X7X1
Size of inlet connection
DN 300
Size of outlet connection
DN 300
Standard
N
Start. method
star/delta
Starting current
1250 A
Type
H07RN-F AT
Type of connection
DIN
Type of impeller
3-CHANNEL
Valve type
24.8 m
Voltage tolerance
+10/-10 %
Water-in-oil sensor
without water-in-oil sensor
Winding resistance
0.061 Ohm
