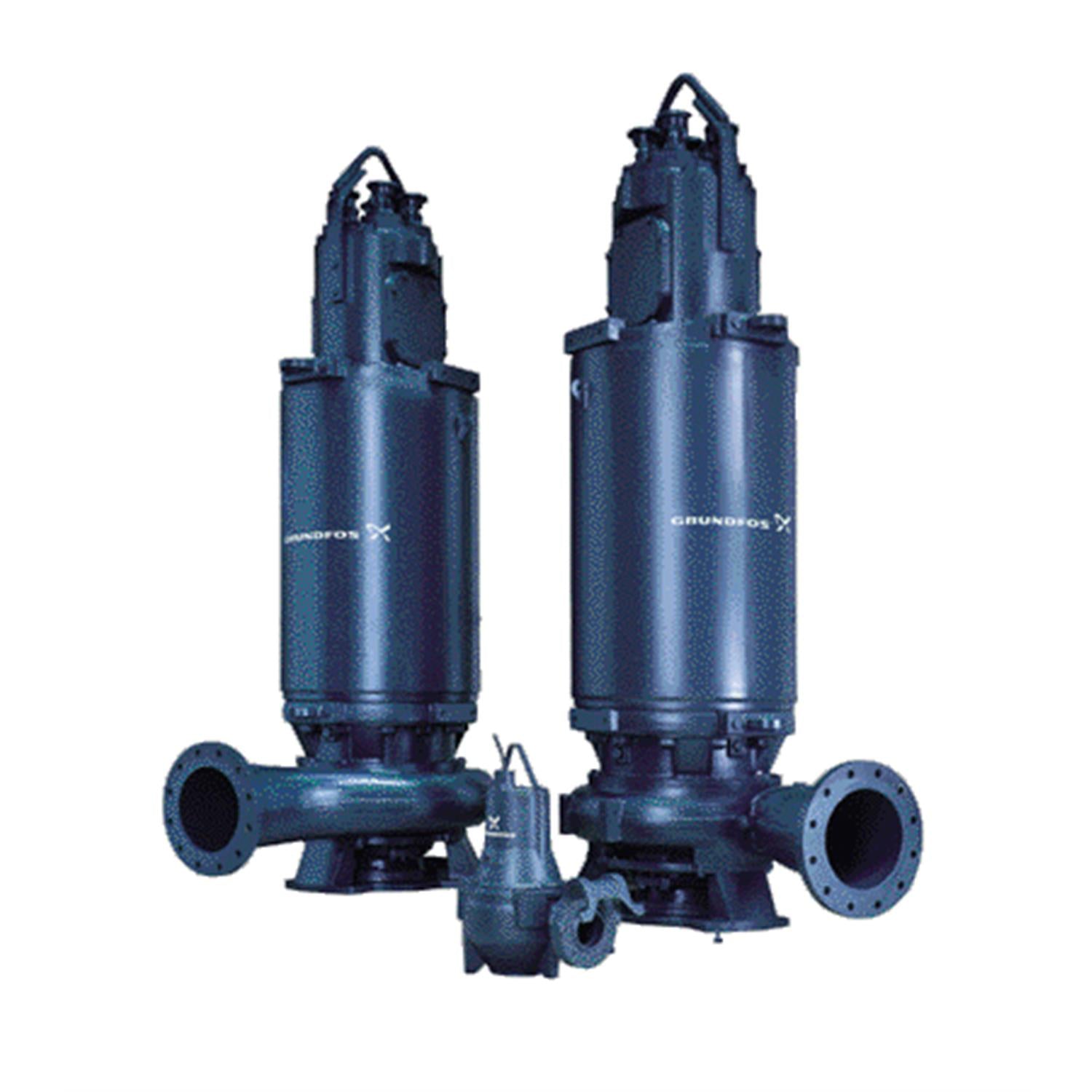

Image shown may not be actual product
Grundfos 97660775 - S2.45.A100.1470.6.70H.S.443.G.EX.D.611
Grundfos 97660775 - S2.45.A100.1470.6.70H.S.443.G.EX.D.611
Grundfos 97660775 - S2.45.A100.1470.6.70H.S.443.G.EX.D.611
Grundfos 97660775 - S2.45.A100.1470.6.70H.S.443.G.EX.D.611

Grundfos 97660775 - S2.45.A100.1470.6.70H.S.443.G.EX.D.611

GRUNDFOSSKU: 97660775
Price:
$66,737.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97660775 - S2.45.A100.1470.6.70H.S.443.G.EX.D.611 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5710620591257
Applications Wastewater
Motor efficiency at full load 1 0.93
Density 62.29 lb/ft³
Type of connection ANSI
Rated voltage 3 x 460 V
Power input - P1 118 kW
Frame range 70
Maximum installation depth 20 m
Inst dry/wet S
Size of outlet connection 10 inch
Maximum current consumption 175 A
Starting current 1280 A
Liquid temperature range 32 .. 104 °F
Mains frequency 60 Hz
Insulation class (IEC 85) H
Motor efficiency at 1/2 load 0.91
Built-in motor protection KLIXON
Net weight 2540.0 lb
Rated speed 1181 rpm
Start. method star/delta
Gross weight 3020.0 lb
Rated power - P2 110 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.93
Rated current 175/ A
Cable type S1BC4N8-F
Voltage tolerance +10/-10 %
Explosion proof yes
Length of cable 15 m
Cable size 1X3X6MM2+1X7X1
Cable resistance 9.55 mOhm/m
Moisture sensor with moisture sensors
Sales region Namreg
Range of ambient temperature 32 .. 104 °F
Auto-coupling 97510048
Max starts per hour 15
Winding resistance 0.061 Ohm
Water-in-oil sensor with water-in-oil sensor
Max flow 478 l/s
Cos phi 1/1 0.85
Head max 45.9 m
Sens.interface 45.9 m
Valve type 45.9 m
Diameter 17.4 in
Pipework connection 45.9 m
Motor Cast iron
Number of leads 45.9 m
Length 45.9 m
Colour 45.9 m
Power 1 118 kW
Pressure retention valve 45.9 m
Approvals and markings 45.9 m
Approvals on nameplate FM
Flow range 45.9 m
Battery back-up 45.9 m
Size 1X3X6MM2+1X7X1
Housing Ductile cast iron
Cos phi 1/2 0.73
Actual impeller diameter 17.4 in
Type of impeller 2-CHANNEL
Type S1BC4N8-F
Curve tolerance ANSI/HI11.6:2017 3B
Primary shaft seal SIC-SIC
Cos phi 3/4 0.81
Maximum particle size 120 mm
Connection 10 inch
Impeller Ductile cast iron
Pump housing Ductile cast iron
Standard FM 3600
Rated current at no load 74.6 A

Motor Curves

Dimensional Drawing
