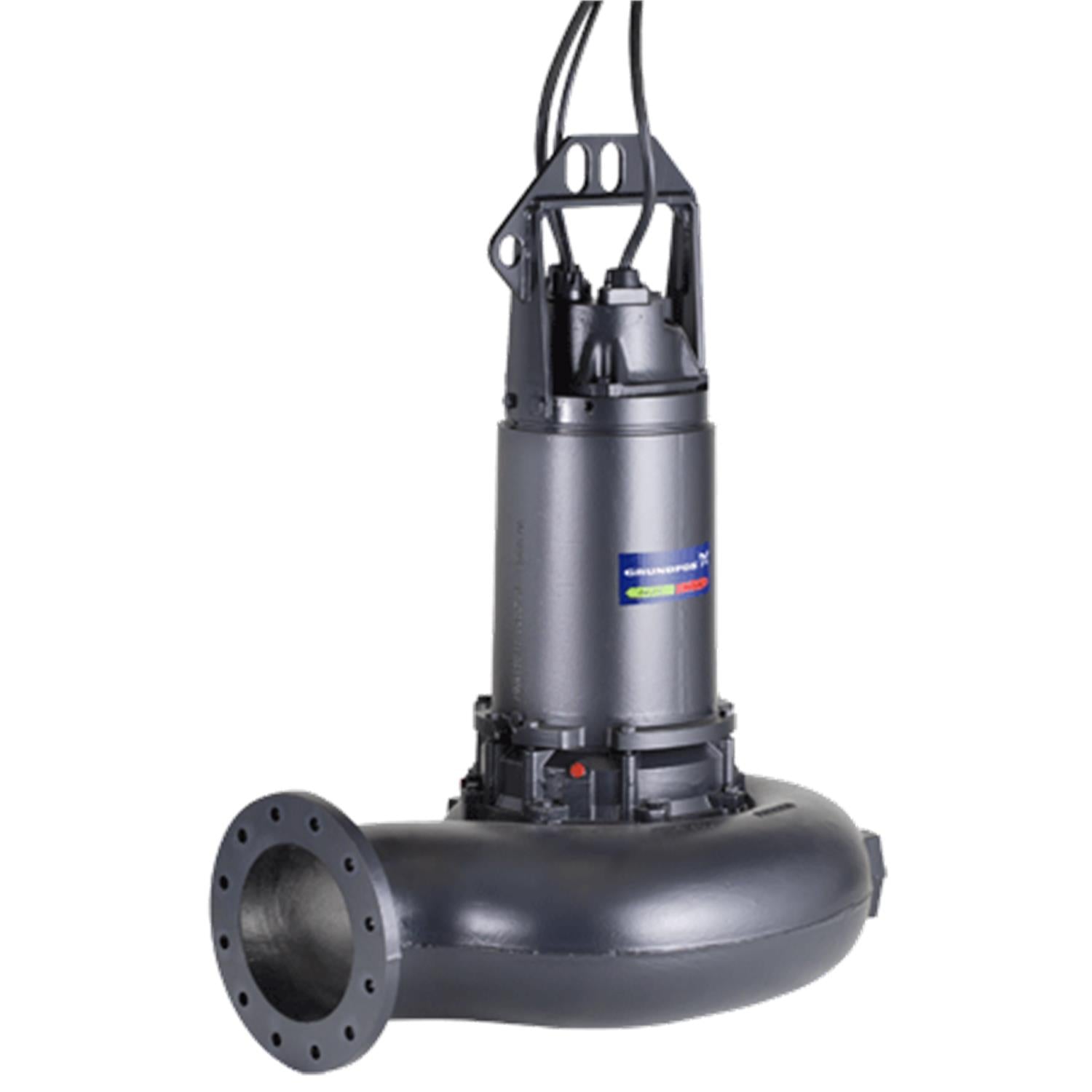

Grundfos 97708931 - S2.40.A80.980.4.66M.S.301.G.EX.D.611
Grundfos 97708931 - S2.40.A80.980.4.66M.S.301.G.EX.D.611
Grundfos 97708931 - S2.40.A80.980.4.66M.S.301.G.EX.D.611
Grundfos 97708931 - S2.40.A80.980.4.66M.S.301.G.EX.D.611
Grundfos 97708931 - S2.40.A80.980.4.66M.S.301.G.EX.D.611
Grundfos 97708931 - S2.40.A80.980.4.66M.S.301.G.EX.D.611

Grundfos 97708931 - S2.40.A80.980.4.66M.S.301.G.EX.D.611

GRUNDFOSSKU: 97708931
Price:
$47,362.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

S2. 40. A80. 980. 4. 66M. S. 301. G. EX. D. 611 | The submersible S pumps are specifically designed for handling wastewater, process water and unscreened raw sewage in a wide range of municipal, domestic and industrial applications. The S pumps are fitted with 13. 4 HP up to 188 HP motors. Pumps with higher performance are available on request. The pumps are grouped into the following pump ranges: 50, 54, 58, 62, 66 and 70, each representing a motor size with similar external and internal dimensions, cooling system, shaft seal and bearings. Each pump range consists of pump types with different features and performance range. The S pumps are provided with SuperVortex, single-channel, two-channel or three-channelimpeller. S pumps with SuperVortex impeller can handle solids up to 4 inch in size. S pumps with channel impeller can handle solids up to 5. 5 inch in size, depending on the pump range.

EAN 5710622454949
Applications Wastewater
Material Pricing Group 7H
Motor efficiency at full load 1 0.94
Density 62.29 lb/ft³
Type of connection ANSI
Pressure rating PN 10
Rated voltage 3 x 460 V
Power input - P1 78 kW
Frame range 66
Maximum installation depth 20 m
Inst dry/wet S
Size of outlet connection 8 inch
Maximum current consumption 114 A
Starting current 1100 A
Liquid temperature range 32 .. 104 °F
Mains frequency 60 Hz
Insulation class (IEC 85) H
Motor efficiency at 1/2 load 0.93
Built-in motor protection KLIXON
Net weight 1980.0 lb
Number of poles 4
Rated speed 1776 rpm
Start. method star/delta
Gross weight 2230.0 lb
Rated power - P2 73 kW
Enclosure class (IEC 34-5) IP68
Motor efficiency at 3/4 load 0.94
Rated current 114/ A
Cable type S1BC4N8-F
Voltage tolerance +10/-10 %
Explosion proof yes
Length of cable 15 m
Cable size 2X4X25MM2+1X10X1
Cable resistance 9.55 mOhm/m
Moisture sensor with moisture sensors
Sales region Namreg
Range of ambient temperature 32 .. 104 °F
Auto-coupling 97506541
Max starts per hour 15
Winding resistance 0.063 Ohm
Water-in-oil sensor with water-in-oil sensor
Max flow 315 l/s
Cos phi 1/1 0.86
Head max 42.1 m
Sens.interface 42.1 m
Valve type 42.1 m
Diameter 11.9 in
Pipework connection 42.1 m
Motor Cast iron
Number of leads 42.1 m
Length 42.1 m
Colour 42.1 m
Power 1 78 kW
Pressure retention valve 42.1 m
Approvals and markings 42.1 m
Approvals on nameplate FM
Flow range 42.1 m
Battery back-up 42.1 m
Size 2X4X25MM2+1X10X1
Housing Cast iron
Cos phi 1/2 0.76
Actual impeller diameter 11.9 in
Type of impeller 2-CHANNEL
Type S1BC4N8-F
Curve tolerance ANSI/HI11.6:2017 3B
Primary shaft seal SIC-SIC
Cos phi 3/4 0.82
Maximum particle size 100 mm
Connection 8 inch
Impeller Ductile cast iron
Pump housing Cast iron
Standard FM 3600
Rated current at no load 43 A

Motor Curves

Dimensional Drawing

DWiring Diagram
