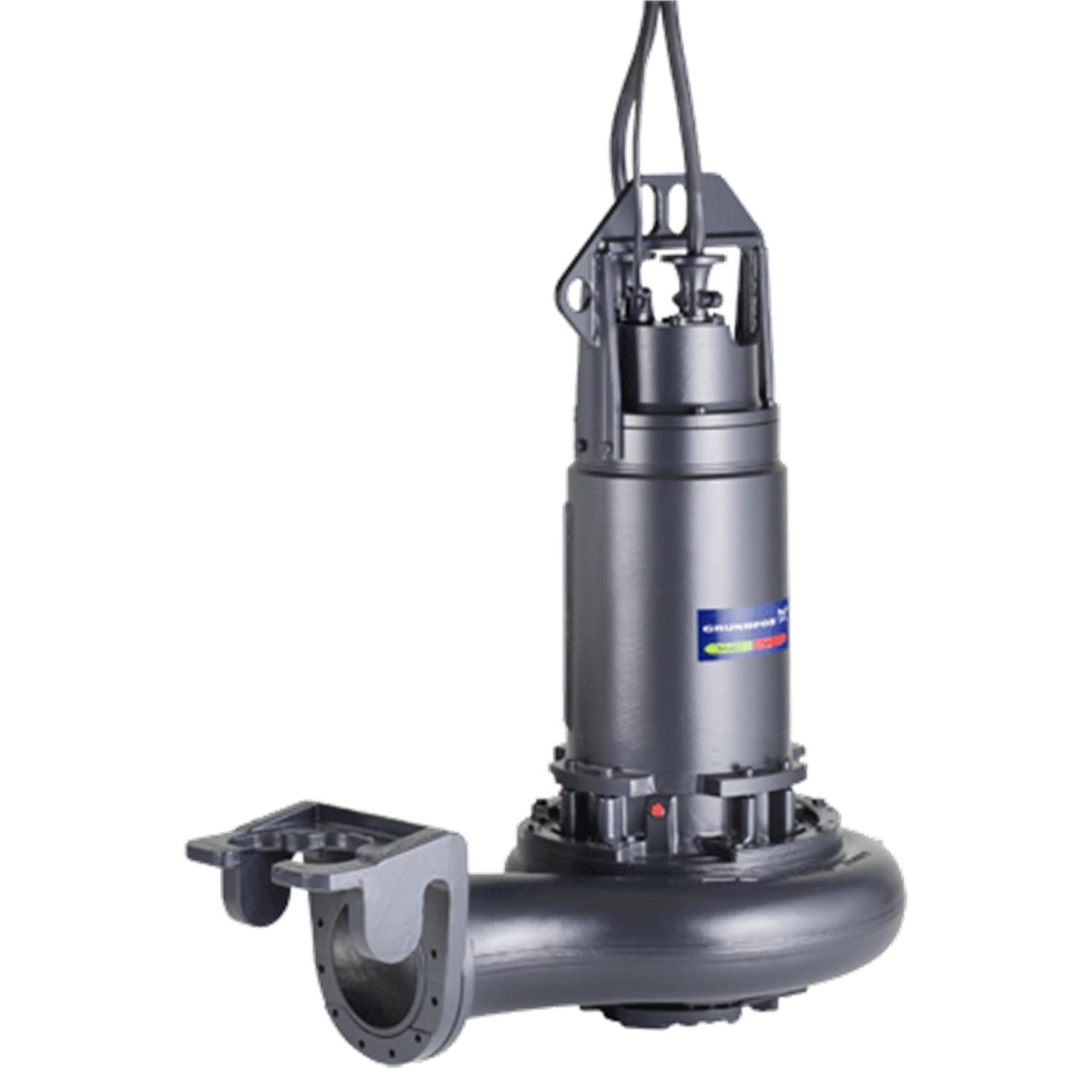

Image shown may not be actual product
Grundfos 99442954 - S2.40.A100.760.8.66H.C.489.G.EX.D.611
Roll over image to zoom in Click on image to zoom
Grundfos 99442954 - S2.40.A100.760.8.66H.C.489.G.EX.D.611
Grundfos Pumps & Systems

Grundfos 99442954 - S2.40.A100.760.8.66H.C.489.G.EX.D.611

GRUNDFOSSKU: 99442954
Price:
$69,220.80

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
99442954 · Grundfos Accessory / Spare Part / Control
ACC76.4HP460V3-Phase60 HzIP68Ductile iron

The Grundfos 99442954 (S2.40.A100.760.8.66H.C.489.G.EX.D.611) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 460V, 3-Phase, 60 Hz. Applications include Plumbing: Sewage, Industrial wastewater treatment & reuse, Municipal wastewater transport and more.

Power
76.4HP
Voltage
460V
Phase
3-Phase
Frequency
60 Hz
Max Fluid Temp
104°F
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 99442954
Series: ACC
Impeller Material: Ductile iron
Housing Material: Ductile cast iron
Flange Rating: PN 10
Technical Specifications
Model Number 99442954
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 76.4HP
Voltage 460V
Phase 3-Phase
Frequency 60 Hz
Motor Speed 876rpm
Full Load Current 93/A
Motor Protection KLIXON
Motor Efficiency 94%
Insulation Class H
Protection Class (IP) IP68
Max Fluid Temperature 104°F
Max Ambient Temperature 104°F
Outlet Connection 10inch
Pipe Pressure Rating PN 10
Pipe Standard ANSI
Impeller Material Ductile iron
Housing Material Ductile cast iron
Applications
Plumbing: Sewage
Industrial wastewater treatment & reuse
Municipal wastewater transport
Stormwater control
Municipal wastewater treatment
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 460V, 3-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 104°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 99442954
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 99442954 · 99442954Authorized Grundfos Distributor · pump-stop.com
Actual impeller diameter
19.3 in
Approvals on nameplate
FM
Auto-coupling
97510048
Built-in motor protection
KLIXON
Cable resistance
9.55 mOhm/m
Cable size
2X4X25MM2+1X10X1,5MM2
Cable type
S1BC4N8-F
Connection
ANSI
Cos phi 1/1
0.82
Cos phi 1/2
0.71
Curve tolerance
ANSI/HI11.6:2017 3B
Density
62.29 lb/ft³
Diameter
19.3 in
Enclosure class (IEC 34-5)
IP68
Frame range
66
Frequency
60 Hz
Gross weight
3540.0 lb
Head max
100.1 ft
Housing
Ductile cast iron
I MAX
93A
Impeller
Ductile cast iron
Inst dry/wet
D/S
Insulation
H
Insulation class (IEC 85)
H
IP Class
IP68
Length of cable
49.2 ft
Liquid max temp
104°F
Liquid temperature range
32 .. 104 °F
Max flow
6440 US gpm
Maximum current consumption
93 A
Maximum installation depth
65.6 ft
Maximum particle size
4.13 in
Minimum ambient temperature
32°F
Moisture sensor
with moisture sensors
Motor
Cast iron
Motor efficiency at 1/2 load
0.92
Motor efficiency at 3/4 load
0.93
Motor efficiency at full load 1
0.94
n rpm
H
Net weight
3170.0 lb
P2 kW
76.4 HP
Phase
3
Power input - P1
61 kW
Primary shaft seal
SIC-SIC
Pump housing
Ductile cast iron
Range of ambient temperature
32 .. 104 °F
Rated current
93/ A
Rated current at no load
39.4 A
Rated power - P2
76.4 HP
Rated speed
876 rpm
Rated voltage
3 x 460 V
Sales region
Namreg
Shaft
Product name:S2.40.A100.760.8.66H.C.489.G.EX.D.611
Shaft seal
SIC-SIC
Standard
FM 3600, 3615 AND 3615.80
Start. 1 method
star/delta
Starting current
861 A
Type
S1BC4N8-F
Type of connection
ANSI
Type of impeller
2-CHANNEL
Voltage tolerance
+10/-10 %
Water-in-oil sensor
with water-in-oil sensor
Winding resistance
0.119 Ohm
