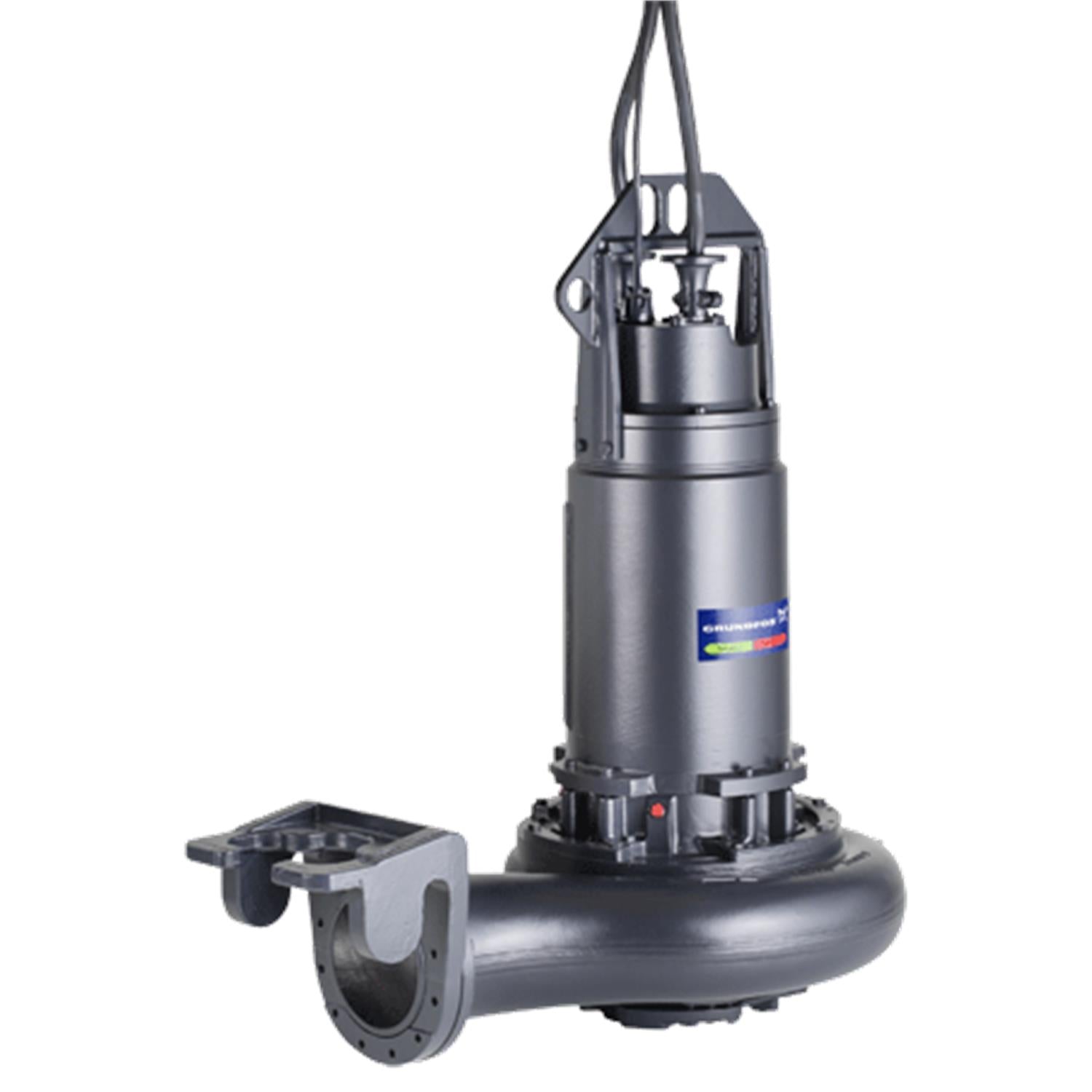

![Grundfos 99442953 - S2.40.A100.760.8.66H.S.489.G.EX.D.611]()
![Grundfos 99442953 - S2.40.A100.760.8.66H.S.489.G.EX.D.611]()
![Grundfos 99442953 - S2.40.A100.760.8.66H.S.489.G.EX.D.611]()
![Grundfos 99442953 - S2.40.A100.760.8.66H.S.489.G.EX.D.611]()
Description
Grundfos 99442953 - S2.40.A100.760.8.66H.S.489.G.EX.D.611 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Motor efficiency at full load 1
0.94
Density
62.29 lb/ft³
Type of connection
ANSI
Rated voltage
3 x 460 V
Power input - P1
61 kW
Frame range
66
Maximum installation depth
65.6 ft
Inst dry/wet
S
Maximum current consumption
93 A
Starting current
861 A
Liquid temperature range
32 .. 104 °F
Insulation class (IEC 85)
H
Motor efficiency at 1/2 load
0.92
Built-in motor protection
KLIXON
Net weight
2860.0 lb
Rated speed
876 rpm
Gross weight
3230.0 lb
Rated power - P2
76.4 HP
Enclosure class (IEC 34-5)
IP68
Motor efficiency at 3/4 load
0.93
Shaft
Product name:S2.40.A100.760.8.66H.S.489.G.EX.D.611
Rated current
93/ A
Cable type
S1BC4N8-F
Voltage tolerance
+10/-10 %
Length of cable
49.2 ft
Cable size
2X4X25MM2+1X10X1,5MM2
Cable resistance
9.55 mOhm/m
Moisture sensor
with moisture sensors
Sales region
Namreg
Range of ambient temperature
32 .. 104 °F
Auto-coupling
97510048
Winding resistance
0.119 Ohm
Water-in-oil sensor
with water-in-oil sensor
Max flow
6440 US gpm
Cos phi 1/1
0.82
Head max
100.1 ft
Diameter
19.3 in
Motor
Cast iron
Approvals on nameplate
FM
Housing
Ductile cast iron
Cos phi 1/2
0.71
Actual impeller diameter
19.3 in
Type of impeller
2-CHANNEL
Type
S1BC4N8-F
Curve tolerance
ANSI/HI11.6:2017 3B
Primary shaft seal
SIC-SIC
Maximum particle size
4.13 in
Connection
ANSI
Impeller
Ductile cast iron
Pump housing
Ductile cast iron
Standard
FM 3600, 3615 AND 3615.80
Rated current at no load
39.4 A
