Description

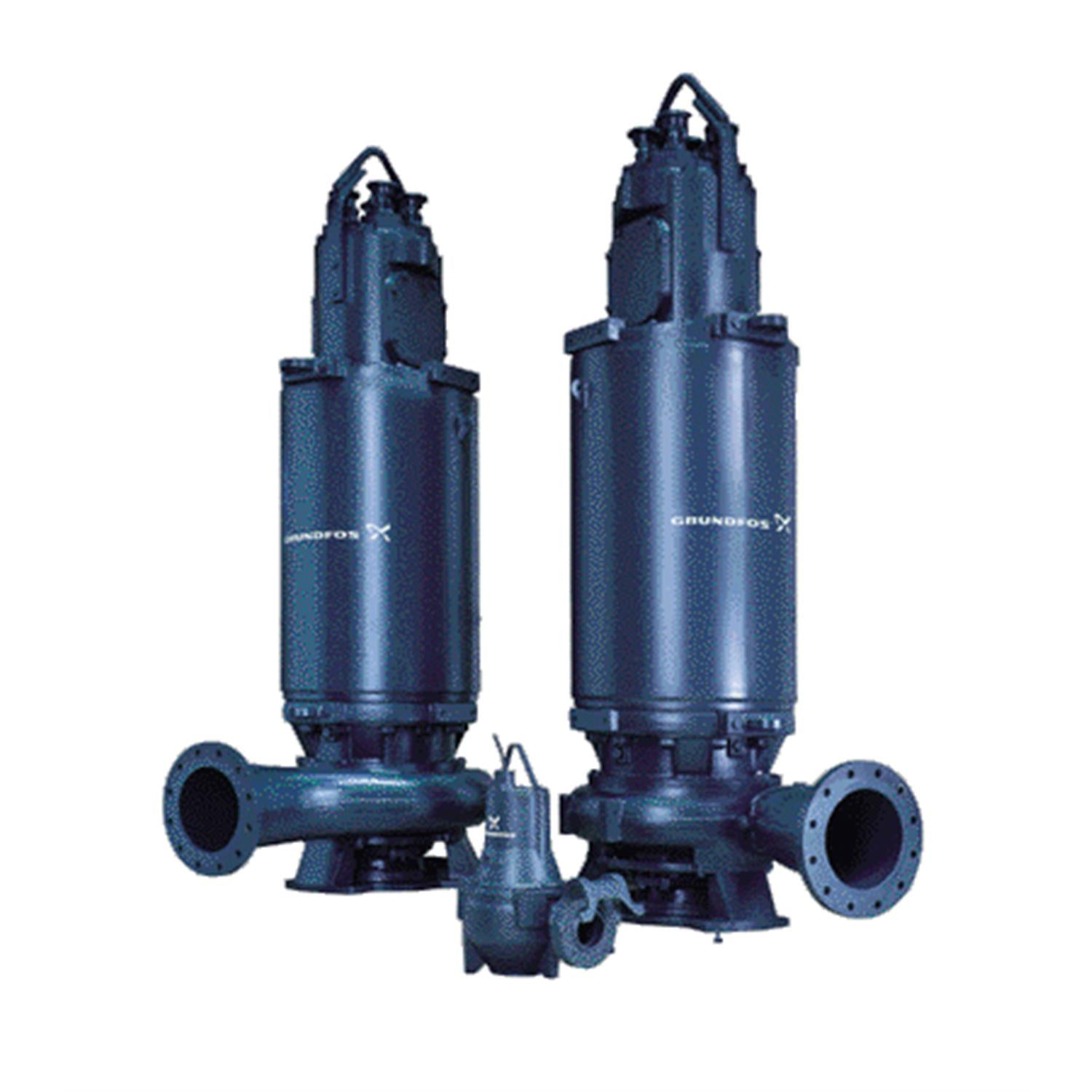

S2. 35. A80. 1610. 4. 70H. H. 361. G. EX. D. 611 | The pump is designed for intermittent and continous operation. The cooling jacket ensures that the pump can operate submerged or dry installed without motor cooling. The two-channel impeller handles solids up to 3. 54 in in size. A SmartTrim impeller clearance adjustment system makes it possible to maintain maximum performance throughout the lifetime of the pump. To facilitate easy transportation as well as installation on-site, the pump is fitted with a robust lifting bracket. For installation on auto coupling, the Grundfos SmartSeal gasket system provides a leak-proof connection. Pipework connections are via a ANSI flange. The pump is explosion-proof. Controls: Moisture sensor:
Motor Curves
Dimensional Drawing
