Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

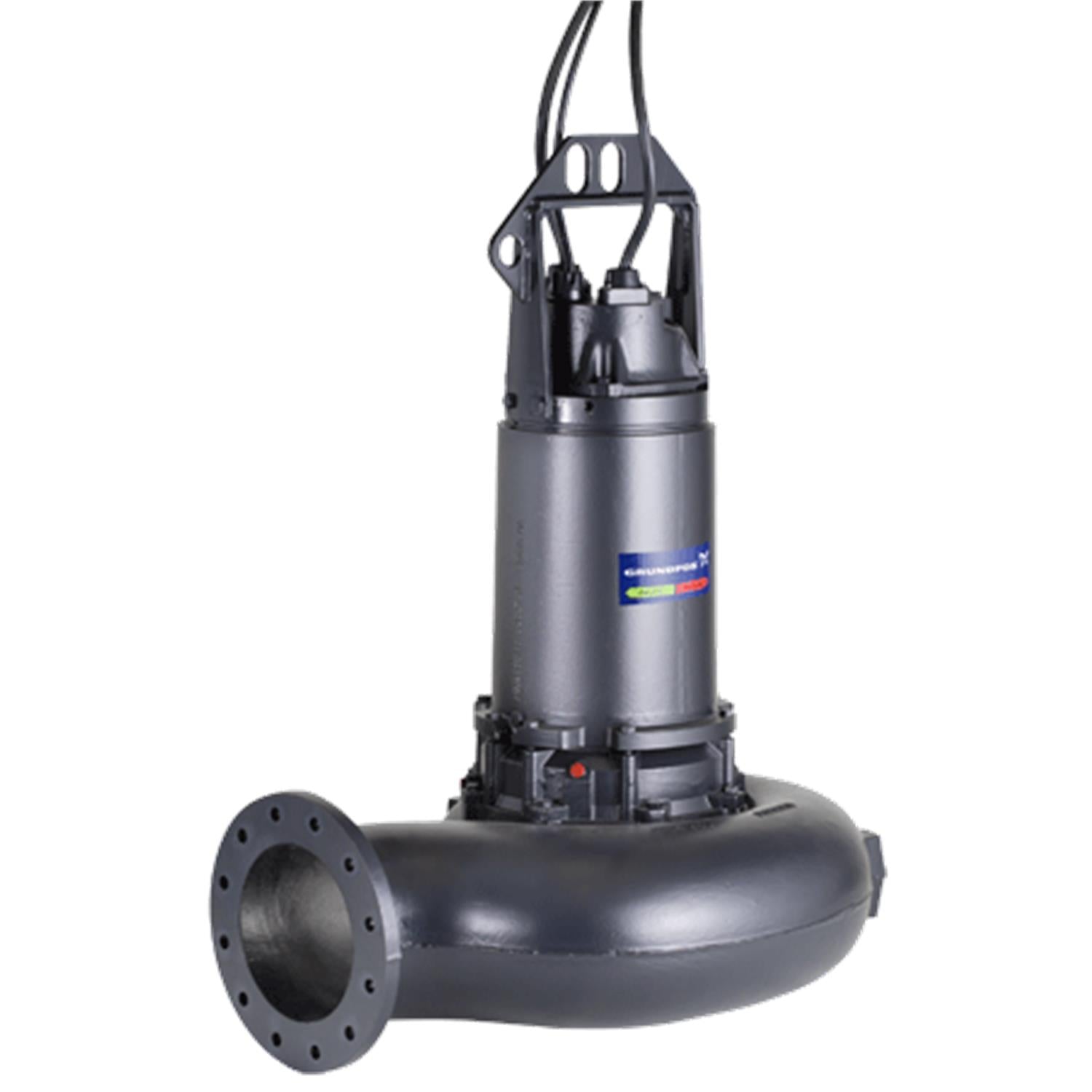

97708921 · Grundfos Accessory / Spare Part / Control
The Grundfos 97708921 (S1.40.A80.980.4.66H.D.358.G.EX.D.611) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 460V, 3-Phase, 60 Hz. Applications include Plumbing: Sewage, Industrial wastewater treatment & reuse, Municipal wastewater transport and more.
Power
97.9HP
Voltage
460V
Phase
3-Phase
Frequency
60 Hz
Max Fluid Temp
104°F
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
Model Information — 97708921
Series: ACC
Impeller Material: Ductile iron
Housing Material: Cast iron
Flange Rating: PN 10
Technical Specifications
| Model Number | 97708921 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Power | 97.9HP |
| Voltage | 460V |
| Phase | 3-Phase |
| Frequency | 60 Hz |
| Motor Speed | 1776rpm |
| Full Load Current | 114/A |
| Motor Protection | KLIXON |
| Motor Efficiency | 94% |
| Insulation Class | H |
| Protection Class (IP) | IP68 |
| Max Fluid Temperature | 104°F |
| Max Ambient Temperature | 104°F |
| Inlet Connection | 10inch |
| Outlet Connection | 8inch |
| Pipe Pressure Rating | PN 10 |
| Pipe Standard | ANSI |
| Impeller Material | Ductile iron |
| Housing Material | Cast iron |
Applications
Plumbing: Sewage
Industrial wastewater treatment & reuse
Municipal wastewater transport
Stormwater control
Municipal wastewater treatment
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 460V, 3-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 104°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 97708921
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- EAN
- 5710622454826
- Applications
- Wastewater
- Actual impeller diameter
- 14.1 in
- Approvals and markings
- 74 m
- Approvals on nameplate
- FM
- Battery back-up
- 74 m
- Built-in motor protection
- KLIXON
- Cable resistance
- 9.55 mOhm/m
- Cable size
- 2X4X25MM2+1X10X1
- Cable type
- S1BC4N8-F
- Colour
- 74 m
- Connection
- 8 inch
- Cos phi 1/1
- 0.86
- Cos phi 1/2
- 0.76
- Cos phi 3/4
- 0.82
- Curve tolerance
- ANSI/HI11.6:2017 3B
- Density
- 62.29 lb/ft³
- Diameter
- 14.1 in
- Enclosure class (IEC 34-5)
- IP68
- Explosion proof
- yes
- Flow range
- 74 m
- Frame range
- 66
- Gross weight
- 2620.0 lb
- Head max
- 74 m
- Housing
- Cast iron
- Impeller
- Ductile cast iron
- Inst dry/wet
- D
- Inst vertical
- 96857815
- Insulation class (IEC 85)
- H
- Length
- 74 m
- Length of cable
- 15 m
- Liquid temperature range
- 32 .. 104 °F
- Mains frequency
- 60 Hz
- Material Pricing Group
- 7H
- Max flow
- 120 l/s
- Max starts per hour
- 15
- Maximum current consumption
- 114 A
- Maximum installation depth
- 20 m
- Maximum particle size
- 100 mm
- Moisture sensor
- with moisture sensors
- Motor
- Cast iron
- Motor efficiency at 1/2 load
- 0.93
- Motor efficiency at 3/4 load
- 0.94
- Motor efficiency at full load 1
- 0.94
- Net weight
- 2380.0 lb
- Number of leads
- 74 m
- Number of poles
- 4
- Pipework connection
- 74 m
- Power 1
- 78 kW
- Power input - P1
- 78 kW
- Pressure rating
- PN 10
- Pressure retention valve
- 74 m
- Primary shaft seal
- SIC-SIC
- Product family
- 66 Frame
- Pump housing
- Cast iron
- Range of ambient temperature
- 32 .. 104 °F
- Rated current
- 114/ A
- Rated current at no load
- 43 A
- Rated power - P2
- 73 kW
- Rated speed
- 1776 rpm
- Rated voltage
- 3 x 460 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Sales region
- Namreg
- Sens.interface
- 74 m
- Size
- 2X4X25MM2+1X10X1
- Size of inlet connection
- 10 inch
- Size of outlet connection
- 8 inch
- Standard
- FM 3600
- Start. method
- star/delta
- Starting current
- 1100 A
- Type
- S1BC4N8-F
- Type of connection
- ANSI
- Type of impeller
- 1-CHANNEL
- Valve type
- 74 m
- Voltage tolerance
- +10/-10 %
- Water-in-oil sensor
- with water-in-oil sensor
- Winding resistance
- 0.063 Ohm
Dimensional Drawing
Wiring Diagram
