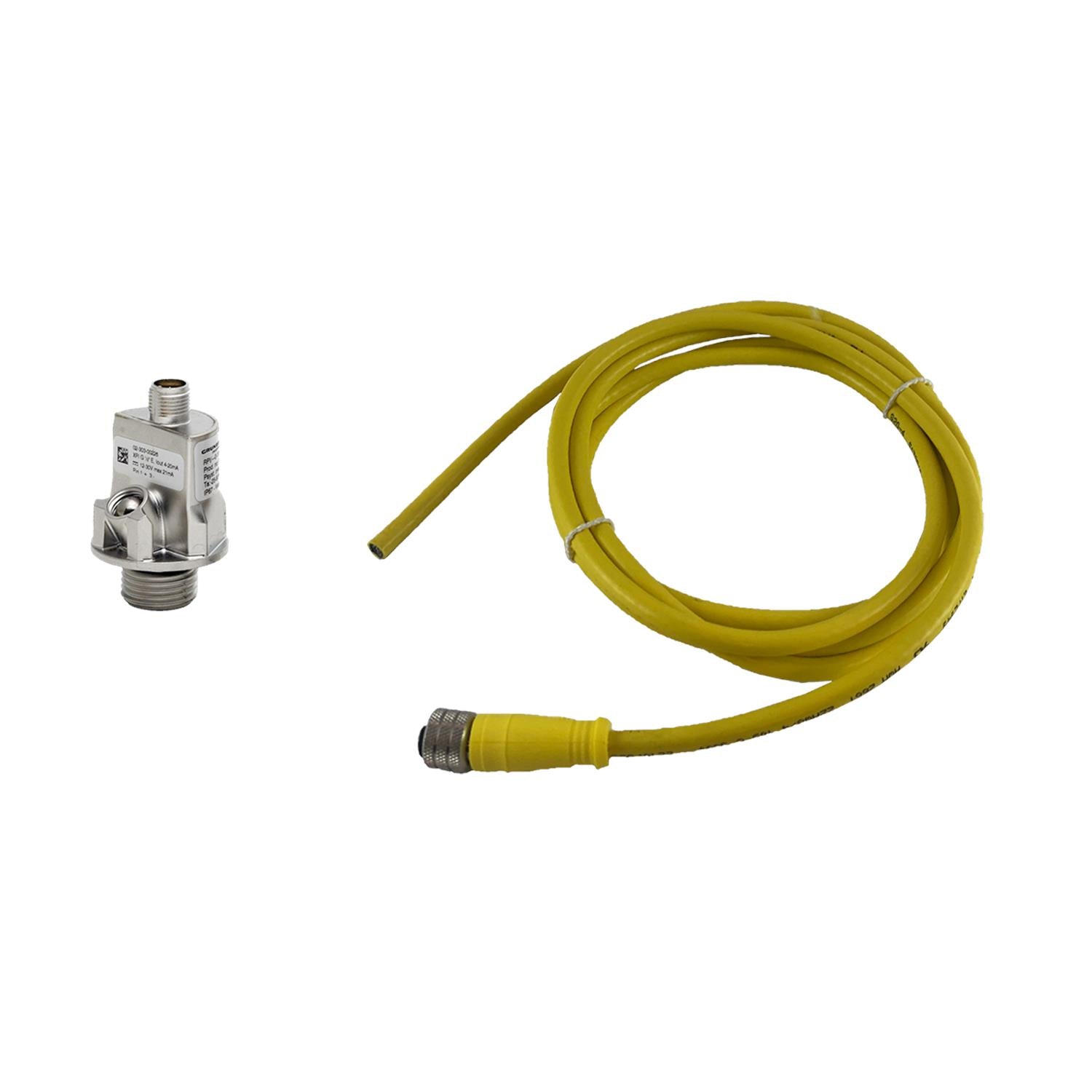

Grundfos 97748928 - RPI/--0-1.0b/1/ F/M2.00-X/EG6/--/---/SC-1 | Pump Interface | Remote Control

Save $149.70 This item ships free!
GRUNDFOSSKU: 97748928

Price:
Sale price$349.30 Regular price$499.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

RPI/--0-1. 0b/1/ F/M2. 00-X/EG6/--/---/SC-1 | The transmitter is made of 1. 4404 stainless steel.

EAN 5710623704784
Approvals CCSAUS
Approvals for drinking water AS4020
Enclosure class (IEC 34-5) IP67
Flow functionality (Yes/No) N
Length of cable 2 m
Liquid temperature range -22 .. 248 °F
Material Pricing Group 46
Maximum measuring temperature 100 °C
Minimum measuring temperature 0 °C
Pressure differential functionality = Yes/No N
Pressure relative functionality (Yes/No) Y
Product family RPI
Range of ambient temperature -13 .. 140 °F
Rated voltage dc 30.00 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Danish VVS No. 475270210
Finnish LVI No. 4534510

Motor Curves

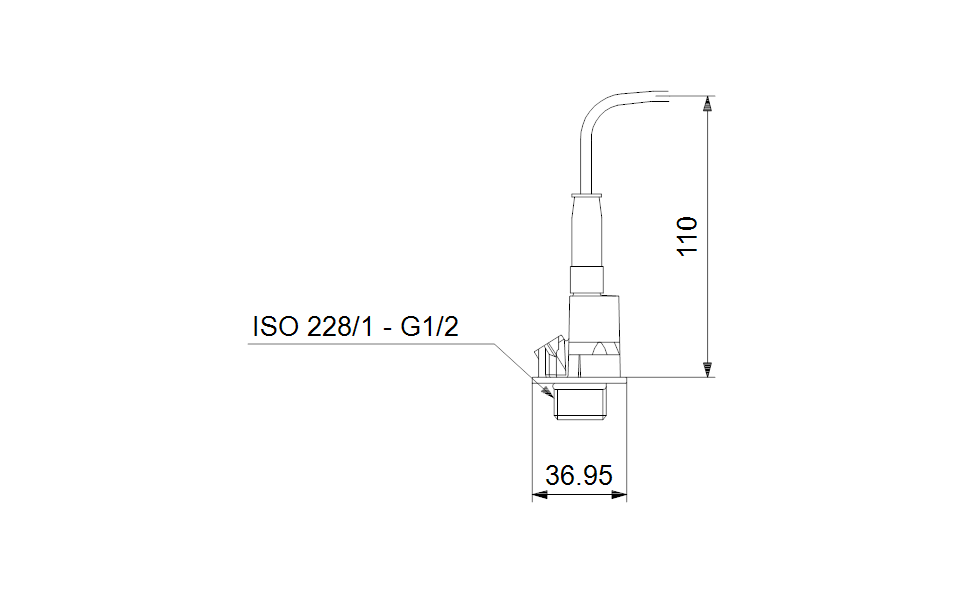

Dimensional Drawing
