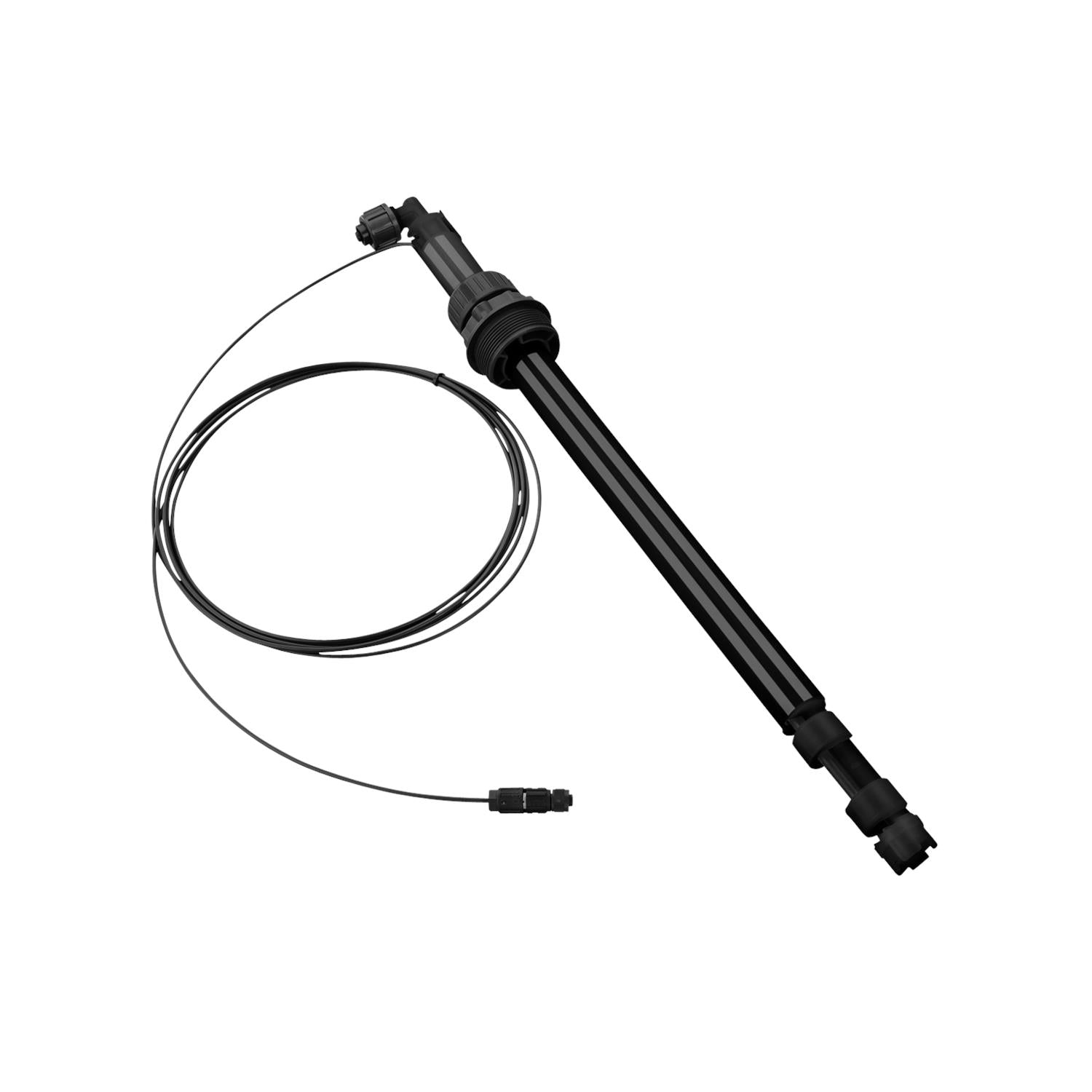

Grundfos 98071074 - Rigid Suction Lance with Level

This item ships free!
GRUNDFOSSKU: 98071074

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Rigid suction lance w. level Rigid suction lance with adjustable length for mounting in a tank. They are installed at the lower end of the suction hose and consist of strainer (mesh size 0. 8mm) non return valve, protective pipe and tank connection with entry holes for relief line and deaeration lineAdditionally they include: Reed-switch unit with two floaters for low level and empty indication (switch mode adjustable NO or NC)
Cable with PE jacket
M 12 plug to connect DDA, DDC, DDE or DDI dosing pump

EAN 5710628439032
Applications Accessories
Basic PE
Connection 45081
Gasket FKM/EPDM
Immersion depth 15.7 in
Length of cable 5 m
Material Pricing Group 67
Max. Flow 60 l/h
Pipework connection 45081
Product family Rigid suction lances
Pump connection G5/8
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Type Round
Type of cable plug M12
Type of connection Hose
Valve ball Ceramic
Valve type Low level and empty tank
