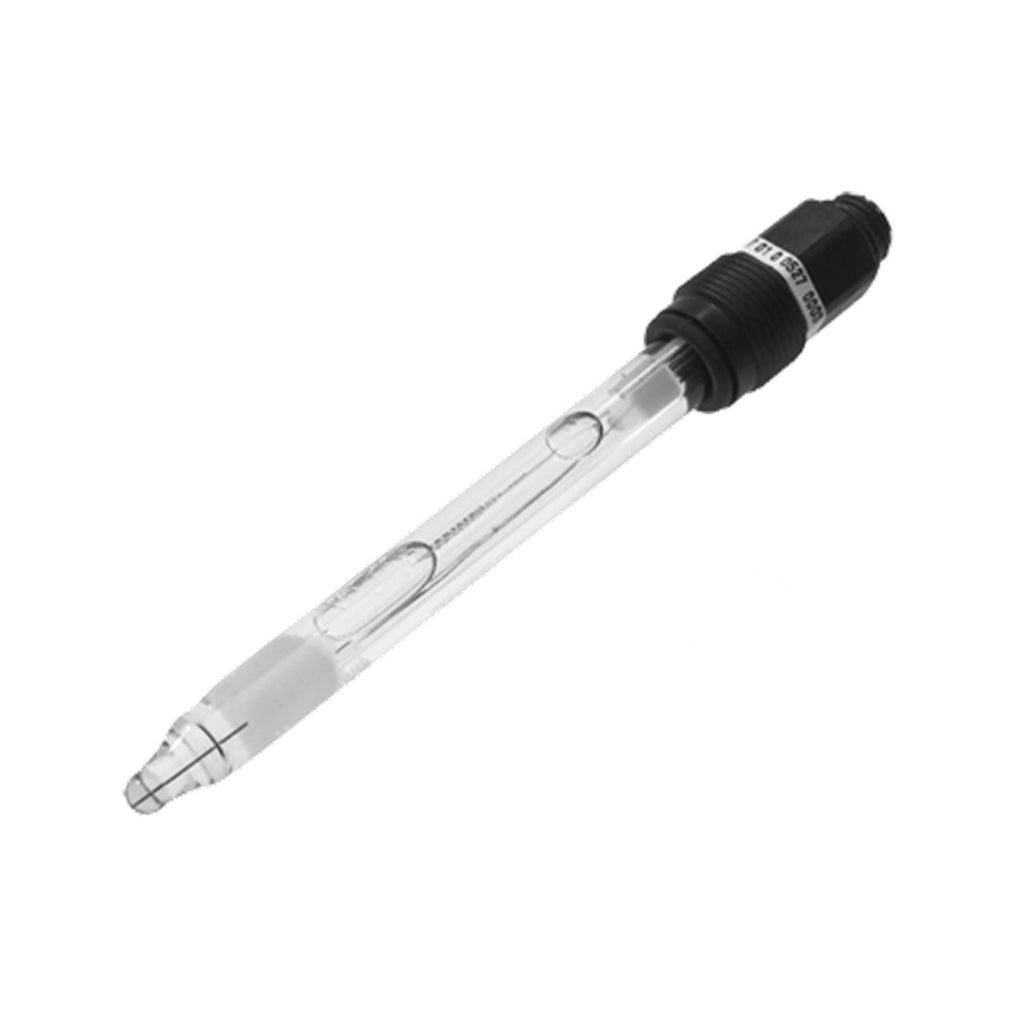

Grundfos 96609162 - redox (ORP) single-rod MeasuRing Cell

This item ships free!
GRUNDFOSSKU: 96609162

Price:
Sale price$551.39
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 96609162 redox (ORP) single-rod MeasuRing Cell is a water quality sensor designed for use with controller systems and measurement panels. It is suitable for technicians and operators who monitor oxidation-reduction potential in pools, water treatment, and process control applications.

Key features

  • Compact single-rod design for inline ORP (redox) measurement
  • Works with measurement control and controller systems from related equipment categories
  • Provides reliable redox readings to support accurate water quality monitoring and chemical dosing

Applications

Typical uses include pool and spa disinfection monitoring, municipal and industrial water treatment, and process control measurement systems where ORP feedback is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96609162

EAN 5700832322640
Basic PT - Platinum
Electrode 1 redox (ORP)
Electrode 2 no value
Flow sensor no value
Material Pricing Group 91
Maximum operating pressure 6 bar
Measuring cell redox (ORP)
Pressure retention valve no value
Product number Alldos 313-100
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Redox range +/-1500 mV
Sensor type redox (ORP)
Temp. sensor no value
Type redox (ORP)
Valve no value

Motor Curves

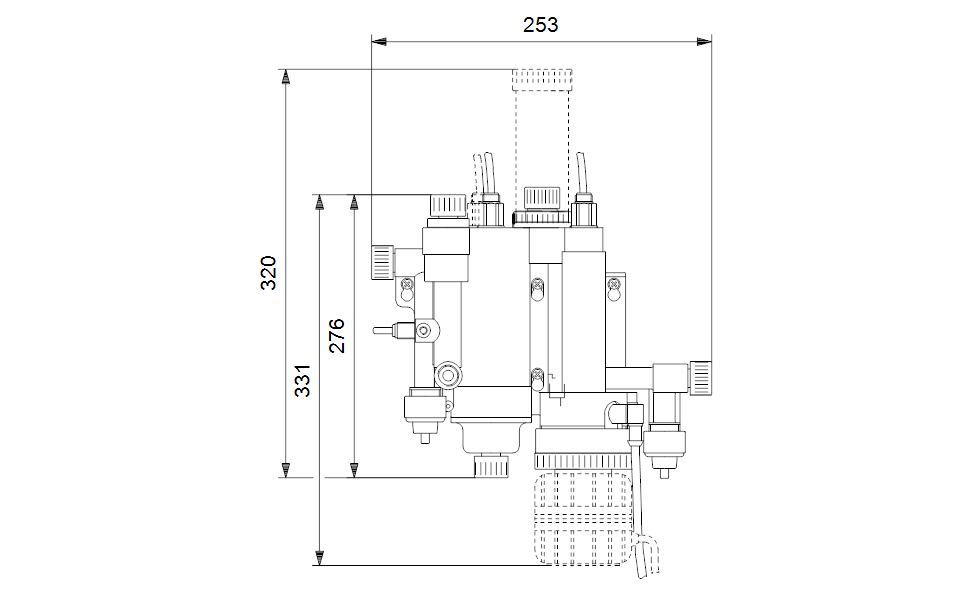

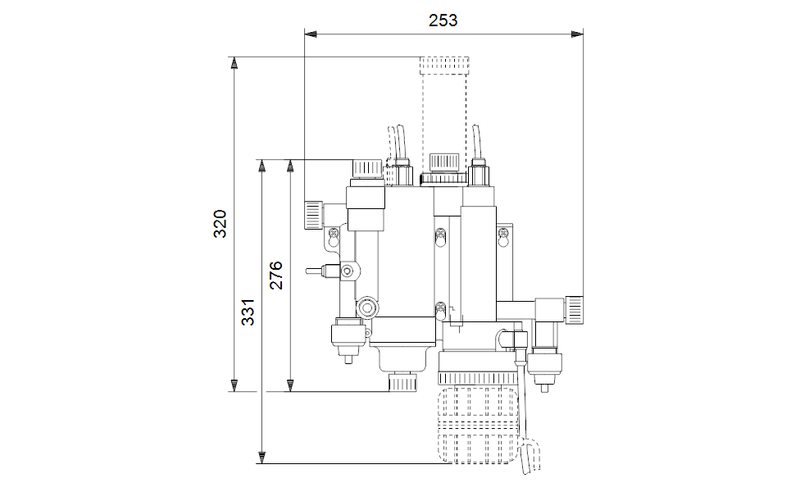

Dimensional Drawing
