Grundfos 96408954 - Pt100 incl. PR 5714 with 60m cable | Submersible

This item ships free!
GRUNDFOSSKU: 96408954

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

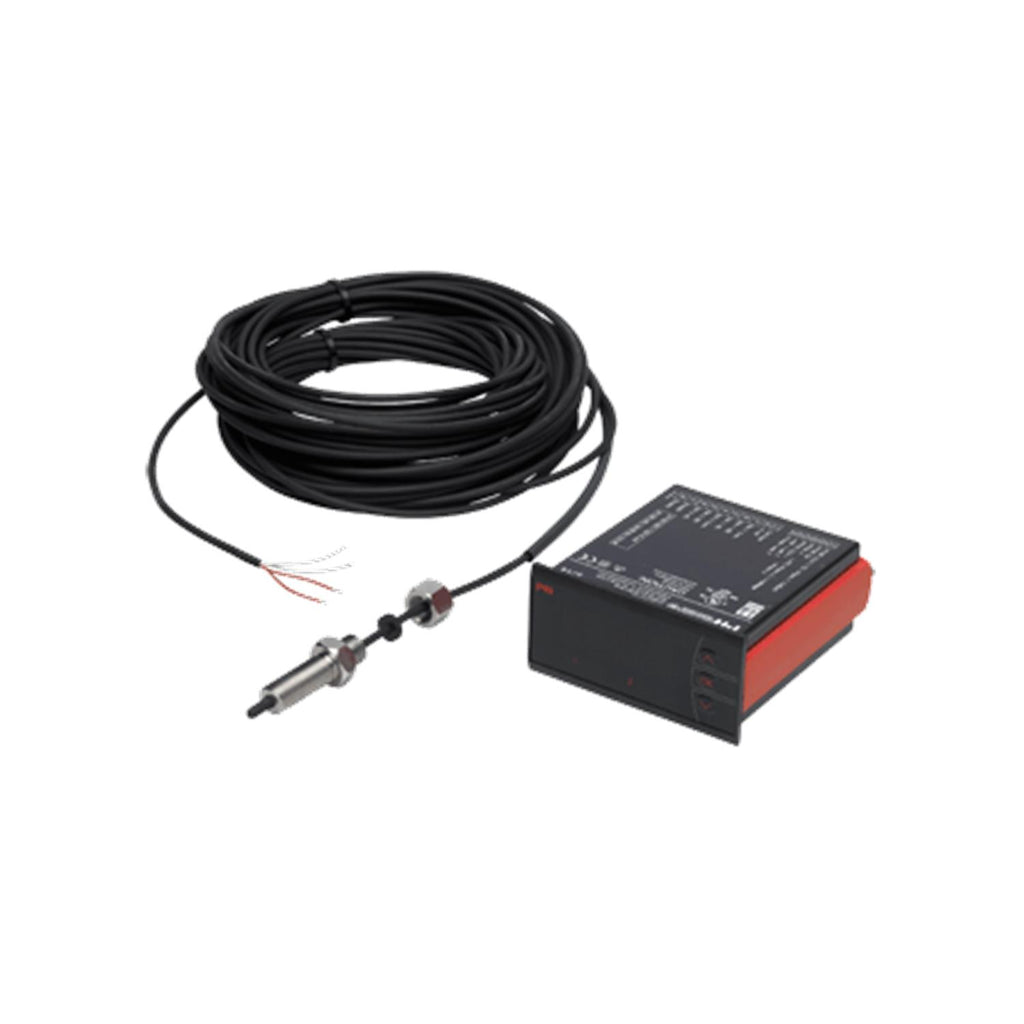

Pt100 incl. PR 5714 with 60m cable The Pt100 is a temperature-dependent resistance sensor, suitable for installation in a MS6 submersible motor. A Pt100 sensor allows; continuous monitoring of the motor temperature,
protection against too high motor temperature. Monitoring and protection by means of a Pt100 sensor require relay/transmitter type EDM 35 or transmitter type PR 2202.

EAN 5708601066665
Applications Accessories
Approvals UL
Enclosure class (IEC 34-5) IP65
Fits to following products MS6
Gross weight 4.28 lb
Length of cable 60 m
Material Pricing Group 91
Product family Pt100/Pt1000 motor temperature sensors
Range of ambient temperature 32 .. 122 °F
Rated voltage ac x 24-230 V
Rated voltage dc 24-250 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Relative humidity 0.95
