Premium Efficient Stainless Steel Motor, Totally Enclosed Non-Ventilated, 3 HP, 1800 RPM, 230/460V, 182TCRD Frame, C-Face Round Body (Footless) 460V 60HZ Three Phase 3 HP Stainless Steel

WorldWide ElectricSKU: SSPENV3-18-182TCRD

Price:
Sale price$1,745.91
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

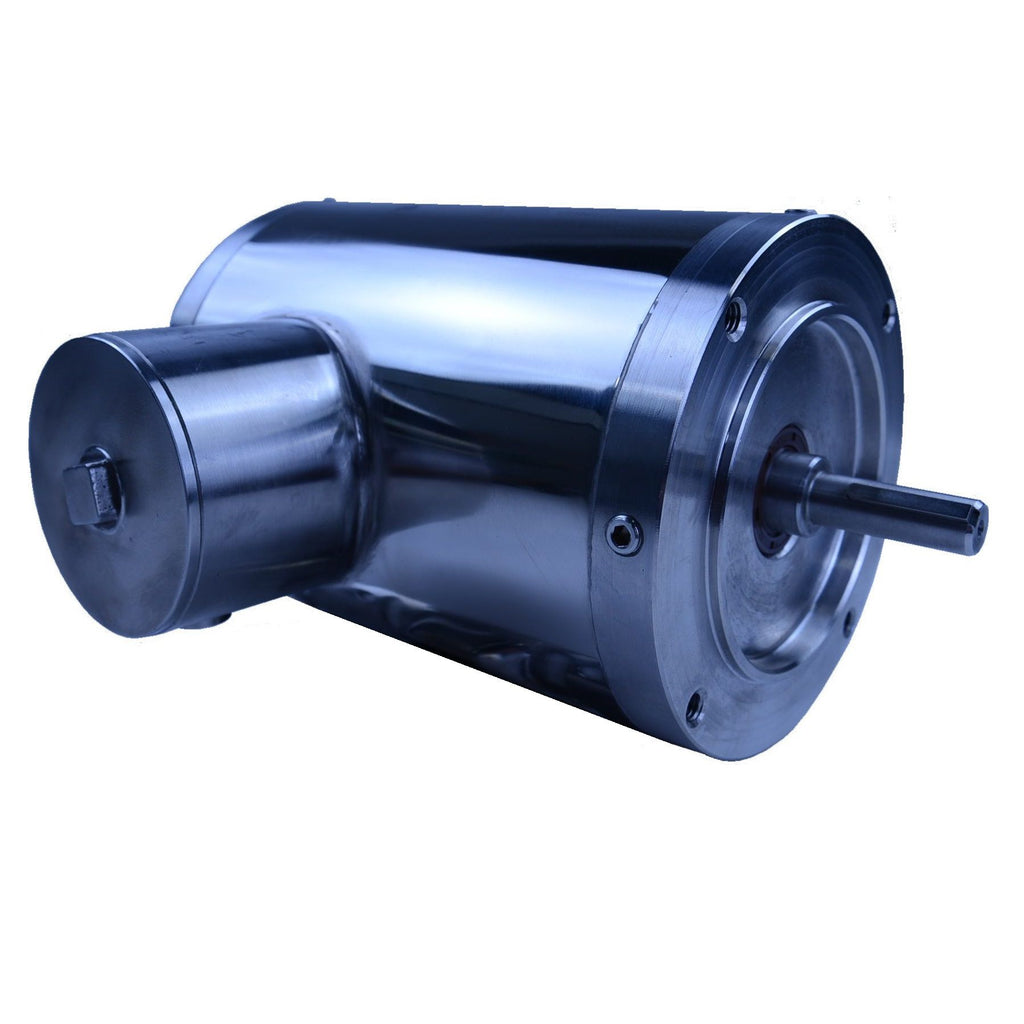

Premium Efficient Stainless Steel Motor - 3 HP, 1800 RPM

Introducing the WorldWide Electric Wash-down Stainless Steel Motor, designed for durability and efficiency in demanding environments. This 3 HP motor operates at 1800 RPM and is suitable for three-phase applications with a voltage rating of 230/460V. Featuring a 182TCRD frame and a totally enclosed non-ventilated (TENV) design, this motor is perfect for wash-down applications where moisture and corrosion resistance are essential.

Key features include:

  • Premium efficiency for reduced energy consumption
  • Stainless steel construction for superior durability
  • C-Face round body (footless) mounting for versatile installation
  • 1.15 service factor for enhanced performance

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, which is SSPENV3-18-182TCRD. If you’re having trouble locating the right item, our team is here to help!

Category Electric Motors
Approximate Weight (lbs) 99
Degree of Protection IP69K
Duty Cycle S1
Efficiency 100% 89.5%
Enclosure Type TENV
FL Efficiency (%) 89.5
Frame Size 182TCRD
Full Load Amps @ 460V 3.8
Horsepower 3
Insulation Class Class F
Locked Rotor Time (Hot) 12 seconds
Max. Ambient Temperature 40°C
Max. Elevation 3300 ft
Mounting Type C-Face Round Body (Footless)
NEMA Code Letter N
NEMA Design B
Phase Three-Phase
Poles 2
RPM 1800
Service Factor 1.15
Temperature Rise (C) 80 C
Voltage 230/460

Motor Curves
