Premium Efficient Stainless Steel Motor, Totally Enclosed Non-Ventilated, 2 HP, 3600 RPM, 230/460V, 56CRD Frame, C-Face Round Body (Footless) 460V 60HZ Three Phase 2 HP Stainless Steel 56°C

WorldWide ElectricSKU: SSPENV2-36-56CRD

Price:
Sale price$1,112.68
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

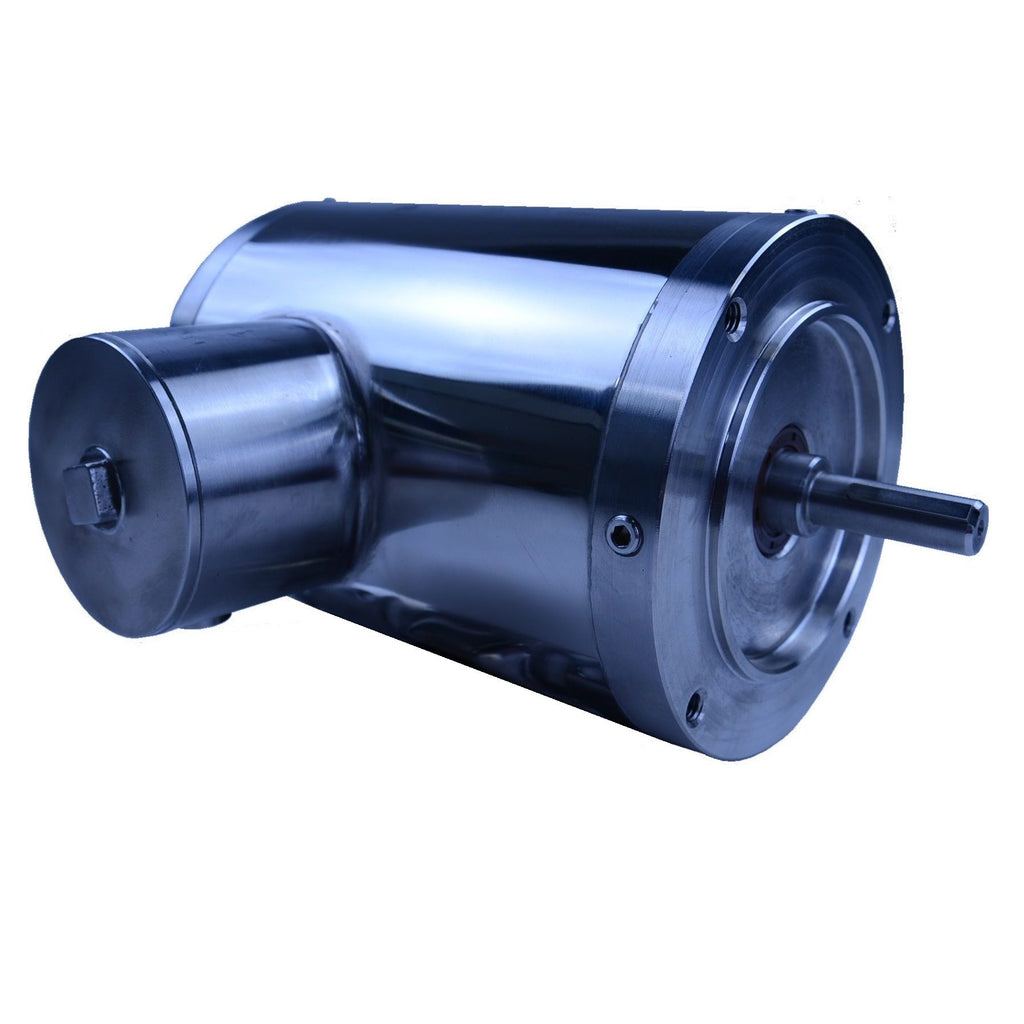

Premium Efficient Stainless Steel Motor by WorldWide Electric

Introducing the SSPE 2 HP Stainless Steel Wash-down Motor, designed for high-performance applications requiring durability and efficiency. This totally enclosed non-ventilated (TENV) motor operates at 3600 RPM and is suitable for three-phase systems with a voltage rating of 208-230/460V. With a 1.15 service factor and a 56C frame, this motor is built to withstand the rigors of wash-down environments.

Constructed from premium stainless steel, this motor is not only resistant to corrosion but also ensures long-lasting performance in demanding conditions. The C-face round body (footless) design allows for versatile mounting options, making it an ideal choice for various industrial applications.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, which is SSPENV2-36-56CRD. If you encounter any difficulties, our team is here to help you find the perfect solution.

Category Electric Motors
Approximate Weight (lbs) 60
Degree of Protection IP69K
Duty Cycle S1
Efficiency 100% 85.5%
Enclosure Type TENV
FL Efficiency (%) 85.5
Frame Size 56CRD
Full Load Amps @ 460V 2.5
Horsepower 2
Insulation Class Class F
Locked Rotor Time (Hot) 12 seconds
Max. Ambient Temperature 40°C
Max. Elevation 3300 ft
Mounting Type C-Face Round Body (Footless)
NEMA Code Letter N
NEMA Design B
Phase Three-Phase
Poles 2
RPM 3600
Service Factor 1.15
Temperature Rise (C) 80 C
Voltage 230/460

Motor Curves
