Premium Efficient Stainless Steel Motor, Totally Enclosed Non-Ventilated, 1 HP, 3600 RPM, 230/460V, 143TC Frame, C-Face With Feet 460V 60HZ Three Phase 1 HP Stainless Steel

WorldWide ElectricSKU: SSPENV1-36-143TC

Price:
Sale price$688.11
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

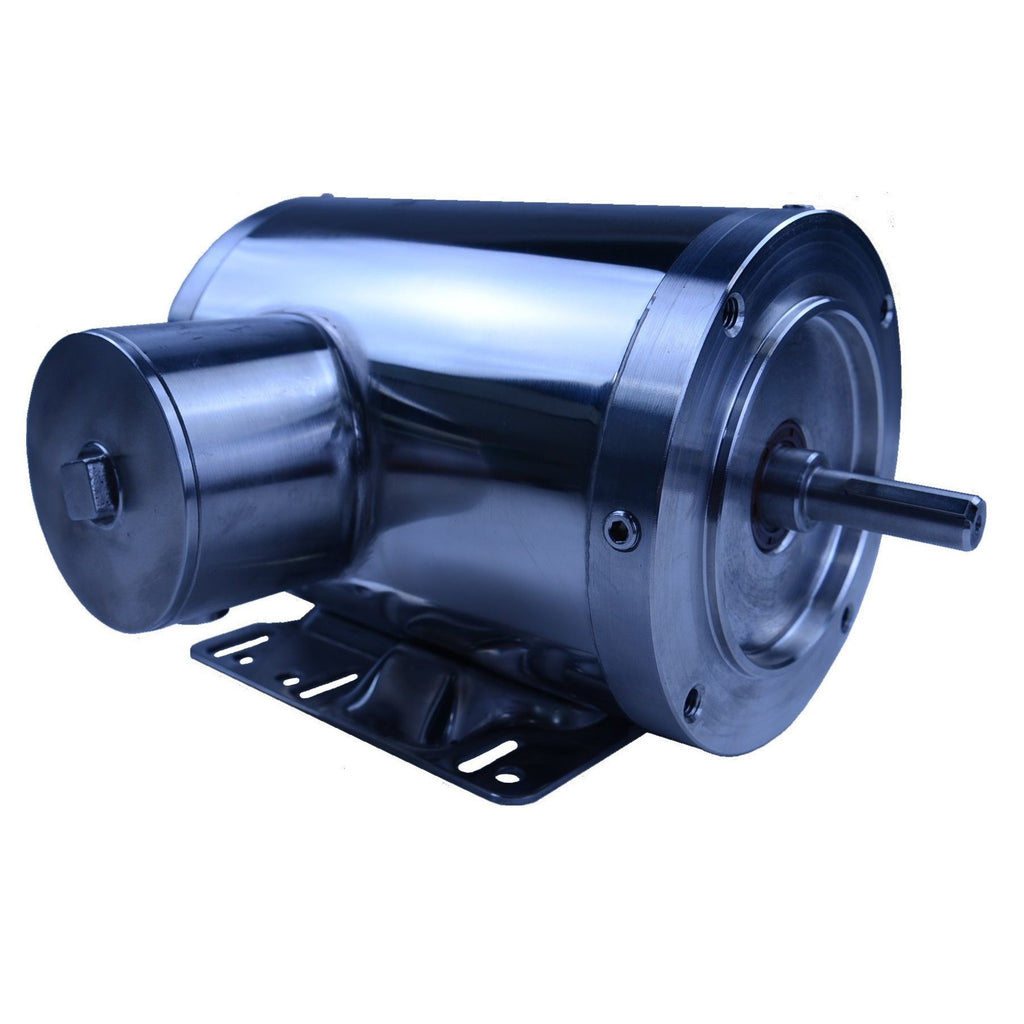

Premium Efficient Stainless Steel Motor - 1 HP, 3600 RPM

Introducing the WorldWide Electric Wash-down Stainless Steel Motor, designed for durability and efficiency in demanding environments. This 1 HP motor operates at 3600 RPM and is suitable for three-phase applications with a voltage rating of 230/460V. Featuring a 143TC frame and a totally enclosed non-ventilated (TENV) design, this motor is perfect for wash-down applications where moisture and contaminants are a concern.

Key features include:

  • Premium efficiency for reduced energy consumption
  • Stainless steel construction for enhanced corrosion resistance
  • C-face rigid mounting for easy installation
  • 1.15 service factor for added reliability

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, which is SSPENV1-36-143TC. If you’re having trouble locating the right item, our team is here to help!

Category Electric Motors
Approximate Weight (lbs) 39
Degree of Protection IP69K
Duty Cycle S1
Efficiency 100% 80%
Enclosure Type TENV
FL Efficiency (%) 80.0
Frame Size 143TC
Full Load Amps @ 460V 1.4
Horsepower 1
Insulation Class Class F
Locked Rotor Time (Hot) 12 seconds
Max. Ambient Temperature 40°C
Max. Elevation 3300 ft
Mounting Type C-Face with Feet
NEMA Code Letter N
NEMA Design B
Phase Three-Phase
Poles 2
RPM 3600
Service Factor 1.15
Temperature Rise (C) 80 C
Voltage 230/460

Motor Curves
