Premium Efficient Stainless Steel Motor, Totally Enclosed Non-Ventilated, 1.5 HP, 3600 RPM, 230/460V, 143TCRD Frame, C-Face Round Body (Footless) 460V 60HZ Three Phase 1.5 HP Stainless Steel

WorldWide ElectricSKU: SSPENV1.5-36-143TCRD

Price:
Sale price$738.31
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

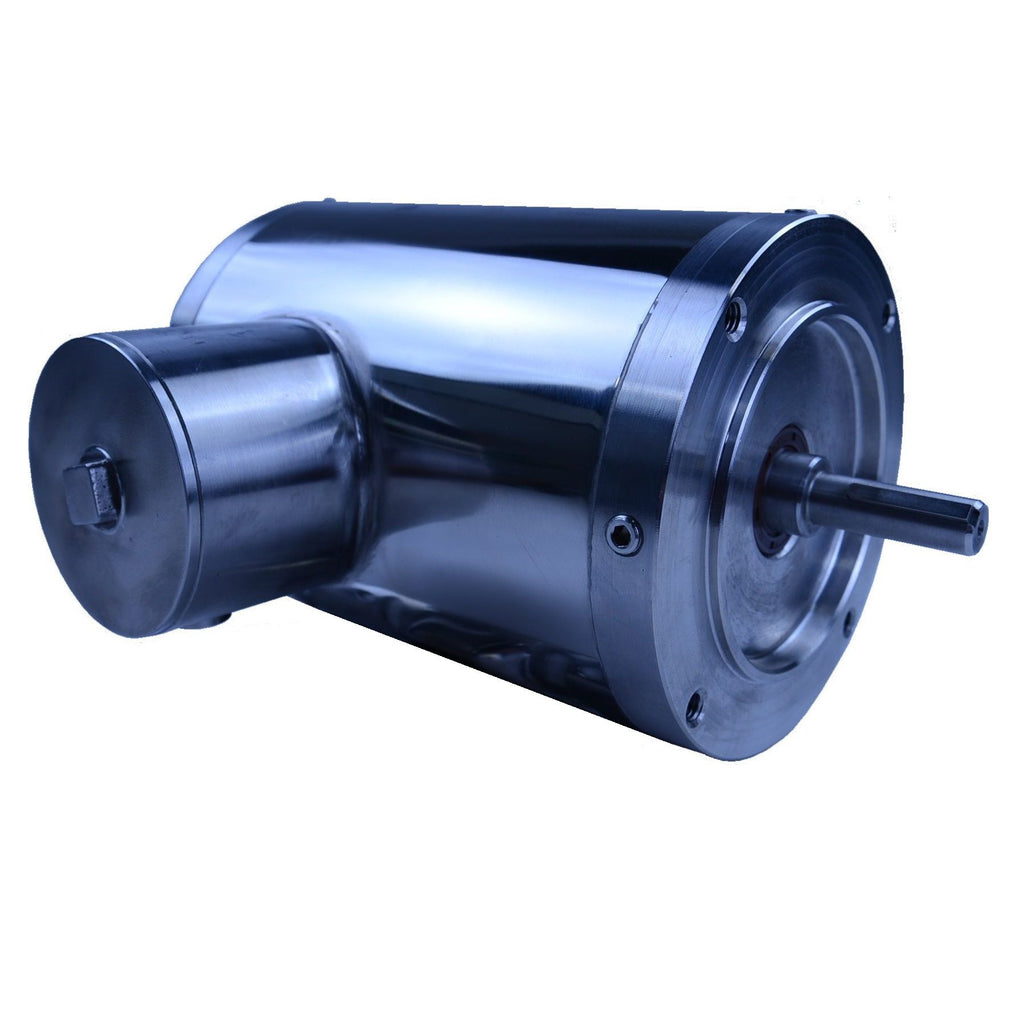

Premium Efficient Stainless Steel Motor by WorldWide Electric

Introducing the 1.5 HP Premium Efficient Stainless Steel Motor, designed for optimal performance in demanding wash-down applications. This totally enclosed non-ventilated (TENV) motor operates at 3600 RPM and is suitable for 230/460V three-phase power systems. With a robust 143TCRD frame and a C-face round body (footless) mounting design, this motor is built to withstand harsh environments while delivering exceptional efficiency.

Key features include:

  • 1.5 HP power rating
  • Premium efficiency for reduced energy consumption
  • Stainless steel construction for durability and corrosion resistance
  • Ideal for wash-down applications
  • 1.15 service factor for enhanced performance

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, which is SSPENV1.5-36-143TCRD. If you’re having trouble locating the right item, our team is here to help!

Category Electric Motors
Approximate Weight (lbs) 46
Degree of Protection IP69K
Duty Cycle S1
Efficiency 100% 84%
Enclosure Type TENV
FL Efficiency (%) 84.0
Frame Size 143TCRD
Full Load Amps @ 460V 1.9
Horsepower 1.5
Insulation Class Class F
Locked Rotor Time (Hot) 12 seconds
Max. Ambient Temperature 40°C
Max. Elevation 3300 ft
Mounting Type C-Face Round Body (Footless)
NEMA Code Letter N
NEMA Design B
Phase Three-Phase
Poles 2
RPM 3600
Service Factor 1.15
Temperature Rise (C) 80 C
Voltage 230/460
