Premium Efficient Stainless Steel Motor, Totally Enclosed Non-Ventilated, 1.5 HP, 1800 RPM, 230/460V, 56CRD Frame, C-Face Round Body (Footless) 460V 60HZ Three Phase 1.5 HP Stainless Steel 56°C

WorldWide ElectricSKU: SSPENV1.5-18-56CRD

Price:
Sale price$734.59
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

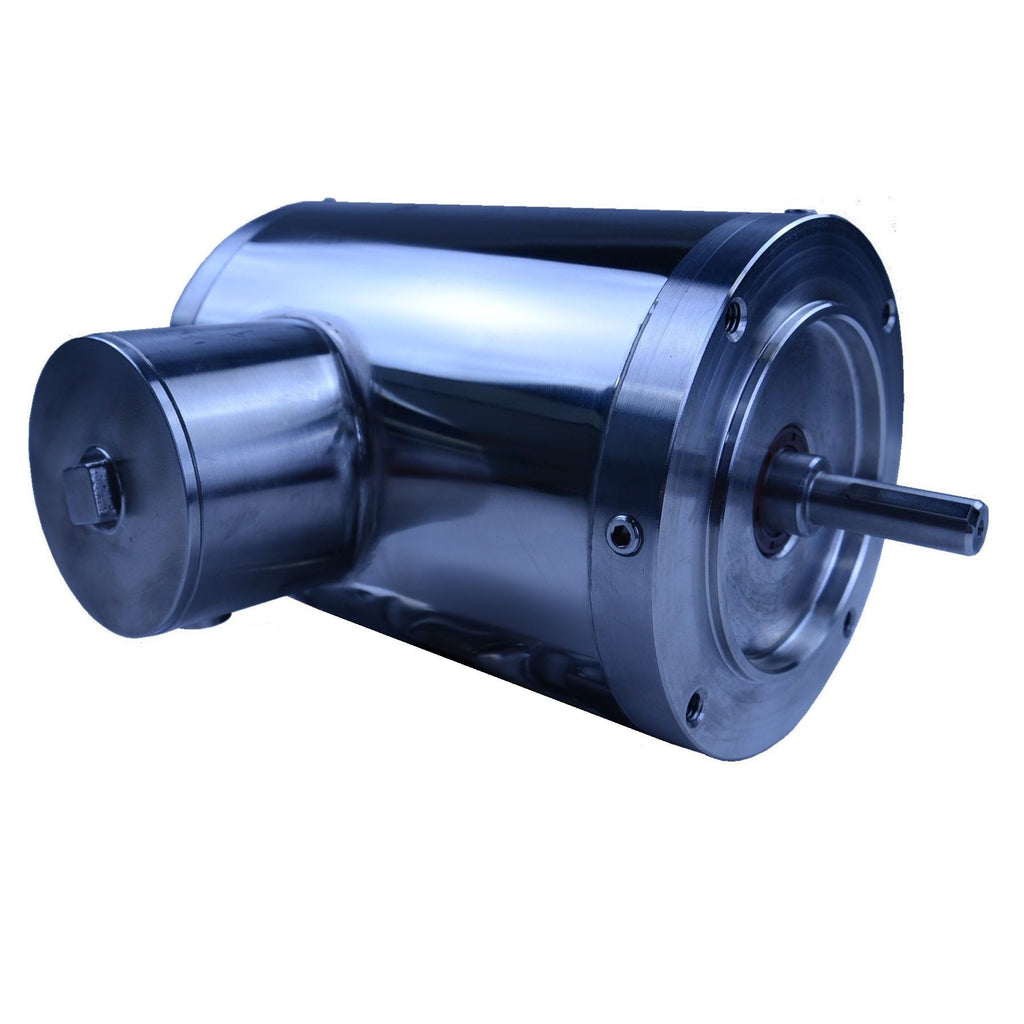

Premium Efficient Stainless Steel Motor by WorldWide Electric

Introducing the 1.5 HP Stainless Steel Wash-down Motor, designed for superior performance and durability in demanding environments. This Totally Enclosed Non-Ventilated (TENV) motor operates at 1800 RPM and is compatible with 230/460V power supply, making it an ideal choice for various industrial applications.

Key features include:

  • Power: 1.5 HP
  • Speed: 1800 RPM
  • Voltage: 230/460V
  • Frame: 56CRD
  • Type: C-Face Round Body (Footless)
  • Efficiency: Premium Efficiency
  • Construction: Stainless Steel for wash-down applications

This motor is perfect for environments where moisture and corrosion are a concern, ensuring longevity and reliability. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches this motor (SKU: SSPENV1.5-18-56CRD). If you encounter any difficulties, don’t hesitate to reach out to our knowledgeable team for support.

Category Electric Motors
Approximate Weight (lbs) 51
Degree of Protection IP69K
Duty Cycle S1
Efficiency 100% 86.5%
Enclosure Type TENV
FL Efficiency (%) 86.5
Frame Size 56CRD
Full Load Amps @ 460V 2.2
Horsepower 1.5
Insulation Class Class F
Locked Rotor Time (Hot) 12 seconds
Max. Ambient Temperature 40°C
Max. Elevation 3300 ft
Mounting Type C-Face Round Body (Footless)
NEMA Code Letter N
NEMA Design B
Phase Three-Phase
Poles 2
RPM 1800
Service Factor 1.15
Temperature Rise (C) 80 C
Voltage 230/460

Motor Curves
