Premium Efficient Stainless Steel Motor, Totally Enclosed Non-Ventilated, 0.75 HP, 3600 RPM, 230/460V, 56CRD Frame, C-Face Round Body (Footless) 460V 60HZ Three Phase 75 HP Stainless Steel 56°C

WorldWide ElectricSKU: SSPENV34-36-56CRD

Price:
Sale price$534.83
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

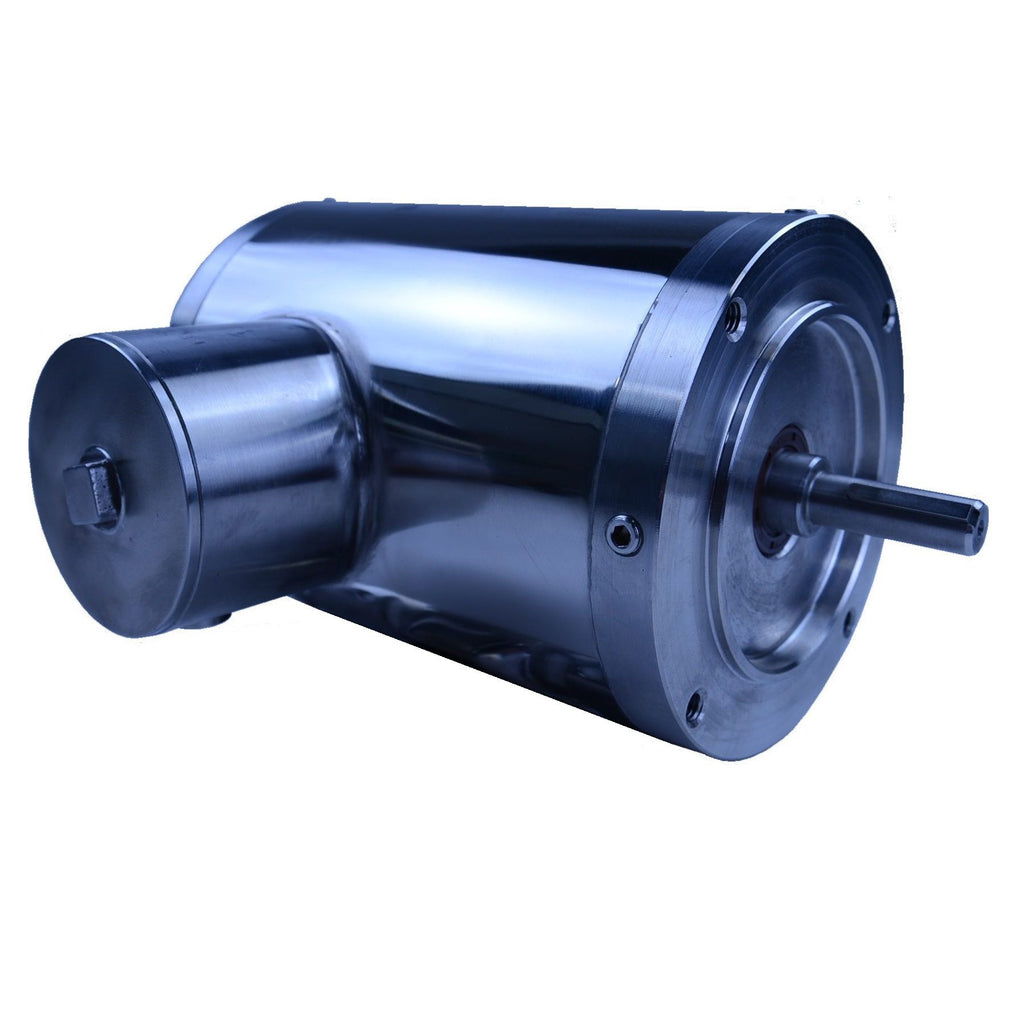

Premium Efficient Stainless Steel Motor by WorldWide Electric

Introducing the WorldWide Electric Wash-down Stainless Steel Motor, designed for superior performance and durability in demanding environments. This 0.75 HP motor operates at 3600 RPM and is suitable for three-phase applications with a voltage rating of 230/460V. Featuring a 56CRD frame and a totally enclosed non-ventilated (TENV) design, this motor is perfect for wash-down applications where moisture and corrosion resistance are essential.

Key features include:

  • Premium efficiency for reduced energy consumption
  • Stainless steel construction for enhanced durability and resistance to harsh conditions
  • C-Face round body (footless) mounting for versatile installation options
  • 1.15 service factor for reliable performance

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, which is SSPENV34-36-56CRD. If you encounter any difficulties, our team is here to help you find the perfect solution.

Category Electric Motors
Approximate Weight (lbs) 33
Degree of Protection IP69K
Duty Cycle S1
Efficiency 100% 77%
Enclosure Type TENV
FL Efficiency (%) 77.0
Frame Size 56CRD
Full Load Amps @ 460V 1.1
Horsepower 0.75
Insulation Class Class F
Locked Rotor Time (Hot) 12 seconds
Max. Ambient Temperature 40°C
Max. Elevation 3300 ft
Mounting Type C-Face Round Body (Footless)
NEMA Code Letter N
NEMA Design B
Phase Three-Phase
Poles 2
RPM 3600
Service Factor 1.15
Temperature Rise (C) 80 C
Voltage 230/460

Motor Curves
